Braided hose and fittings Parts

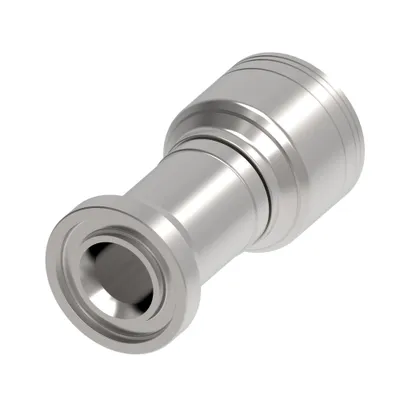

Danfoss

1A16FL16

HOSE FTG, 1A/16, C61/16, CS, STR

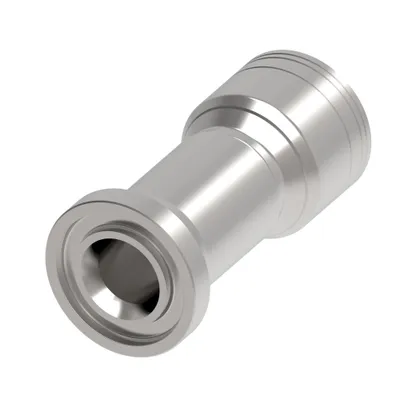

Danfoss

1A16FL12

HOSE FTG, 1A/12, C61/16, CS, STR

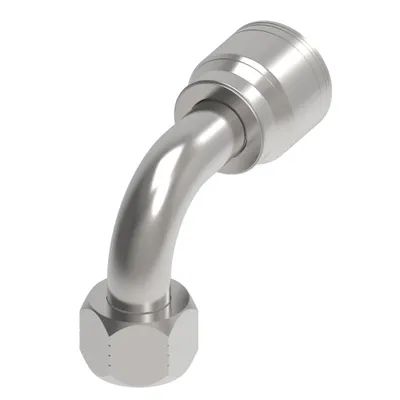

Danfoss

1A16FJB16

HOSE FTG, 1A/16, JIC-F/16, CS, 90D

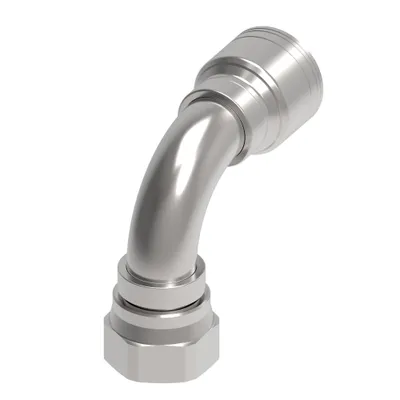

Danfoss

1A16FJB12

HOSE FTG, 1A/12, JIC-F/16, CS, 90D

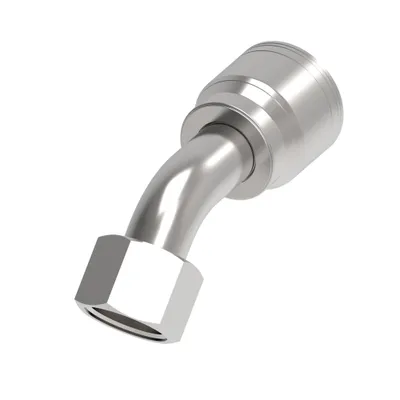

Danfoss

1A16FJA16

HOSE FTG, 1A/16, JIC-F/16, CS, 45D

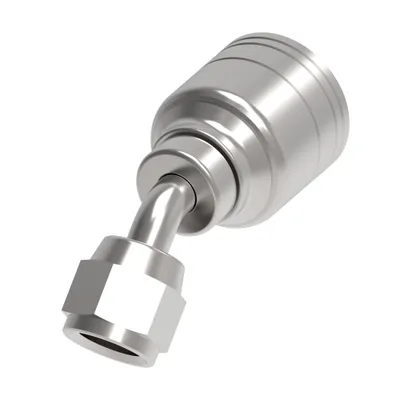

Danfoss

1A16FJA12

HOSE FTG, 1A/12, JIC-F/16, CS, 45D

Danfoss

1A16FJ16

HOSE FTG, 1A/16, JIC-F/16, CS, STR

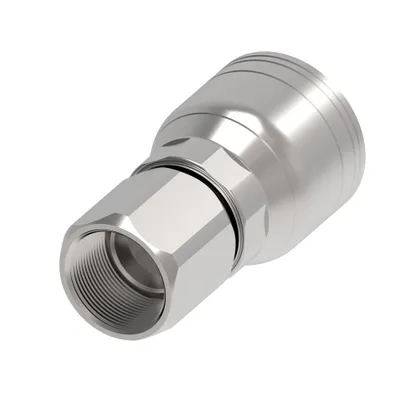

Danfoss

1A16FJ12

HOSE FTG, 1A/12, JIC-F/16, CS, STR

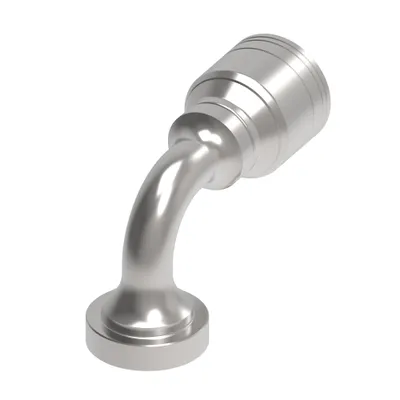

Danfoss

1A16FHB16.068

HOSE FTG, 1A/16, C62/16, CS, 90D

Danfoss

1A16FHA16

HOSE FTG, 1A/16, C62/12,-S, 90D, 28

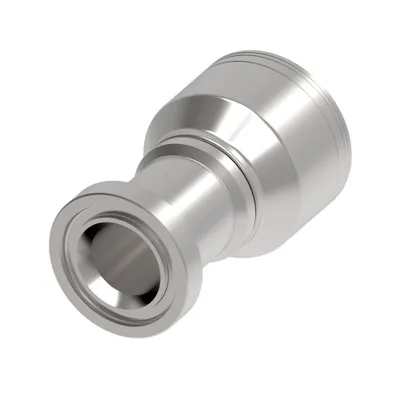

Danfoss

1A16FH16

HOSE FTG, 1A/16, C62/16, CS, STR

Danfoss

1A16EK12

HOSE FTG, 1A/12, DKH-M/16, CS, STR

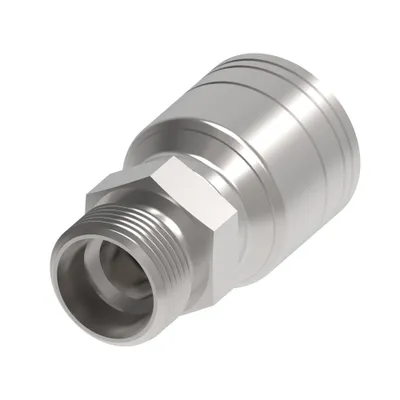

Danfoss

1A16EK10

HOSE FTG, 1A/10, DKH-M/16, CS, STR

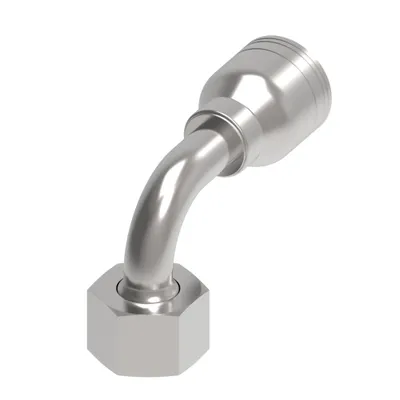

Danfoss

1A16DSB12

HOSE FTG, 1A/12, DKOH-B/16, CS, 90D

Danfoss

1A16DSB10AH

HOSE FTG, 1A/10, DKOH-B/16, CS, 90D

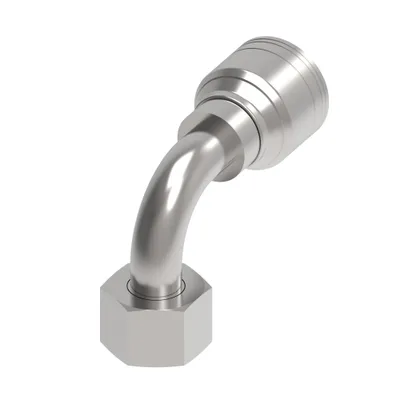

Danfoss

1A16DSB10.085

HOSE FTG, 1A/10, DKOH-B/10, CS, 90D

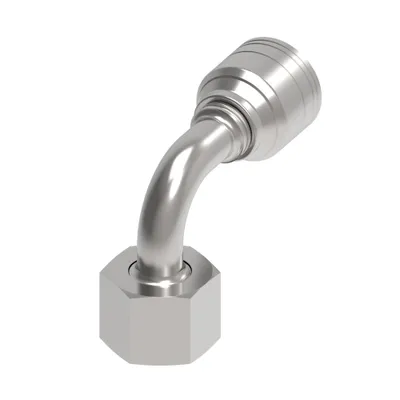

Danfoss

1A16DSB10

HOSE FTG, 1A/10, DKOH-B/16, CS, 90D

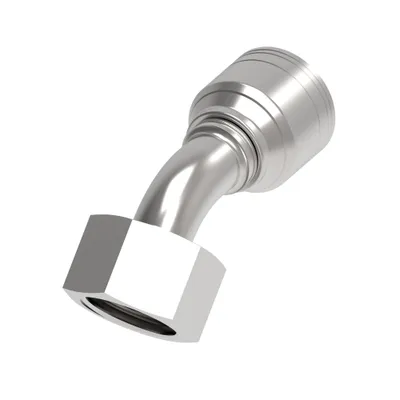

Danfoss

1A16DSA10

HOSE FTG, 1A/10, DKOH-B/16, CS, 45D

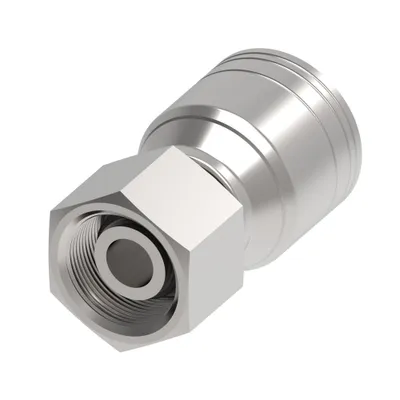

Danfoss

1A16DS12

HOSE FTG, 1A/12, DKOH-B/16, CS, STR

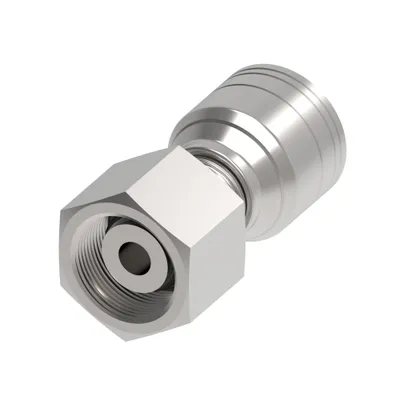

Danfoss

1A16DS10AH

HOSE FTG, 1A/10, DKOH-B/16, CS, STR

Danfoss

1A16DS10

HOSE FTG, 1A/10, DKOH-B/16, CS, STR

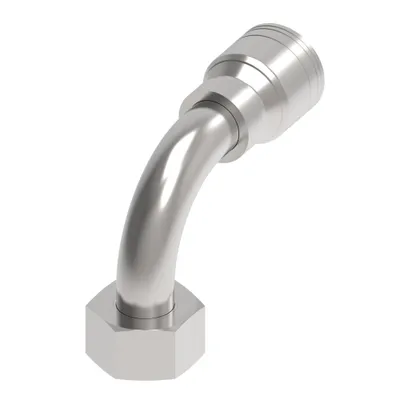

Danfoss

1A16DLB8

HOSE FTG, 1A/08, DKOL/16, CS, 90D

Danfoss

1A16DLB12

HOSE FTG, 1A/12, DKOL/16, CS, 90D

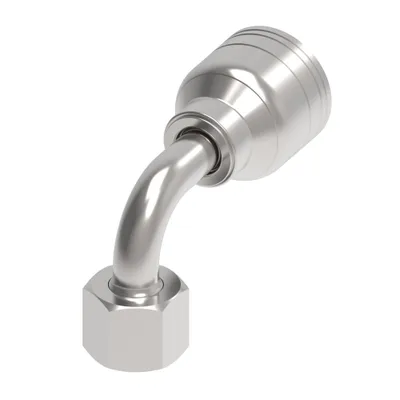

Danfoss

1A16DLB10C

HOSE FTG, 1A/10, DKOL/16, AP, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Product height in	Product height mm	Product length in	Product length mm
1A16FL16	88.200	1.940	49.276	3.490	88.646
1A16FL12	80.900	1.750	44.450	3.310	84.074
1A16FJB16	111.300	3.960	100.584	5.180	131.500
1A16FJB12	82.400	3.770	95.758	4.170	105.918
1A16FJA16	114.800	3.440	87.376	5.920	150.368
1A16FJA12	87.200	1.848	46.950	3.433	87.200
1A16FJ16	81.300	1.940	49.276	3.280	83.312
1A16FJ12	72.800	1.860	47.244	2.960	75.184
1A16FHB16.068	123.500	3.648	92.650	5.799	147.300
1A16FHA16	103.100	2.000	50.800	4.990	126.746
1A16FH16	88.800	1.941	49.300	3.496	88.800
1A16EK12	57.600	1.560	39.624	2.400	60.960
1A16EK10	62.000	1.260	32.004	2.440	61.976
1A16DSB12	89.500	3.144	79.850	4.232	107.500
1A16DSB10AH	82.000	2.740	69.596	0.620	102.870
1A16DSB10.085	82.000	4.040	102.616	3.940	100.076
1A16DSB10	82.000	2.740	69.596	3.940	100.076
1A16DSA10	87.100	2.370	60.198	4.140	105.156
1A16DS12	60.300	1.630	41.402	2.370	60.198
1A16DS10AH	66.900	1.630	41.402	2.630	66.802
1A16DS10	66.900	1.410	35.814	2.630	66.802
1A16DLB8	88.200	2.890	73.406	4.100	104.140
1A16DLB12	90.000	3.065	77.850	4.173	106.000
1A16DLB10C	86.400	2.520	64.008	4.030	102.362

Common to all listed parts

Construction Style

Crimp
