Braided hose and fittings Parts

Danfoss

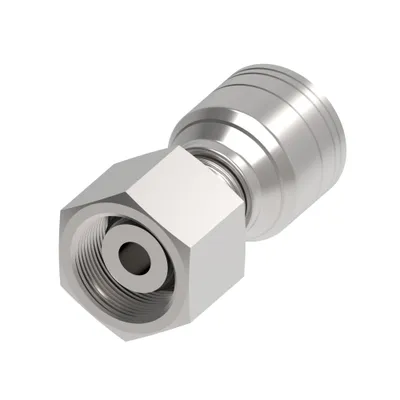

1A20DS12

HOSE FTG, 1A/12, DKOL/20, CS, STR

Danfoss

1A20DLB16AH

HOSE FTG, 1A/16, DKOL/20, CS, 90D

Danfoss

1A20DLB12AH

HOSE FTG, 1A/12, DKOL/20, CS, 90D

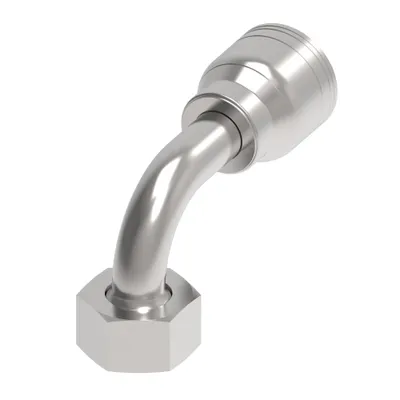

Danfoss

1A20DLB12

HOSE FTG, 1A/12, DKOL/20, CS, 90D

Danfoss

1A20DLA12AH

HOSE FTG, 1A/12, DKOL/20, CS, 45D

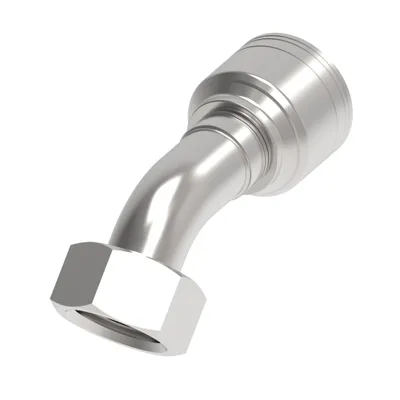

Danfoss

1A20DLA12

HOSE FTG, 1A/12, DKOL/20, CS, 45D

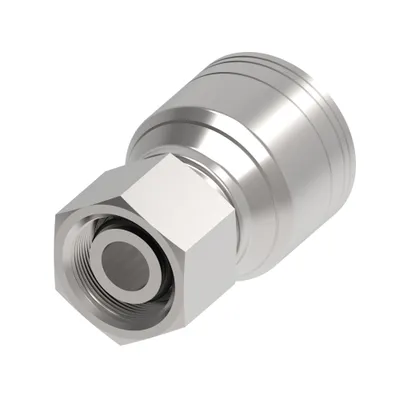

Danfoss

1A20DL16

HOSE FTG, 1A/16, DKOL/20, CS, STR

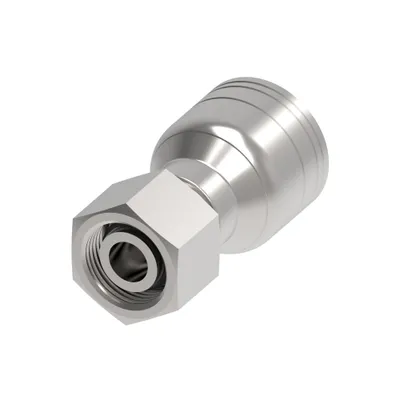

Danfoss

1A20DL12AH

HOSE FTG, 1A/12, DKOL/20, CS, STR

Danfoss

1A20DL12

HOSE FTG, 1A/12, DKOL/20, CS, STR

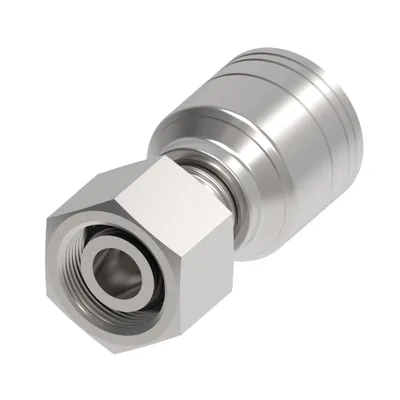

Danfoss

1A20DL10

HOSE FTG, 1A/10, DKOL/20, CS, STR

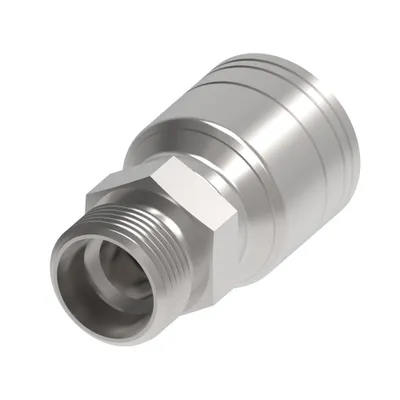

Danfoss

1A20DK12AH

HOSE FTG, 1A/12, DKL-M/20, CS, STR

Danfoss

1A20DK12

HOSE FTG, 1A/12, DKL-M/20, CS, STR

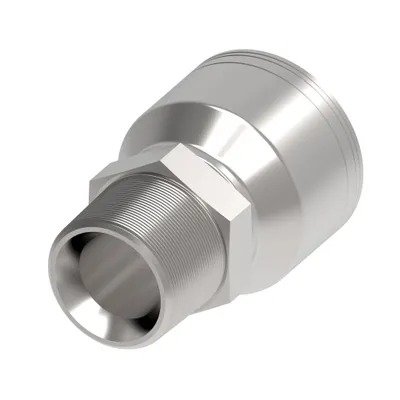

Danfoss

1A20BT20

HOSE FTG, 1A/20, BSPT-M/20, CS, STR

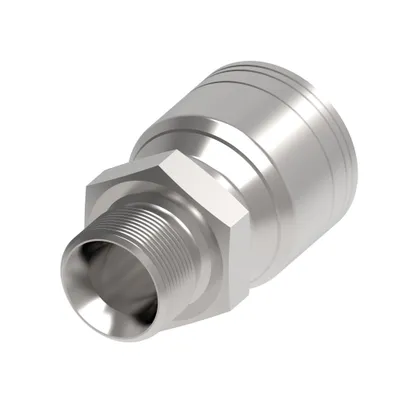

Danfoss

1A20BP20

HOSE FTG, 1A/20, BF/20, CS, STR

Danfoss

1A20BJ12

HOSE FTG, 1A/12, BANJO/20, CS, STR

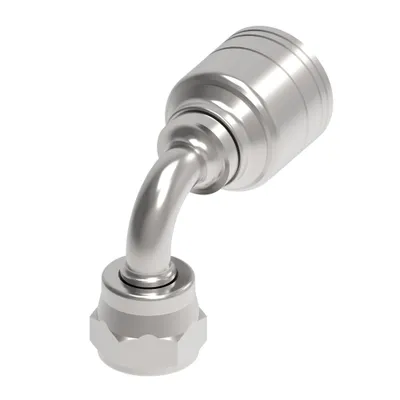

Danfoss

1A20BFB20

HOSE FTG, 1A/20, BF/20, CS, 90D

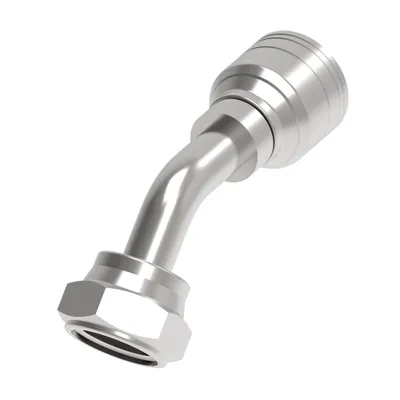

Danfoss

1A20BFA20

HOSE FTG, 1A/20, BF/20, CS, 45D

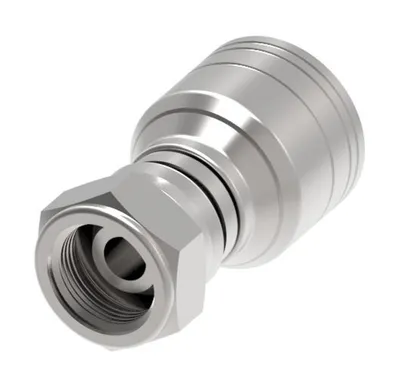

Danfoss

1A20BF20

HOSE FTG, 1A/20, BF/20, CS, STR

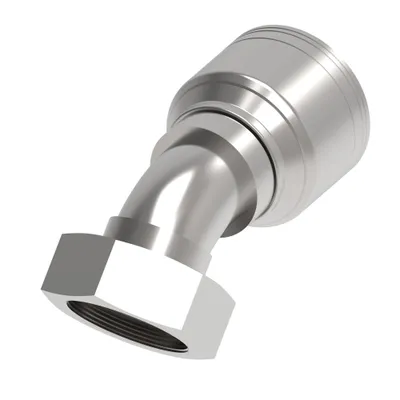

Danfoss

1A20ADA12

HOSE FTG, 1A/12, AD/20, CS, 45D

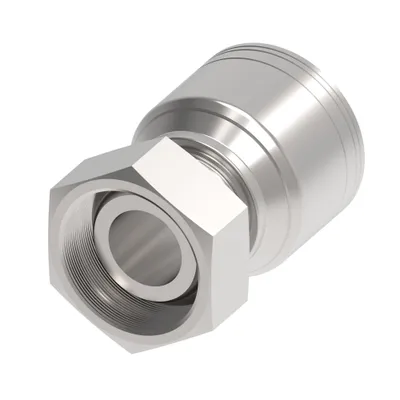

Danfoss

1A20AD12

HOSE FTG, 1A/12, AD/20, CS, STR

Danfoss

1A18VA6

HOSE FTG, 1A/06, FMVAL/18, CS, STR

Danfoss

1A18VA5

HOSE FTG, 1A/05, FMVAL/18, CS, STR

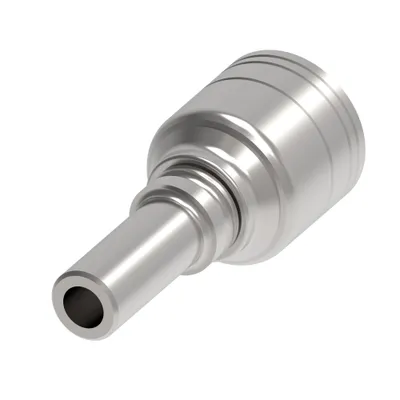

Danfoss

1A18LM10

HOSE FTG, 1A/10, STPIPE/18, CS, STR

Danfoss

1A17GG8

HOSE FTG, 1A/08, AK/08, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	Hose cut off factor IN	Hose cut off factor MM	Product length in	Product length mm
1A20DS12	2.830	1.650	41.800	2.830	71.882
1A20DLB16AH	3.600	2.240	57.000	4.300	109.220
1A20DLB12AH	3.720	2.530	64.300	4.540	115.316
1A20DLB12	3.720	2.530	64.300	4.430	112.522
1A20DLA12AH	3.970	2.780	70.600	4.790	121.666
1A20DLA12	3.970	2.780	70.600	5.540	140.176
1A20DL16	2.550	1.190	30.300	2.547	64.700
1A20DL12AH	2.460	1.270	32.300	2.461	62.500
1A20DL12	2.460	1.270	32.300	2.480	62.992
1A20DL10	2.440	1.280	32.600	2.441	62.000
1A20DK12AH	2.440	1.250	31.800	2.440	61.976
1A20DK12	2.440	1.250	31.800	2.440	61.976
1A20BT20	3.790	2.060	52.200	3.790	96.266
1A20BP20	3.390	1.660	42.200	3.390	86.106
1A20BJ12	3.760	2.570	65.300	4.660	118.364
1A20BFB20	5.760	4.020	102.200	6.740	171.196
1A20BFA20	6.040	4.310	109.400	7.020	178.308
1A20BF20	2.900	1.170	29.600	2.900	73.660
1A20ADA12	3.620	2.430	61.700	4.350	110.490
1A20AD12	2.320	1.130	28.800	2.320	58.928
1A18VA6	2.106	1.110	28.200	2.100	53.340
1A18VA5	2.000	1.066	27.100	2.008	51.000
1A18LM10	2.720	1.560	39.600	2.720	69.088
1A17GG8	2.270	1.102	28.000	2.272	57.700

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
Thread sealant	No
