Braided hose and fittings Parts

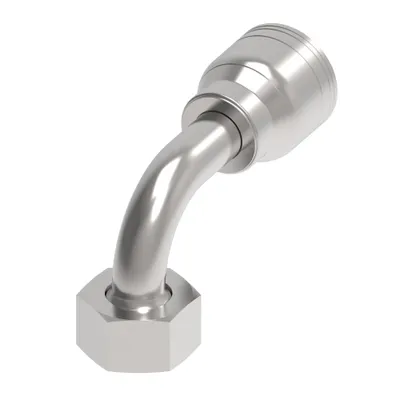

Danfoss

1A16DLB10AH

HOSE FTG, 1A/10, DKOL/16, CS, 90D

Danfoss

1A16DLB10

HOSE FTG, 1A/10, DKOL/16, CS, 90D

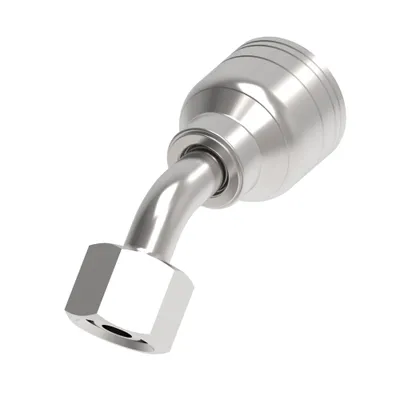

Danfoss

1A16DLA10AH

HOSE FTG, 1A/10, DKOL/16, CS, 45D

Danfoss

1A16DLA10

HOSE FTG, 1A/10, DKOL/16, CS, 45D

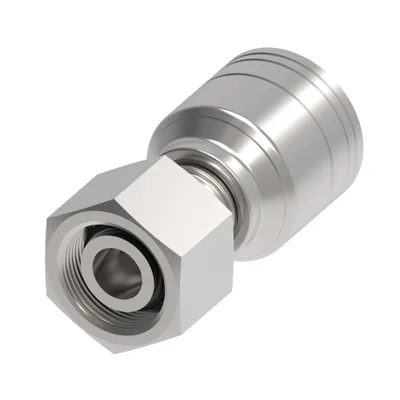

Danfoss

1A16DL8

HOSE FTG, 1A/08, DKOL/16, CS, STR

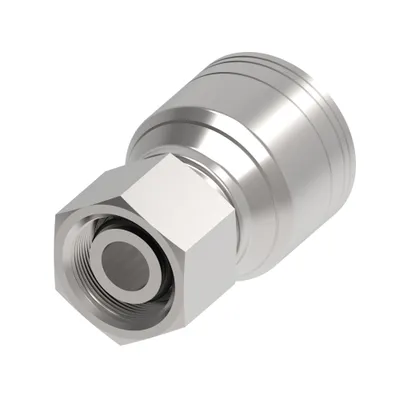

Danfoss

1A16DL12

HOSE FTG, 1A/12, DKOL/16, CS, STR

Danfoss

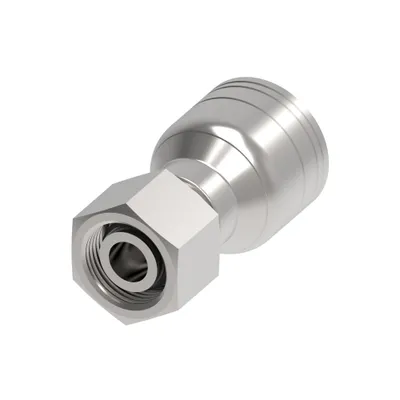

1A16DL10AH

HOSE FTG, 1A/10, DKOL/16, CS, STR

Danfoss

1A16DL10

HOSE FTG, 1A/10, DKOL/16, CS, STR

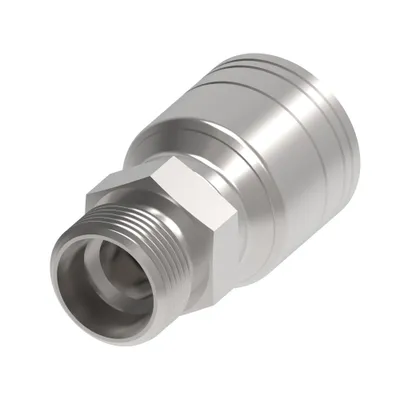

Danfoss

1A16DK8

HOSE FTG, 1A/8, DKL-M/16,-S

Danfoss

1A16DK10AH

HOSE FTG, 1A/10, DKL-M/16, CS, STR

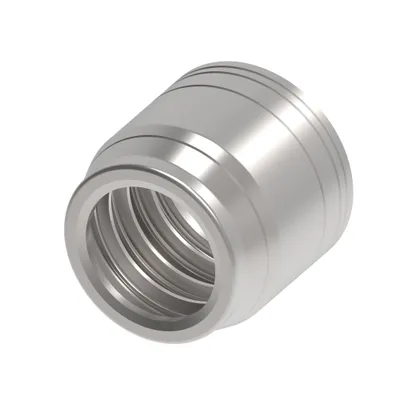

Danfoss

1A16C

SOCKET-PERM, 1A/16, AP

Danfoss

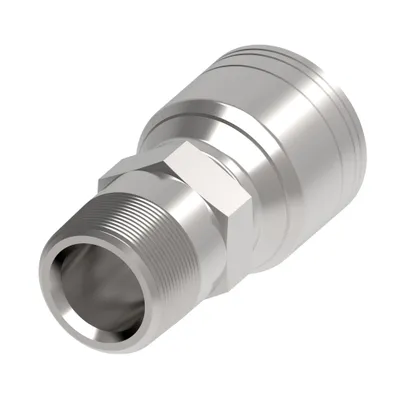

1A16BT16

HOSE FTG, 1A/16, BSPT-M/16, CS, STR

Danfoss

1A16BP16

HOSE FTG, 1A/16, BSPJ/16, CS, STR

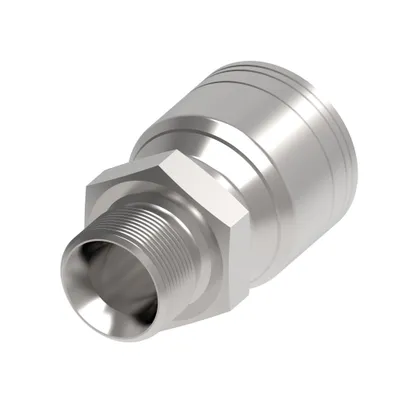

Danfoss

1A16BP12

HOSE FTG, 1A/12, BSPJ/16, CS, STR

Danfoss

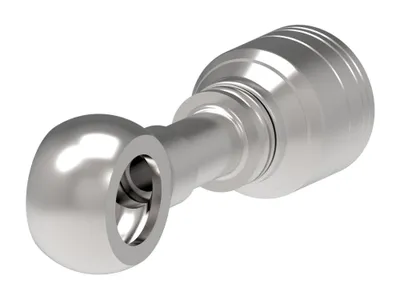

1A16BJ10

HOSE FTG, 1A/10, BANJO/16, CS, STR

Danfoss

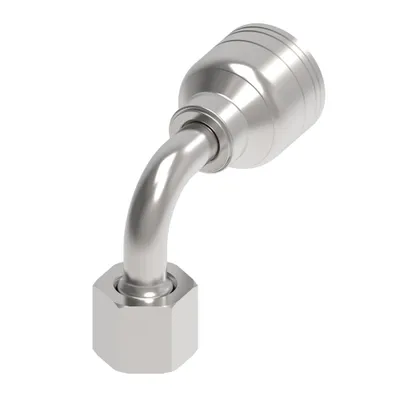

1A16BFB16

HOSE FTG, 1A/16, BF/16, CS, 90D

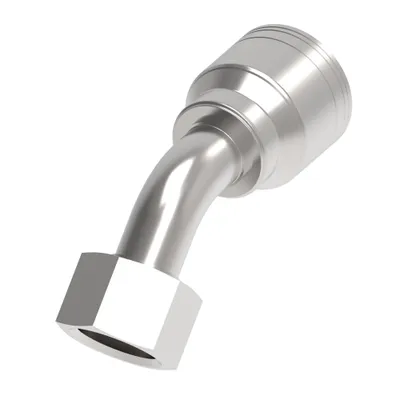

Danfoss

1A16BFA16

HOSE FTG, 1A/16, BF/16, CS, 45D

Danfoss

1A16BF16

HOSE FTG, 1A/16, BF/16, CS, STR

Danfoss

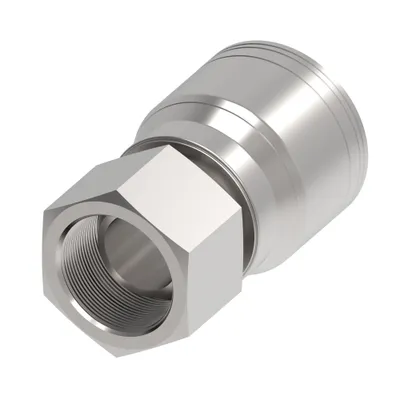

1A16BF12

HOSE FTG, 1A/12, BF/16, CS, STR

Danfoss

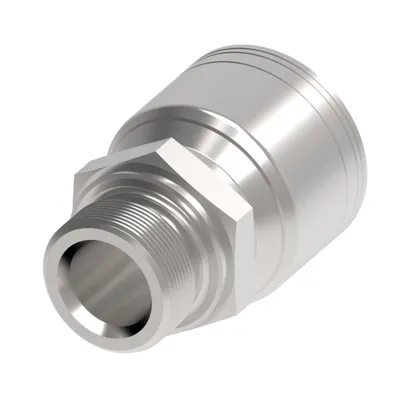

1A16BB16

HOSE FTG, 1A/16, BSP-M/16, CS, STR

Danfoss

1A16AD10

HOSE FTG, 1A/10, AK/16, CS, STR

Danfoss

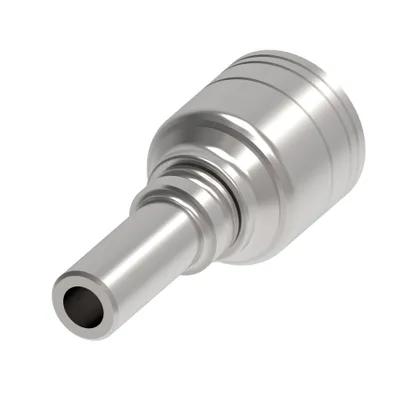

1A15LM8

HOSE FTG, 1A/08, STPIPE/15, CS, STR

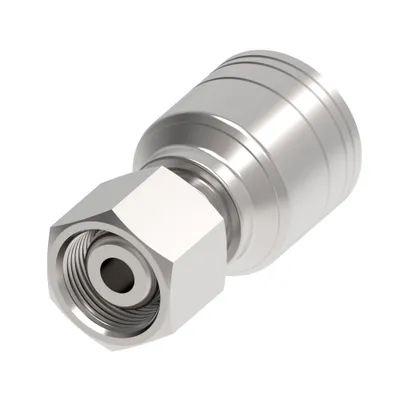

Danfoss

1A15GM8

HOSE FTG, 1A/08, GM/15, CS, STR

Danfoss

1A14GM6

HOSE FTG, 1A/06, GAZ-M/14, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Hose cut off factor IN	Product height mm	Product length in	Product length mm
1A16DLB10AH	86.400	2.260	64.520	4.032	102.400
1A16DLB10	86.400	2.260	64.516	4.020	102.108
1A16DLA10AH	91.300	2.440	58.166	4.320	109.728
1A16DLA10	91.300	2.440	74.930	4.980	126.492
1A16DL8	59.600	1.180	31.750	2.350	59.690
1A16DL12	58.800	1.130	39.624	2.310	58.674
1A16DL10AH	59.200	1.170	35.200	2.331	59.200
1A16DL10	59.200	1.170	35.306	2.330	59.182
1A16DK8	55.600	1.250	27.000	2.145	54.500
1A16DK10AH	56.000	1.050	35.306	2.200	55.880
1A16C	41.300	—	49.276	1.630	41.402
1A16BT16	81.200	1.840	49.276	3.200	81.280
1A16BP16	70.900	1.440	49.276	2.790	70.866
1A16BP12	66.700	1.440	40.894	2.630	66.802
1A16BJ10	92.500	2.480	39.116	3.640	92.456
1A16BFB16	107.900	2.890	99.310	5.050	128.270
1A16BFA16	126.800	3.640	108.712	6.990	177.546
1A16BF16	62.000	1.190	49.276	3.000	76.200
1A16BF12	57.300	1.070	40.894	2.260	57.404
1A16BB16	73.200	1.530	49.300	2.882	73.200
1A16AD10	58.700	1.150	36.830	2.310	58.674
1A15LM8	66.900	1.460	30.988	2.630	66.802
1A15GM8	55.200	1.004	31.000	2.173	55.200
1A14GM6	51.300	1.023	27.100	2.020	51.300

Common to all listed parts

Construction Style

Crimp
