Braided hose and fittings Parts

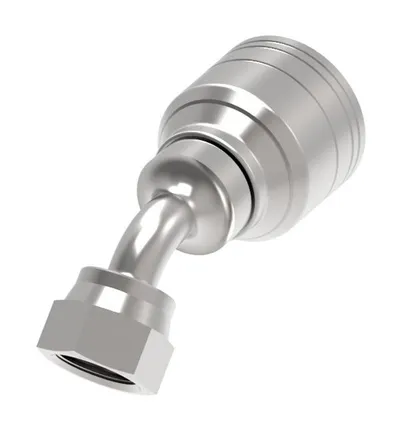

Danfoss

1A20FRA20

HOSE FTG, 1A/20, ORS-F/20, CS, 45D

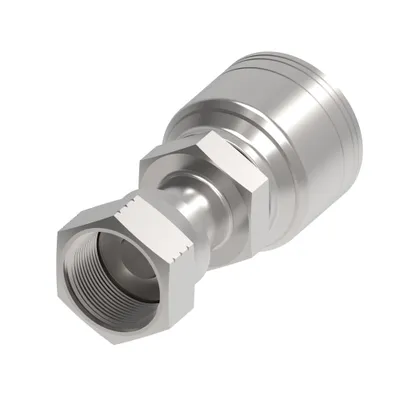

Danfoss

1A20FR20

HOSE FTG, 1A/20, ORS-F/20, CS, STR

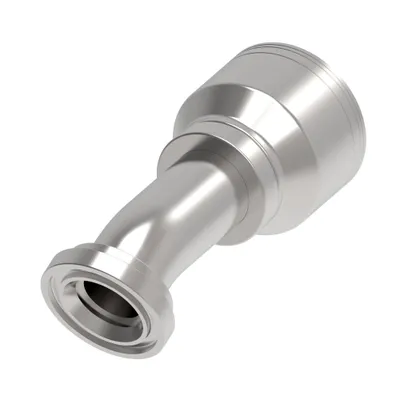

Danfoss

1A20FLD20

HOSE FTG, 1A/20, C61/20, CS, 22.5D

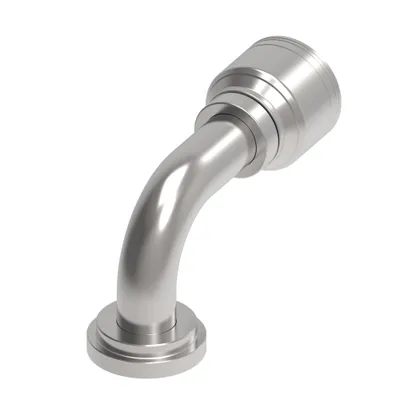

Danfoss

1A20FLB24

HOSE FTG, 1A/24, C61/20, CS, 90D

Danfoss

1A20FLB20.130

HOSE FTG, 1A/20, C61/20, CS, 90D

Danfoss

1A20FLB20

HOSE FTG, 1A/20, C61/20, CS, 90D

Danfoss

1A20FLB16

HOSE FTG, 1A/16, C61/20, CS, 90D

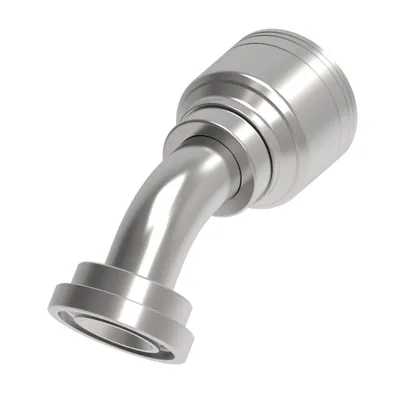

Danfoss

1A20FLA24

HOSE FTG, 1A/24, C61/20, CS, 45D

Danfoss

1A20FLA16

HOSE FTG, 1A/16, C61/20, CS, 45D

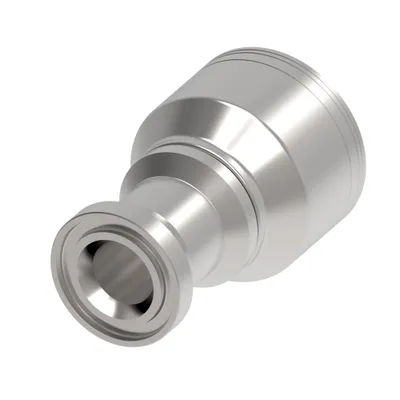

Danfoss

1A20FL24

HOSE FTG, 1A/24, C61/20, CS, STR

Danfoss

1A20FL20

HOSE FTG, 1A/20, C61/20, CS, STR

Danfoss

1A20FL16

HOSE FTG, 1A/16, C61/20, CS, STR

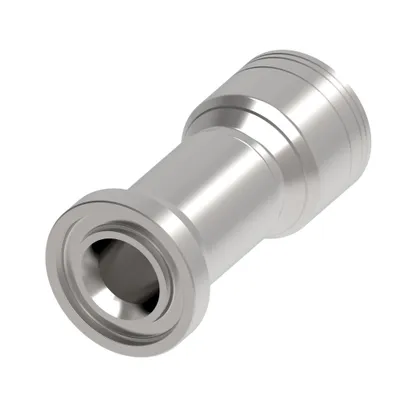

Danfoss

1A20FL12

HOSE FTG, 1A/12, C61/20, CS, STR

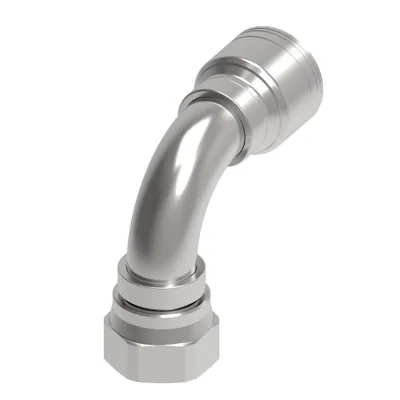

Danfoss

1A20FJB20

HOSE FTG, 1A/20, JIC-F/20, CS, 90D

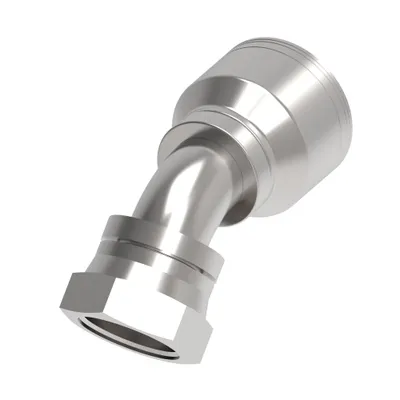

Danfoss

1A20FJA20

HOSE FTG, 1A/20, JIC-F/20, CS, 45D

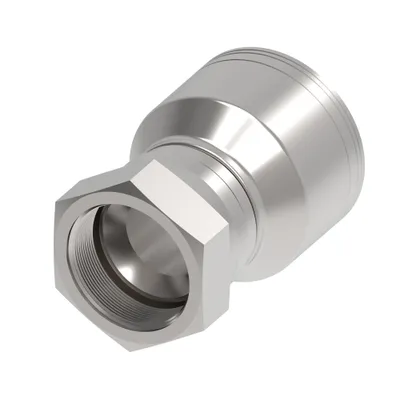

Danfoss

1A20FJ20

HOSE FTG, 1A/20, JIC-F/20, CS, STR

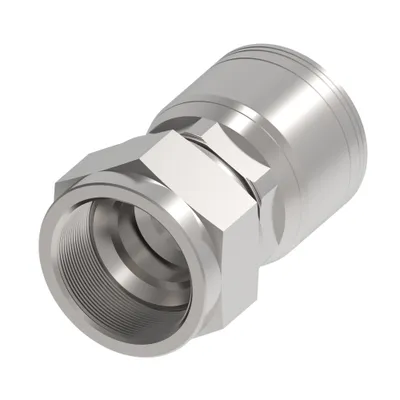

Danfoss

1A20FJ16

HOSE FTG, 1A/16, JIC-F/20, CS, STR

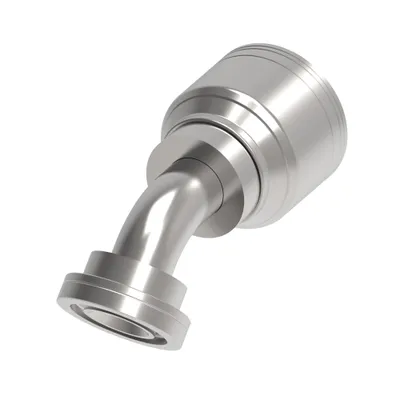

Danfoss

1A20FHA20

HOSE FTG, 1A/20, C62/20, CS, 45D

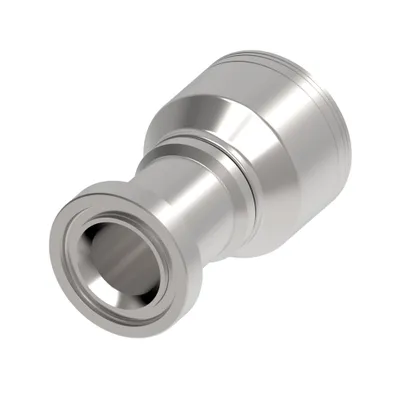

Danfoss

1A20FH20

HOSE FTG, 1A/20, C62/20, CS, STR

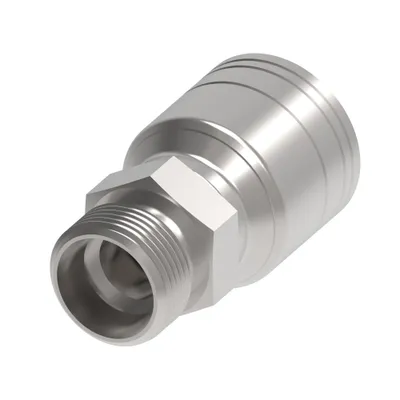

Danfoss

1A20EK12

HOSE FTG, 1A/12, DKOH-B/20, CS, STR

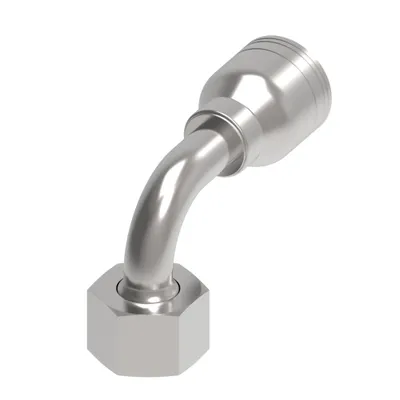

Danfoss

1A20DSB16

HOSE FTG, 1A/16, DKOH-B/20, CS, 90D

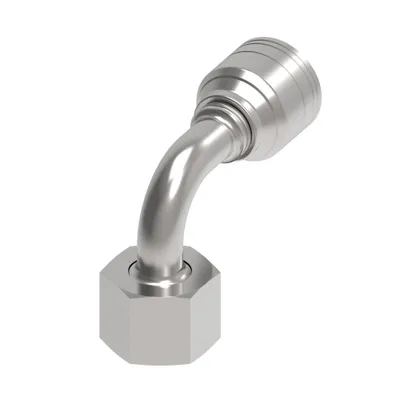

Danfoss

1A20DSB12

HOSE FTG, 1A/12, DKOH-B/20, CS, 90D

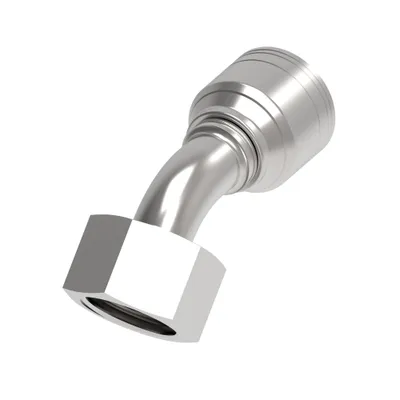

Danfoss

1A20DSA12

HOSE FTG, 1A/12, DKOH-B/20, CS, 45D

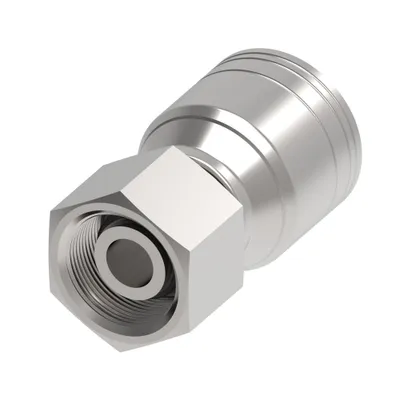

Danfoss

1A20DS16

HOSE FTG, 1A/16, DKOH-B/20, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Hose cut off factor IN	Hose cut off factor MM	Product length in	Product length mm
1A20FRA20	125.100	3.370	85.600	6.640	168.656
1A20FR20	98.800	2.330	59.300	4.470	113.538
1A20FLD20	136.900	3.830	97.400	6.560	166.620
1A20FLB24	135.400	3.610	91.700	6.430	163.322
1A20FLB20.130	117.700	2.900	73.700	5.630	143.002
1A20FLB20	130.100	3.570	90.600	6.300	160.020
1A20FLB16	122.700	3.500	88.900	5.860	148.844
1A20FLA24	112.800	2.720	69.100	4.441	112.800
1A20FLA16	121.500	3.450	87.700	5.870	149.098
1A20FL24	108.500	2.550	64.800	4.370	110.998
1A20FL20	103.300	2.510	63.800	4.240	107.699
1A20FL16	95.800	2.440	62.000	3.800	96.520
1A20FL12	88.600	2.420	61.500	3.600	91.440
1A20FJB20	103.500	2.520	64.000	5.390	136.906
1A20FJA20	108.400	2.710	68.900	6.050	153.670
1A20FJ20	87.300	1.880	47.800	3.440	87.376
1A20FJ16	83.700	2.020	51.400	3.295	83.700
1A20FHA20	139.200	3.750	95.200	6.850	173.990
1A20FH20	103.300	2.510	63.800	4.240	107.696
1A20EK12	65.500	1.390	35.300	2.580	65.532
1A20DSB16	96.500	2.440	62.100	4.705	119.500
1A20DSB12	93.000	2.470	62.800	1.070	115.824
1A20DSA12	107.400	3.040	77.200	5.130	130.302
1A20DS16	65.700	1.230	31.300	2.587	65.700

Common to all listed parts

Construction Style	Crimp
End size 1	-20
Finish plating	Dura-Kote
Product material	Carbon steel
Series	1A/Z Series
Working temperature min C	-40
Working temperature min F	-40
