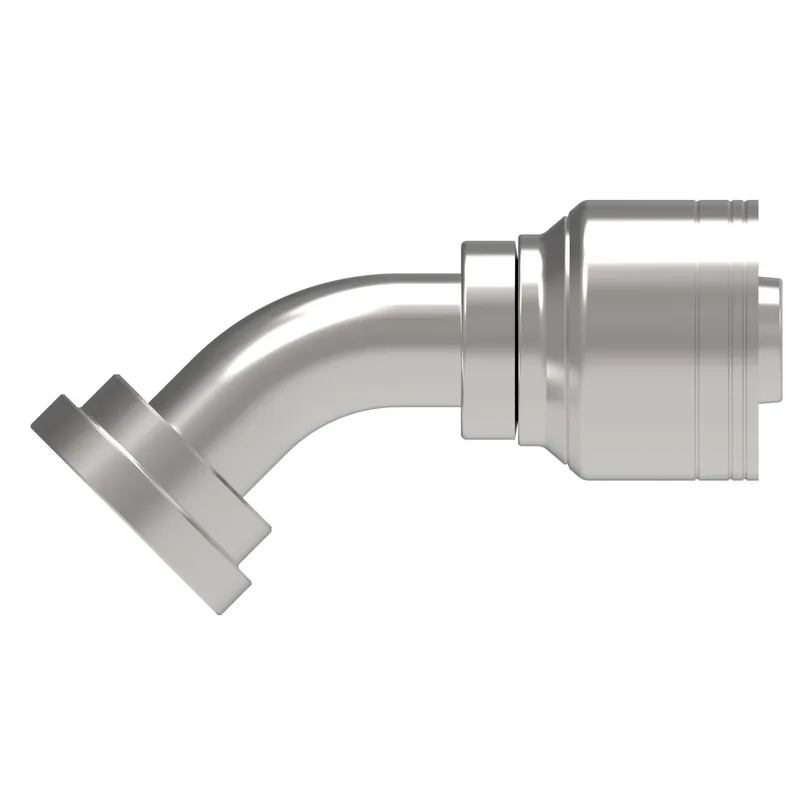

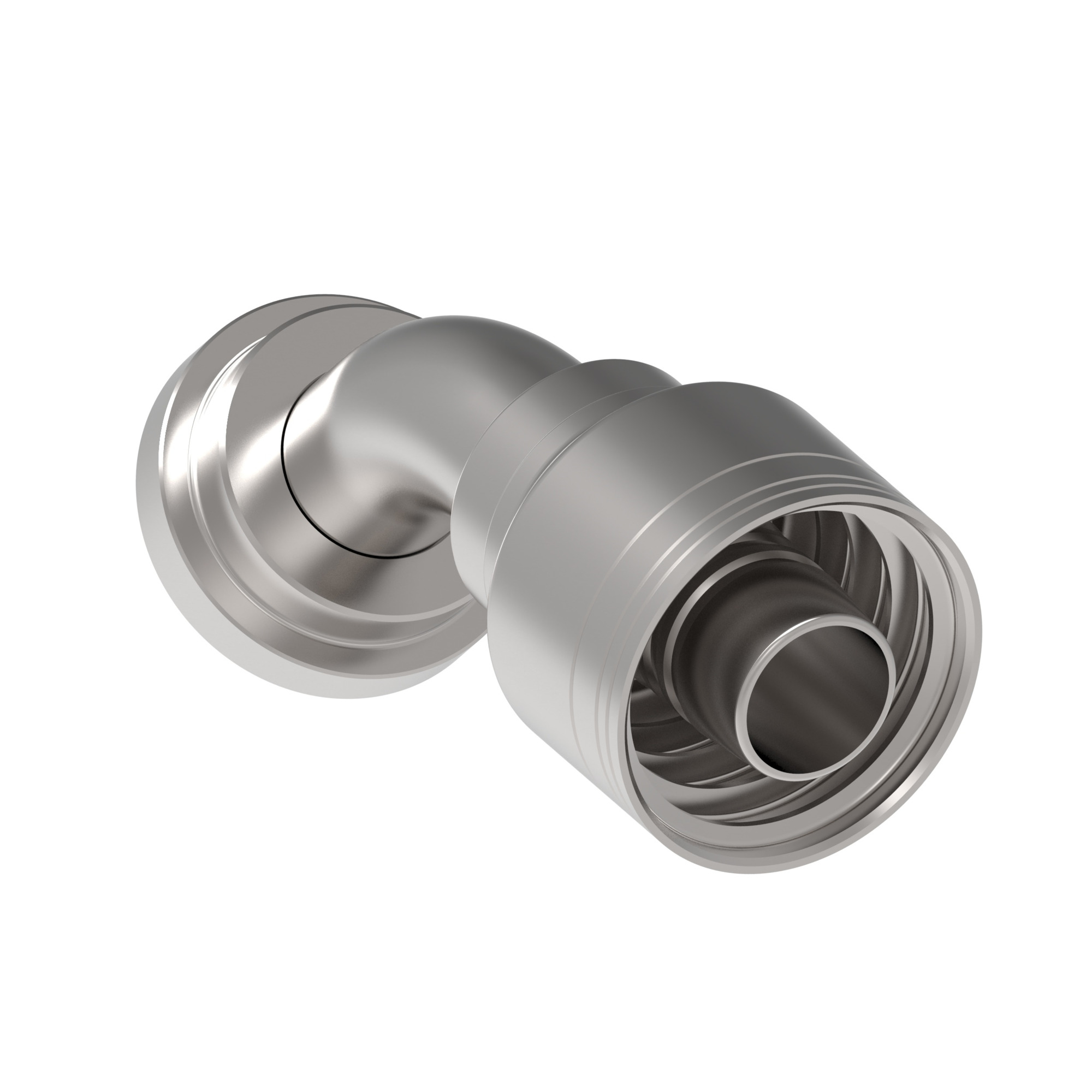

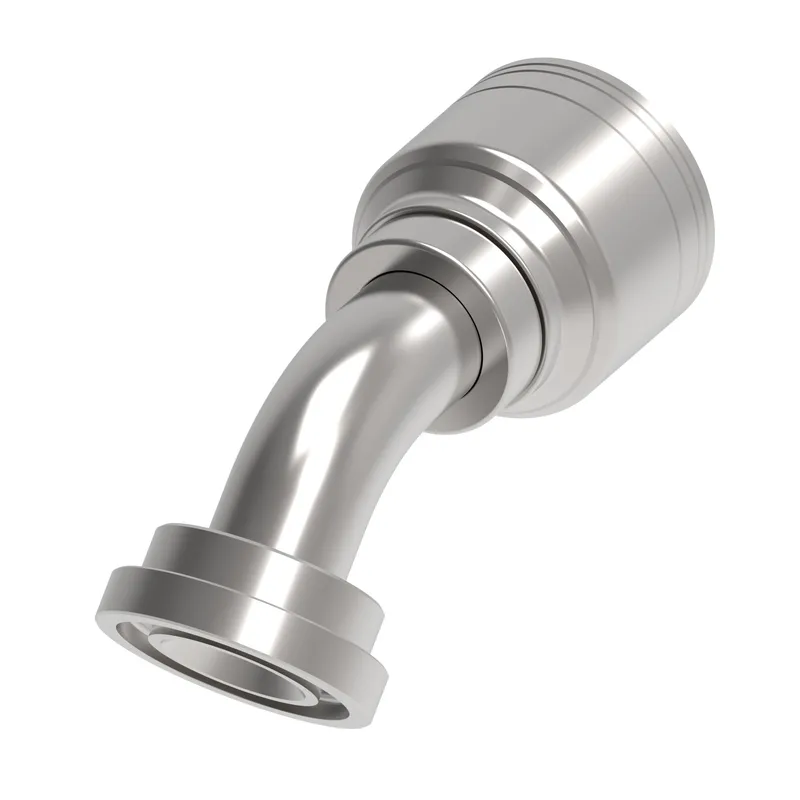

HOSE FTG, 1A/16, C61/16, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1A16FLA16 be shipped?
1A16FLA16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1A16FLA16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1A16FLA16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A16FLA16, subject to availability and destination.
Danfoss HOSE FTG, 1A/16, C61/16, CS, 45D, manufacturer part number 1A16FLA16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146123824 |
| A dimension IN | 4.330 |
| A dimension MM | 109.900 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible tube OD IN | 1.00 |
| Compatible tube OD MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 1.060 |
| Drop dimension MM | 26.90 |
| End size 1 | -16 |
| End Type 1 | Split flange code 61 |
| Finish plating | Zinc nickel |
| Hose cut off factor IN | 2.990 |
| Hose cut off factor MM | 76.100 |
| Hose size | -16 |
| Inside diameter IN | 0.760 |
| Inside diameter MM | 19.300 |
| Product height in | 2.900 |
| Product height mm | 73.660 |
| Product length in | 5.210 |
| Product length mm | 132.334 |
| Product material | Carbon steel |
| Product width in | 1.940 |
| Product width mm | 49.276 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Tube OD 1 IN | 1.000 |
| Tube OD 1 MM | 25.400 |
| Working pressure max BAR | 345.00 |
| Working pressure max PSI | 5000.00 |
| Working temperature max C | 149 |
| Working temperature max F | 300 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
