Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension MM | Hose cut off factor IN | Hose cut off factor MM | Product length in | Product length mm |
|---|---|---|---|---|---|

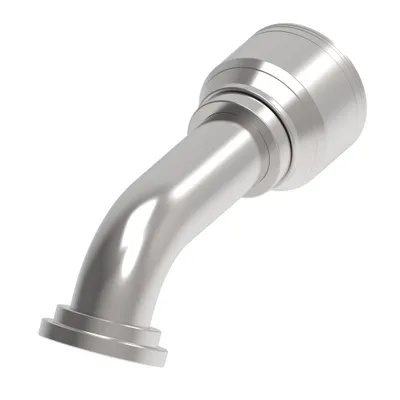

| 1A24FLG24 | 187.100 | 5.645 | 143.400 | 8.550 | 217.170 |
| 1A24FLB24 | 154.300 | 4.350 | 110.600 | 7.350 | 186.690 |

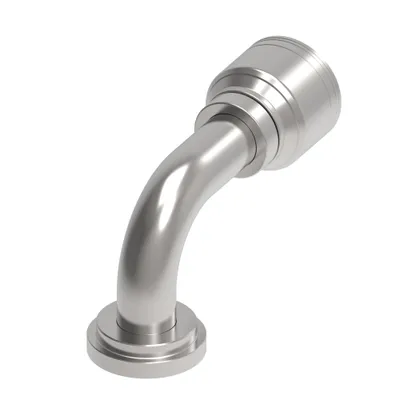

| 1A24FLB20 | 148.900 | 4.310 | 109.400 | 7.220 | 183.388 |
| 1A24FLB16 | 141.500 | 4.240 | 107.700 | 6.650 | 168.910 |
| 1A24FLA32 | 153.200 | 4.210 | 107.000 | 7.450 | 189.230 |

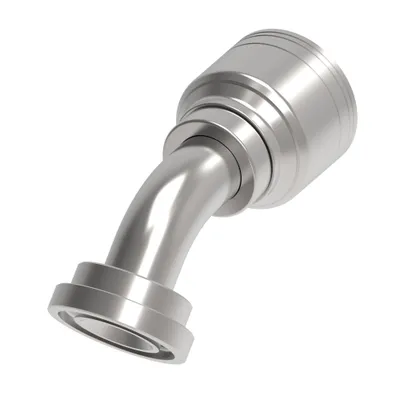

| 1A24FLA24 | 151.600 | 4.250 | 107.900 | 7.250 | 184.150 |

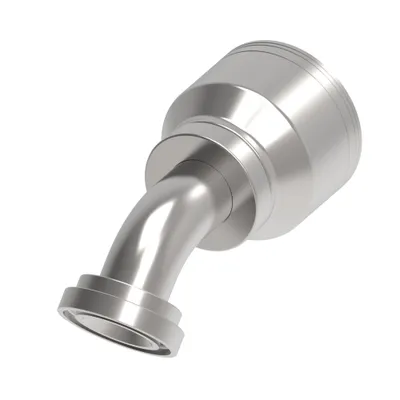

| 1A24FLA20 | 146.200 | 4.200 | 106.700 | 7.110 | 180.594 |

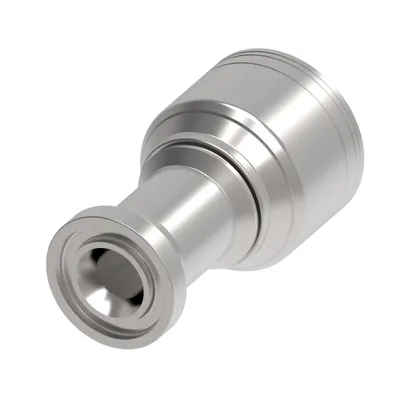

| 1A24FL24 | 109.200 | 2.580 | 65.500 | 4.400 | 111.760 |
| 1A24FL16 | 96.600 | 2.470 | 62.800 | 3.800 | 96.520 |

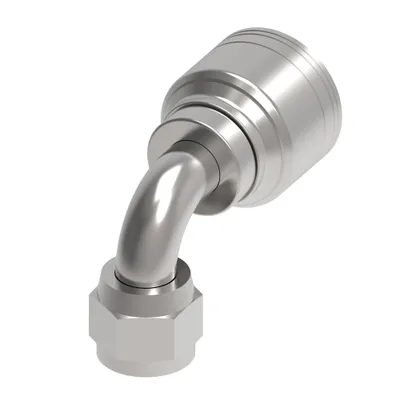

| 1A24FJB24 | 123.900 | 3.060 | 77.600 | 6.060 | 153.924 |

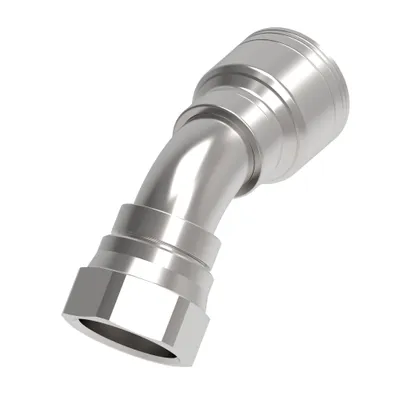

| 1A24FJA24 | 121.600 | 3.070 | 77.900 | 6.433 | 163.400 |

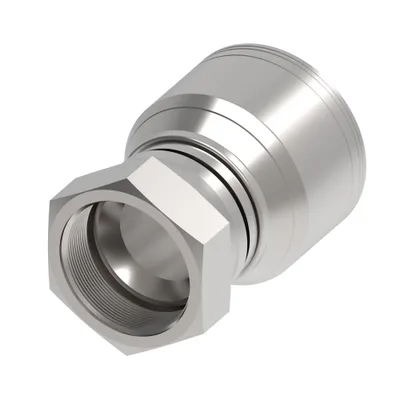

| 1A24FJ24 | 96.400 | 2.070 | 52.700 | 3.795 | 96.400 |

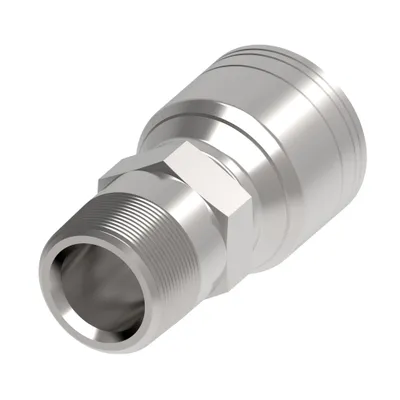

| 1A24BT24 | 100.800 | 2.150 | 54.500 | 3.969 | 100.800 |

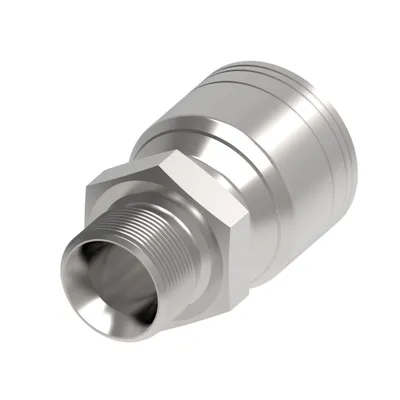

| 1A24BP24 | 92.600 | 1.820 | 46.300 | 3.646 | 92.600 |

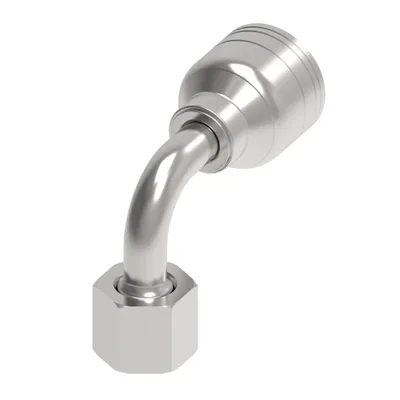

| 1A24BFB24 | 164.000 | 4.630 | 117.700 | 7.539 | 191.500 |

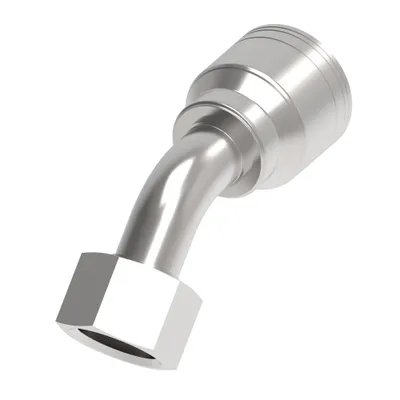

| 1A24BFA24 | 172.900 | 4.980 | 126.600 | 6.807 | 172.900 |

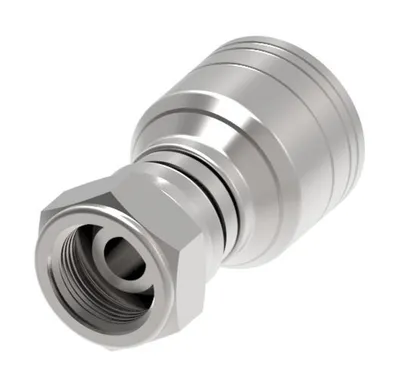

| 1A24BF24 | 81.900 | 1.400 | 35.600 | 3.228 | 82.000 |

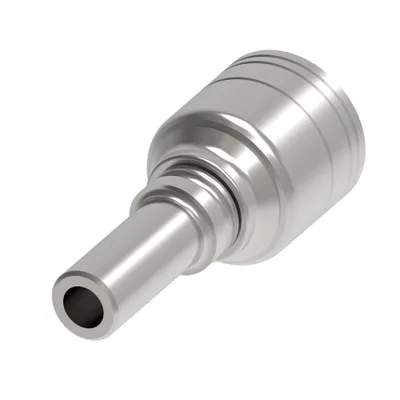

| 1A22LM12 | 71.000 | 1.610 | 40.800 | 2.800 | 71.120 |

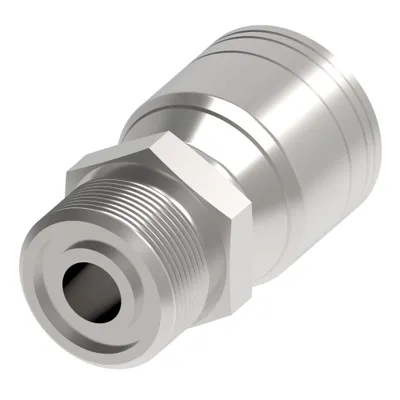

| 1A21MG10 | 58.900 | 1.161 | 29.500 | 2.319 | 58.900 |

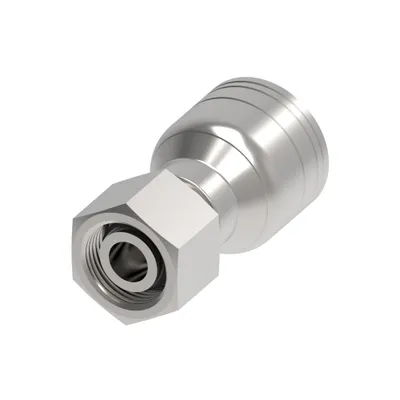

| 1A21GG10 | 61.600 | 1.268 | 32.200 | 2.425 | 61.600 |

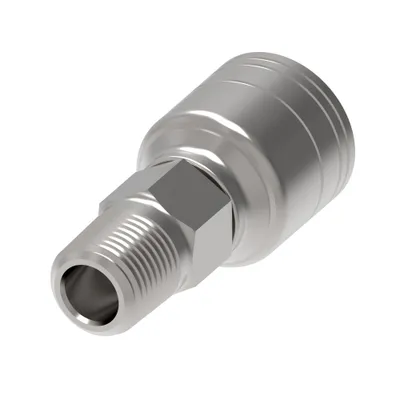

| 1A20MP20 | 89.400 | 1.790 | 45.400 | 3.520 | 89.408 |

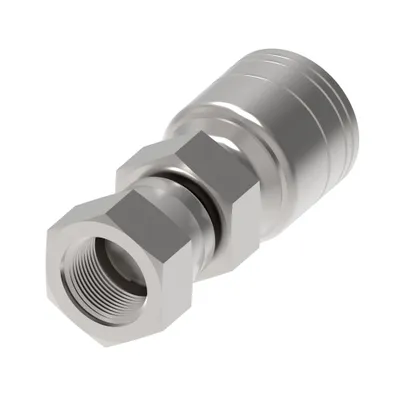

| 1A20KF20 | 106.500 | 2.640 | 67.000 | 4.240 | 107.696 |

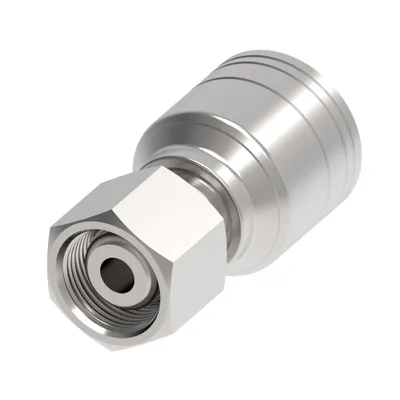

| 1A20GM10 | 57.600 | 1.110 | 28.200 | 2.268 | 57.600 |

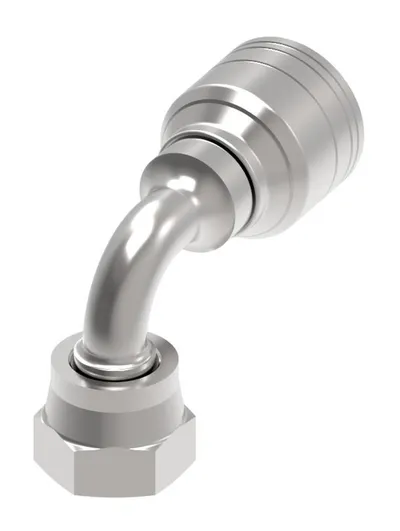

| 1A20FRB20 | 130.100 | 3.570 | 90.060 | 6.280 | 159.512 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
| Series | 1A/Z Series |
