Danfoss 1A2BF3

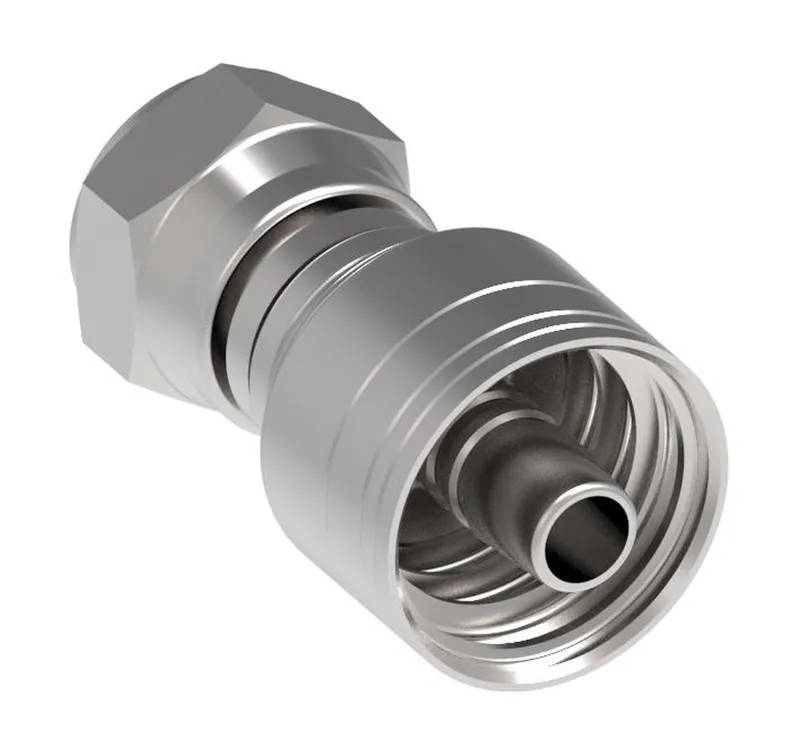

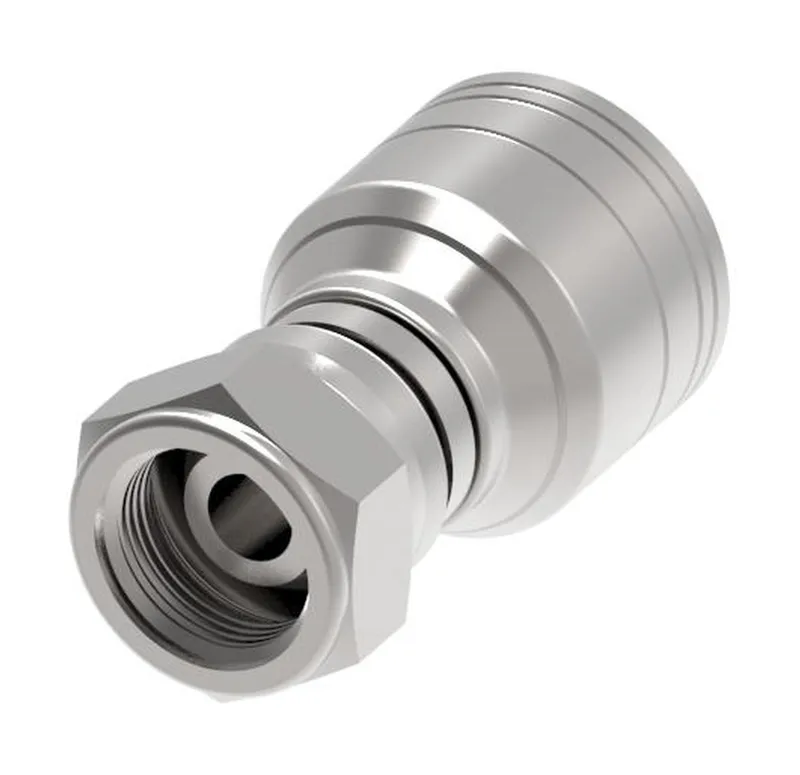

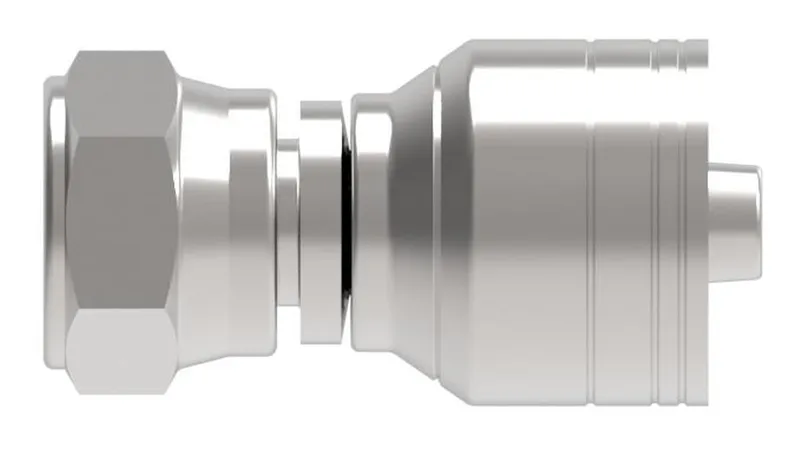

HOSE FTG, 1A/03, BF/02, CS, STR

MPN: 1A2BF3
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1A2BF3?

Danfoss HOSE FTG, 1A/03, BF/02, CS, STR, manufacturer part number 1A2BF3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.310
A dimension MM	33.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.190
Compatible hose ID MM	4.800
Construction Style	Crimp
End connection torque	13-15 lb-ft(18-20 Nm)
End size 1	-2
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hose cut off factor IN	0.620
Hose cut off factor MM	15.800
Hose size	-3
Inside diameter IN	0.100
Inside diameter MM	2.500
Product height in	0.721
Product height mm	18.300
Product length in	1.631
Product length mm	41.430
Product material	Carbon steel
Product width in	0.721
Product width mm	18.3
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1/8
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-46
Working temperature min F	-50
