Braided hose and fittings Parts

Danfoss

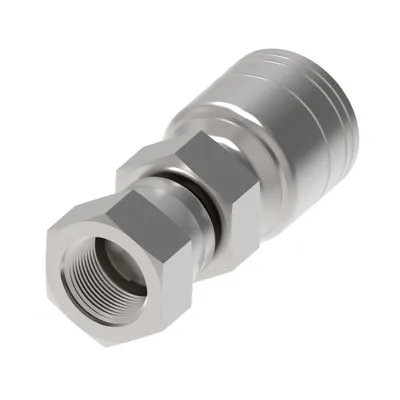

1A6KF6

HOSE FTG, 1A/06, KSF/06, CS, STR

Danfoss

1A6JM6

HOSE FTG, 1A/06, JIS-M/06, CS, STR

Danfoss

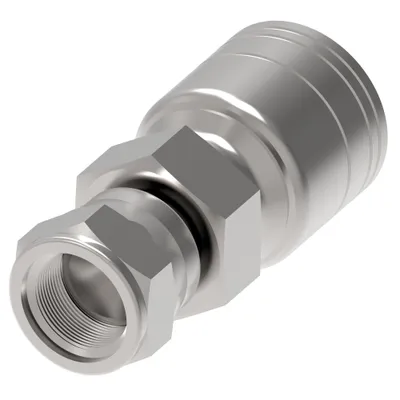

1A6JF6

HOSE FTG, 1A/06, KSF/06, CS, STR

Danfoss

1A6FRC6

HOSE FTG, 1A/06, ORS-F/06, CS, 90D

Danfoss

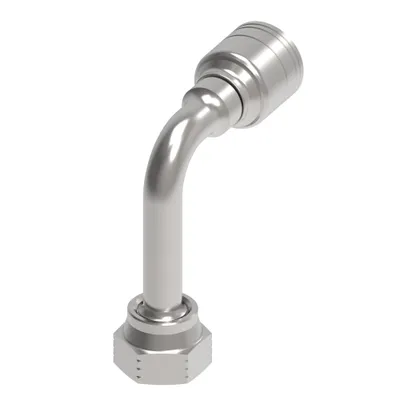

1A6FRC4

HOSE FTG, 1A/04, ORS-F/06, CS, 90D

Danfoss

1A6FRB8

HOSE FTG, 1A/08, ORS-F/06, CS, 90D

Danfoss

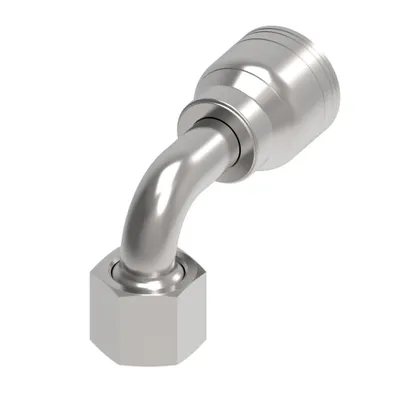

1A6FRB6

HOSE FTG, 1A/06, ORS-F/06, CS, 90D

Danfoss

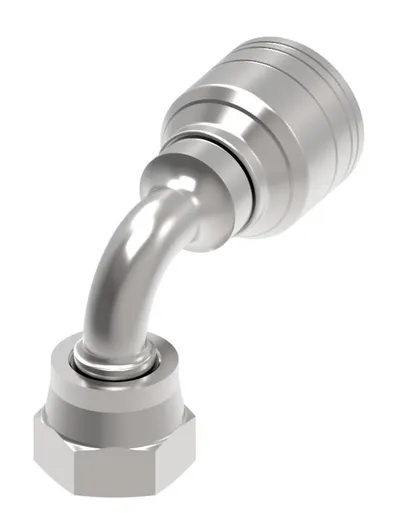

1A6FRB5

HOSE FTG, 1A/05, ORS-F/06, CS, 90D

Danfoss

1A6FRB4

HOSE FTG, 1A/04, ORS-F/06, CS, 90D

Danfoss

1A6FRA6

HOSE FTG, 1A/06, ORS-F/06, CS, 45D

Danfoss

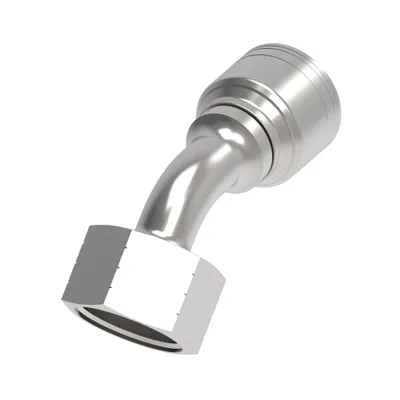

1A6FRA5

HOSE FTG, 1A/05, ORS-F/06, CS, 45D

Danfoss

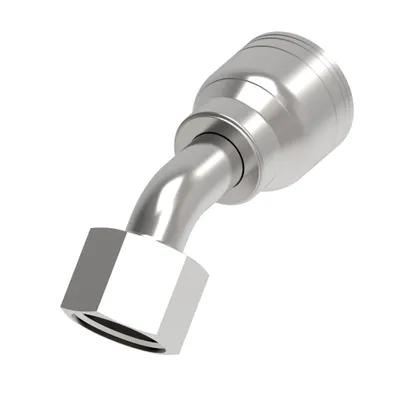

1A6FRA4

HOSE FTG, 1A/04, ORS-F/06, CS, 45D

Danfoss

1A6FR8

HOSE FTG, 1A/08, ORS-F/06, CS, STR

Danfoss

1A6FR6

HOSE FTG, 1A/06, ORS-F/06, CS, STR

Danfoss

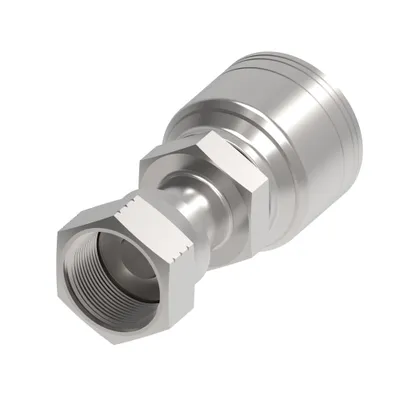

1A6FR5

HOSE FTG, 1A/05, ORS-F/06, CS, STR

Danfoss

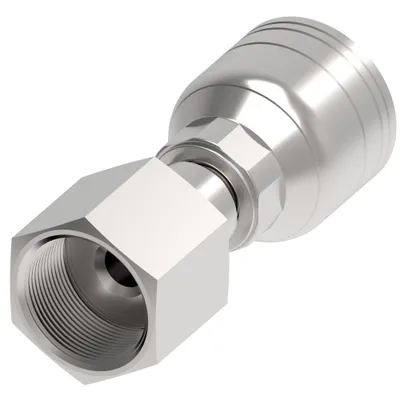

1A6FR4

HOSE FTG, 1A/04, ORS-F/06, CS, STR

Danfoss

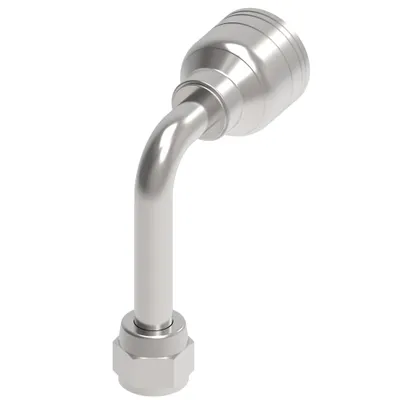

1A6FJC6

HOSE FTG, 1A/06, JIC-F/06, CS, 90D

Danfoss

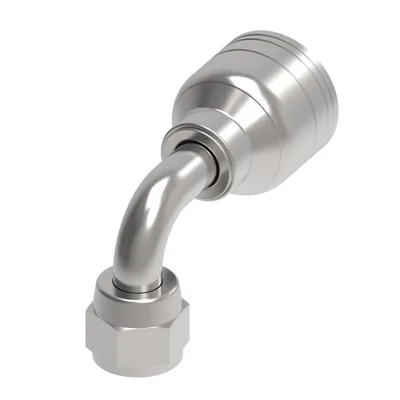

1A6FJB6

HOSE FTG, 1A/06, JIC-F/06, CS, 90D

Danfoss

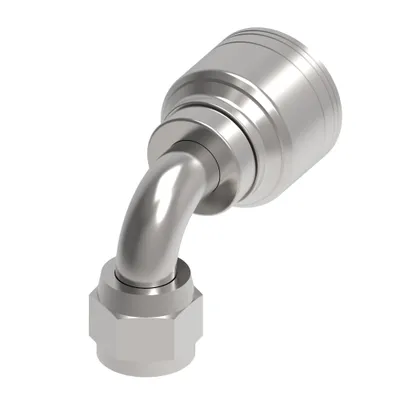

1A6FJB5

HOSE FTG, 1A/05, JIC-F/06, CS, 90D

Danfoss

1A6FJB4

HOSE FTG, 1A/04, JIC-F/06, CS, 90D

Danfoss

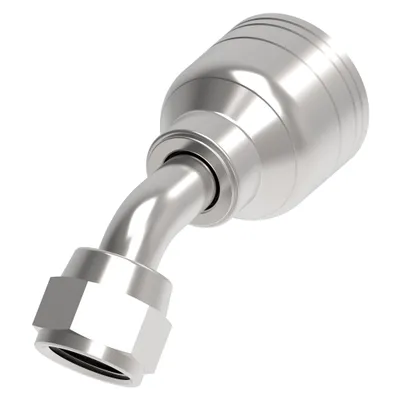

1A6FJA6

HOSE FTG, 1A/06, JIC-F/06, CS, 45D

Danfoss

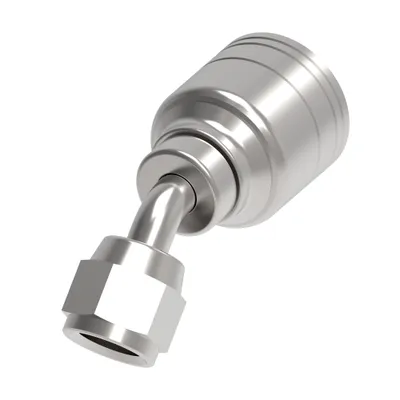

1A6FJA5

HOSE FTG, 1A/05, JIC-F/06, CS, 45D

Danfoss

1A6FJA4

HOSE FTG, 1A/04, JIC-F/06, CS, 45D

Danfoss

1A6FJ8

HOSE FTG, 1A/08, JIC-F/06, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A6KF6	2.220	56.400	35.100	2.380	60.452
1A6JM6	2.010	51.000	25.700	2.350	59.690
1A6JF6	2.170	55.200	33.900	2.320	58.928
1A6FRC6	2.270	57.600	34.100	2.771	70.400
1A6FRC4	2.090	53.100	32.766	2.590	65.786
1A6FRB8	2.390	60.700	35.200	2.890	73.406
1A6FRB6	2.270	57.600	34.100	2.770	70.358
1A6FRB5	2.160	54.800	33.200	2.681	68.100
1A6FRB4	2.090	53.100	32.900	2.649	67.300
1A6FRA6	2.360	59.900	36.300	3.230	82.042
1A6FRA5	2.240	57.000	35.400	2.244	57.000
1A6FRA4	2.220	56.500	35.000	3.160	80.264
1A6FR8	2.350	59.600	34.100	2.885	73.300
1A6FR6	2.070	52.700	31.400	2.600	66.040
1A6FR5	1.980	50.300	28.700	1.980	50.300
1A6FR4	1.960	49.900	28.400	2.470	62.738
1A6FJC6	2.310	58.600	30.988	2.684	68.173
1A6FJB6	2.130	54.100	30.900	2.580	65.532
1A6FJB5	1.940	49.300	27.700	2.405	61.100
1A6FJB4	1.870	47.600	27.400	2.374	60.300
1A6FJA6	2.220	56.500	33.300	3.040	77.216
1A6FJA5	2.030	51.600	30.000	2.862	72.700
1A6FJA4	2.090	53.100	29.700	2.464	62.600
1A6FJ8	2.370	60.100	34.600	2.530	64.270

Common to all listed parts

Construction Style	Crimp
End size 1	-6
Product material	Carbon steel
Series	1A/Z Series
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
