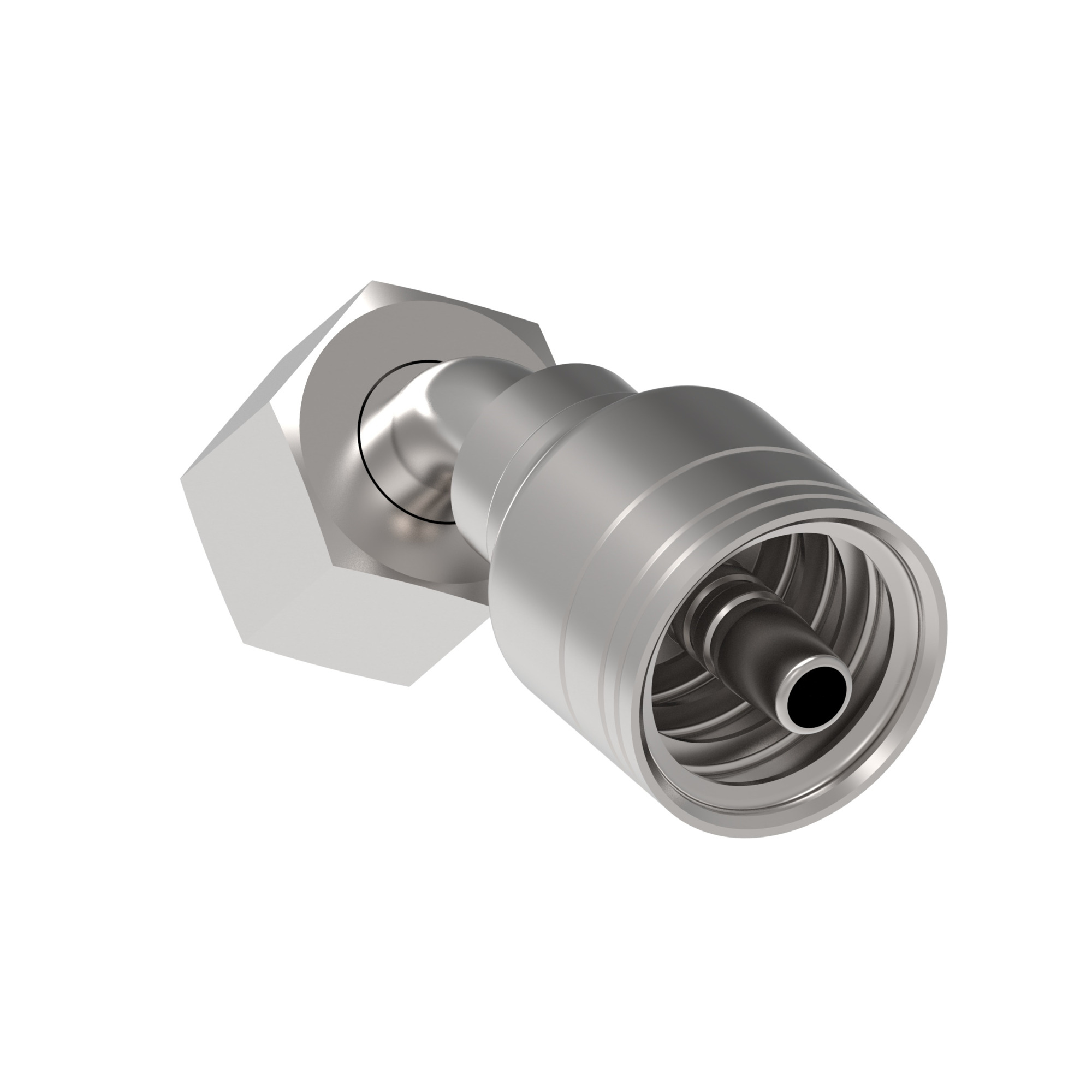

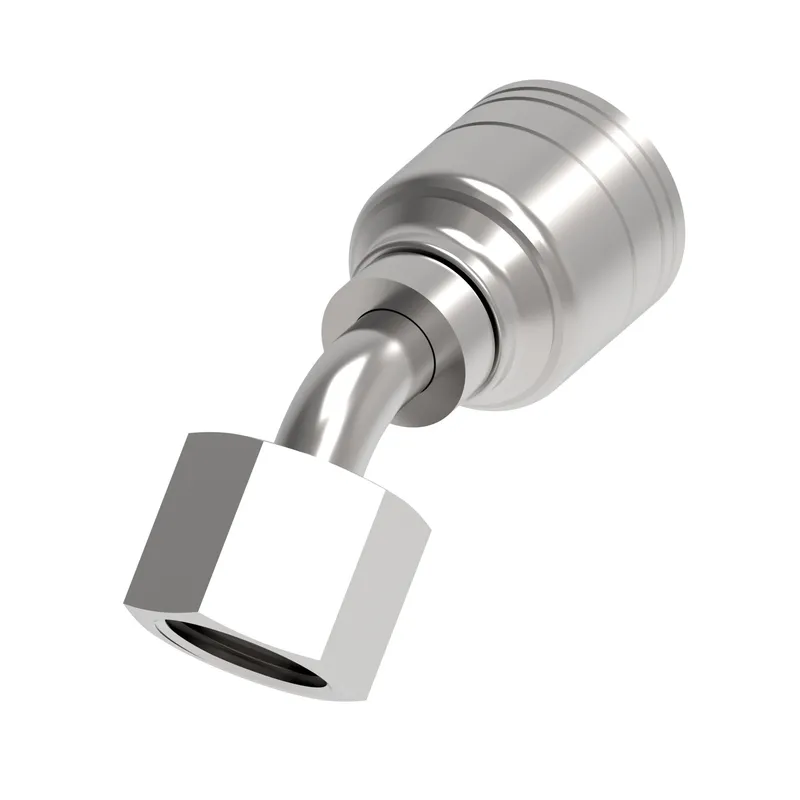

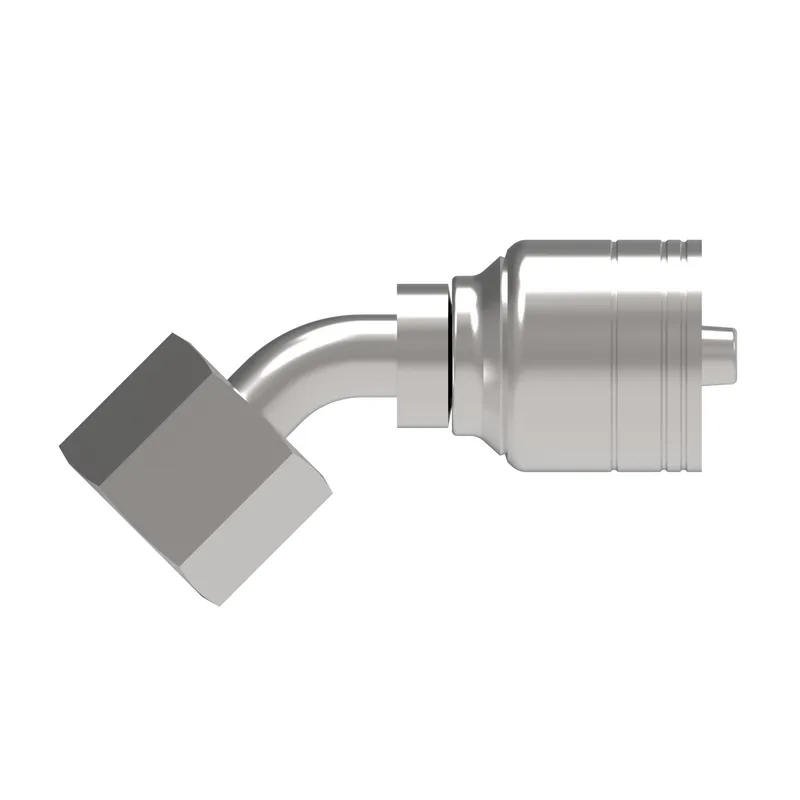

Danfoss 1A8DSA5

HOSE FTG, 1A/05, DKOH-B/08, CS, 45D

MPN: 1A8DSA5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1A8DSA5?

Danfoss HOSE FTG, 1A/05, DKOH-B/08, CS, 45D, manufacturer part number 1A8DSA5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.440
A dimension MM	62.100
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	0.680
Drop dimension MM	17.20
End connection torque	50-60 lb-ft(68-78 Nm)
End size 1	-8
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.944
Hex size 1 MM	24.000
Hose cut off factor IN	1.500
Hose cut off factor MM	38.200
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	1.633
Product height mm	41.500
Product length in	2.917
Product length mm	74.100
Product material	Carbon steel
Product width in	1.090
Product width mm	27.71
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M20x1.5
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
