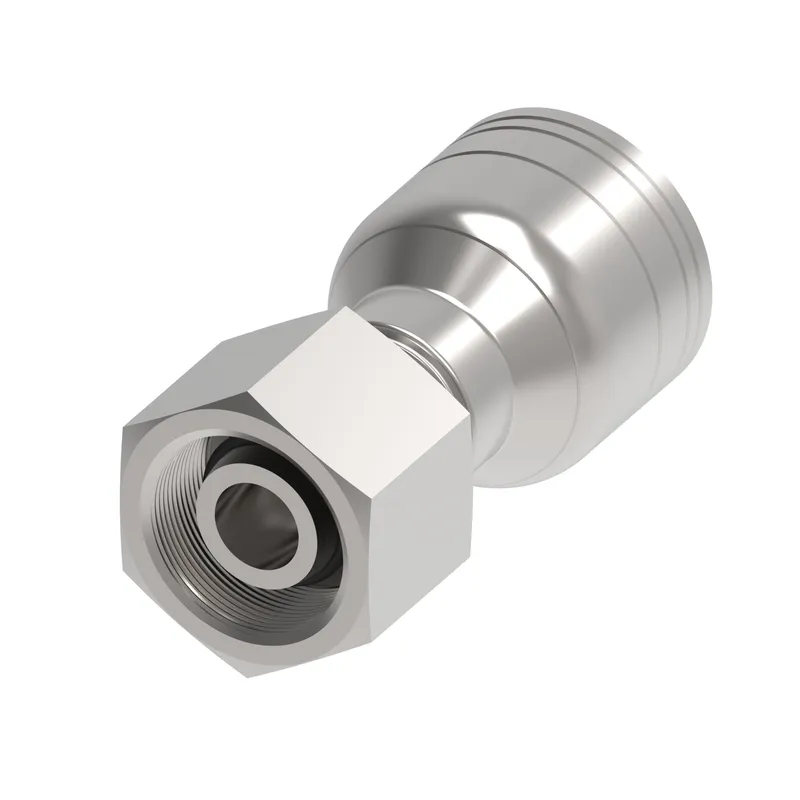

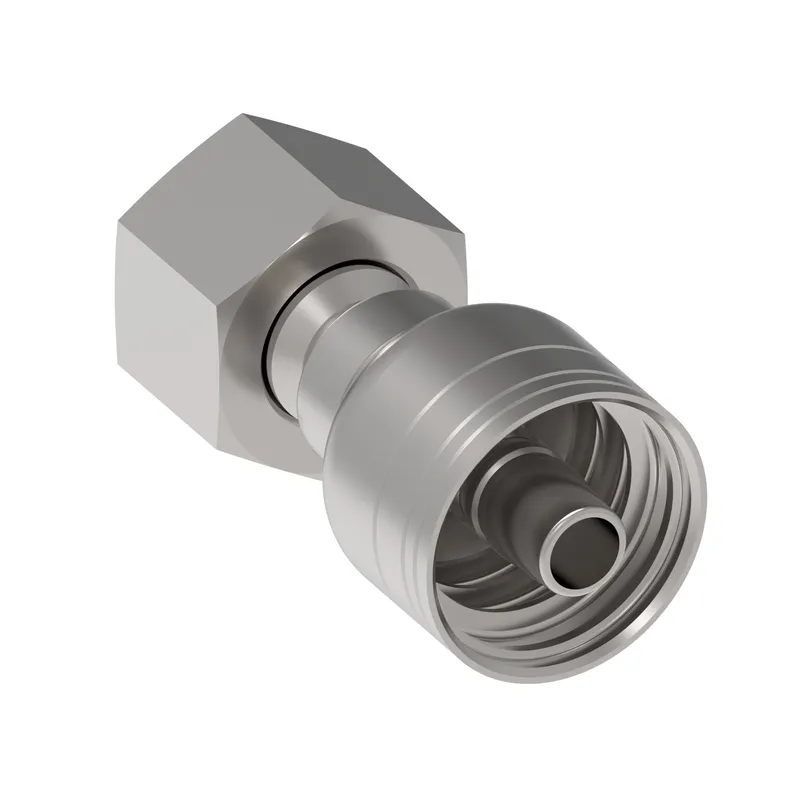

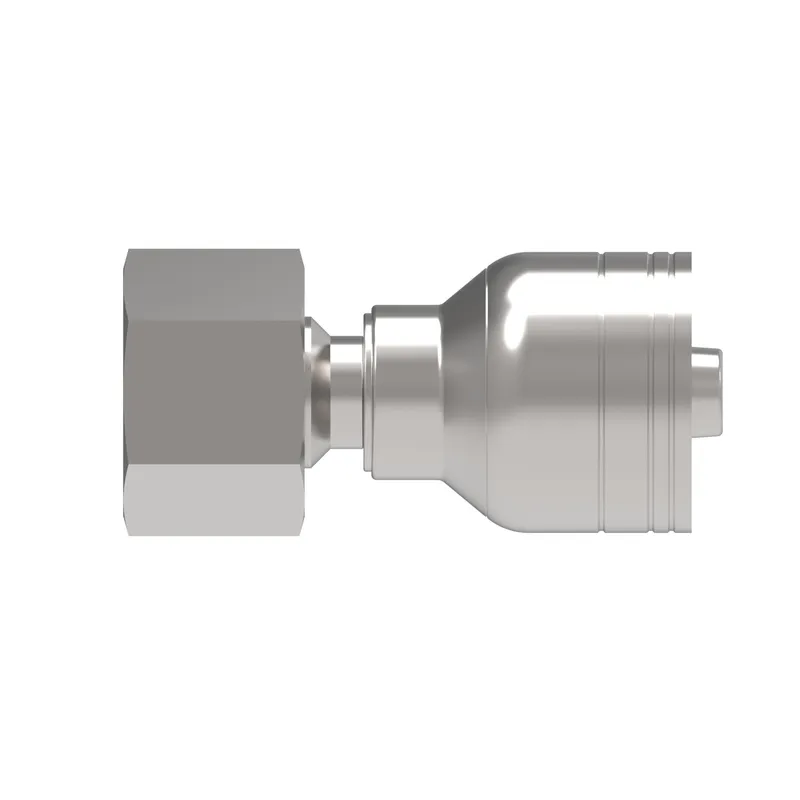

Danfoss 1A8DS6

HOSE FTG, 1A/06, DKOH-B/08, CS, STR

MPN: 1A8DS6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1A8DS6?

Danfoss HOSE FTG, 1A/06, DKOH-B/08, CS, STR, manufacturer part number 1A8DS6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124890
A dimension IN	2.120
A dimension MM	53.800
Body size	N/A
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
End connection torque	50-60 lb-ft(68-78 Nm)
Finish plating	Dura-Kote
Hose cut off factor IN	1.120
Hose cut off factor MM	28.500
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.080
Product height mm	27.423
Product length in	2.120
Product length mm	53.848
Product material	Carbon steel
Product width in	1.067
Product width mm	27.101
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working pressure max PSI	5300
