Danfoss 1SA8MJ8

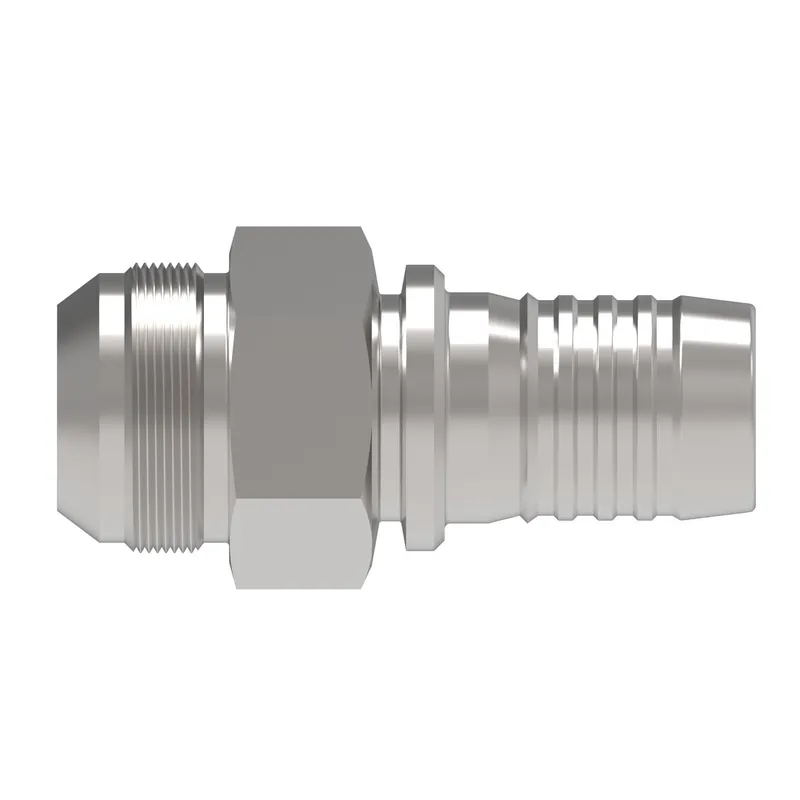

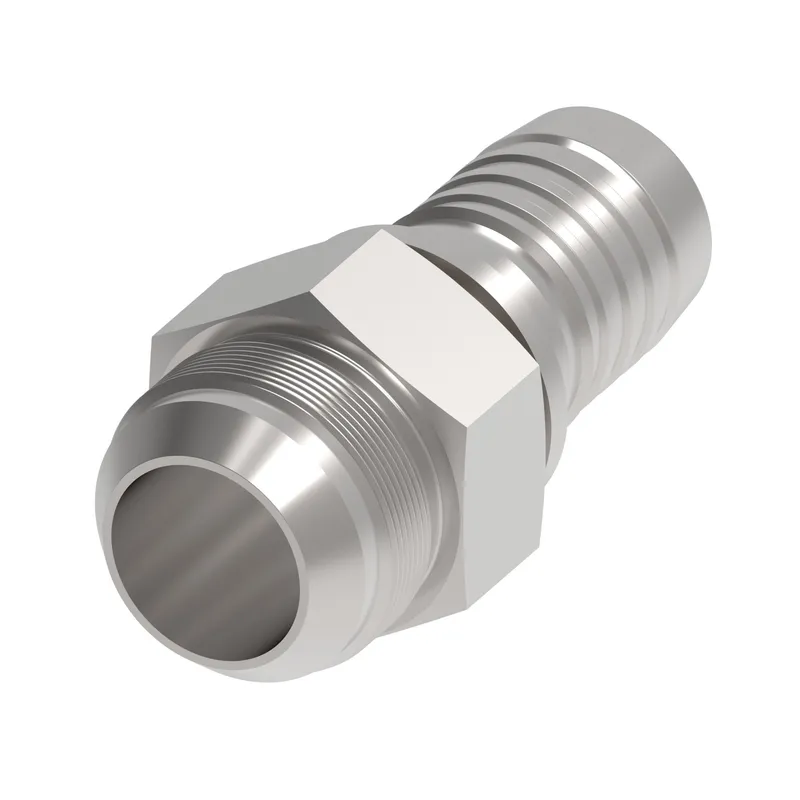

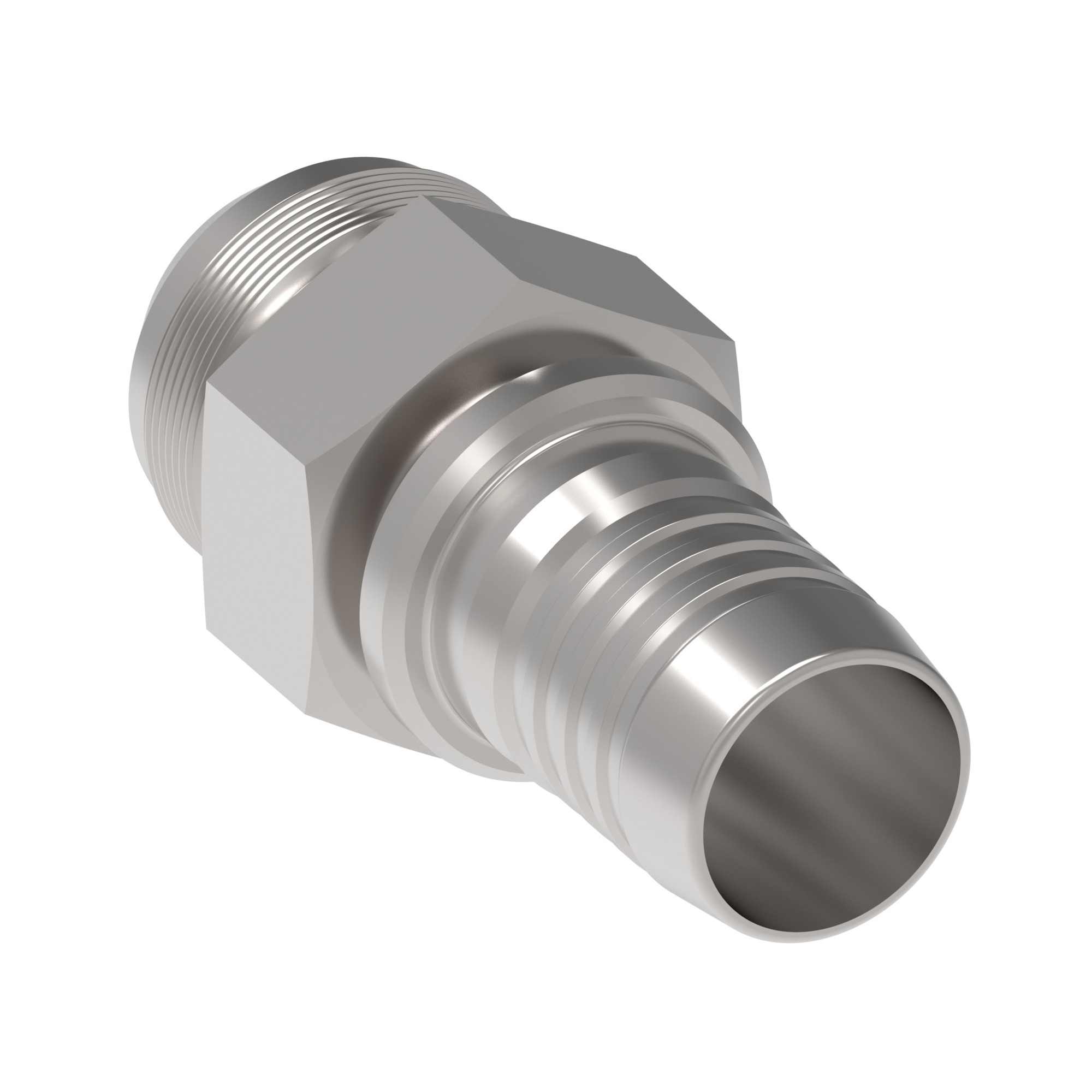

HOSE NIPPLE ASSY,1W/08,JIC-M/08,CS,STR

MPN: 1SA8MJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA8MJ8?

Danfoss HOSE NIPPLE ASSY,1W/08,JIC-M/08,CS,STR, manufacturer part number 1SA8MJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.574
A dimension MM	65.390
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-12
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Hex size 2 MM	20.000
Hose cut off factor IN	1.410
Hose cut off factor MM	35.814
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product height in	0.810
Product height mm	20.574
Product length in	2.570
Product length mm	65.278
Product material	Carbon steel
Product width in	0.810
Product width mm	20.574
Series	1SA
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
