Danfoss 20011Y-22-05TZ

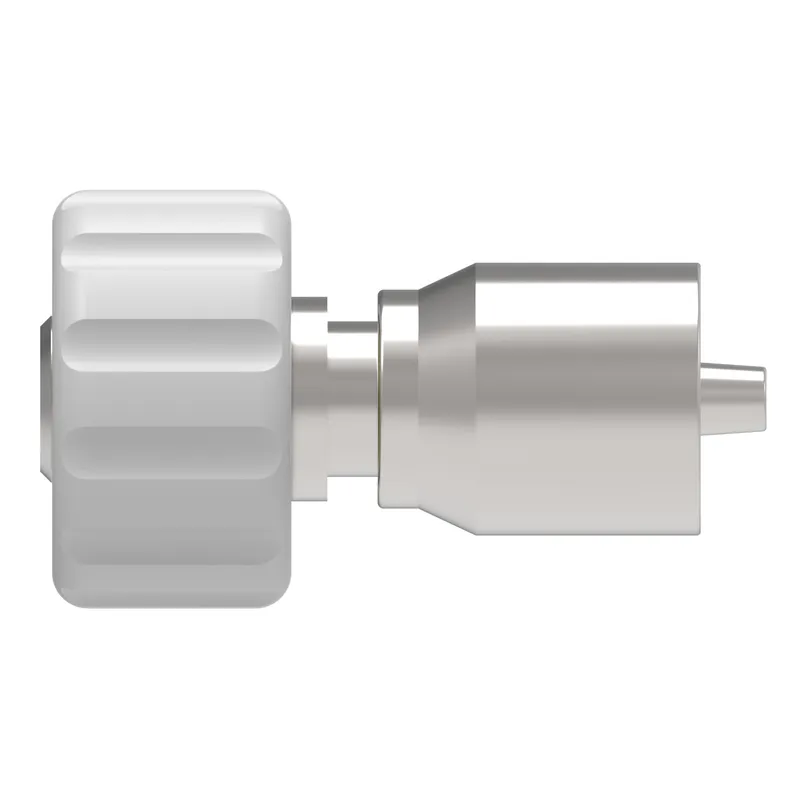

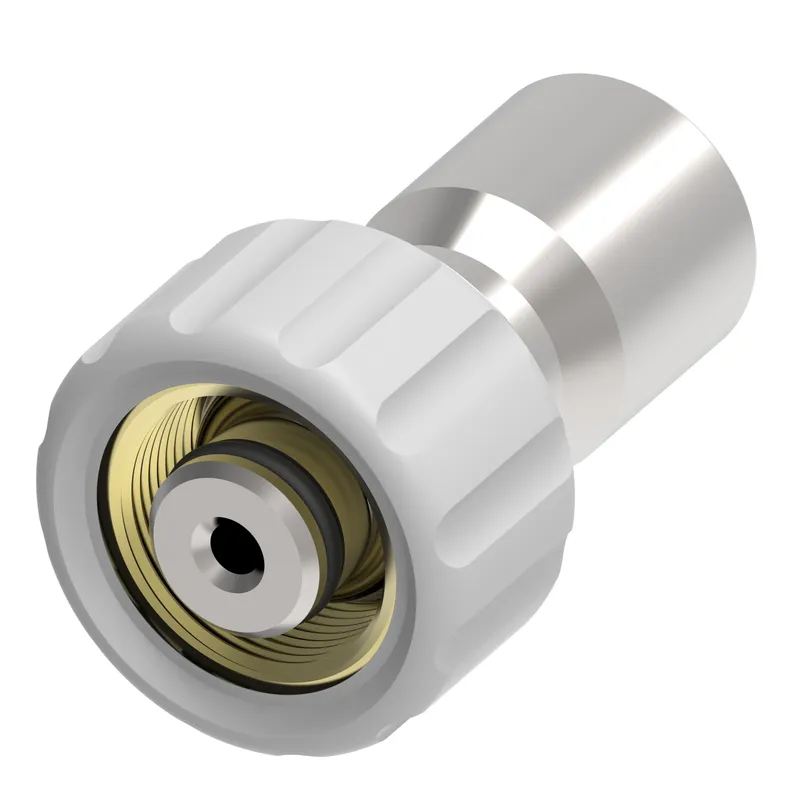

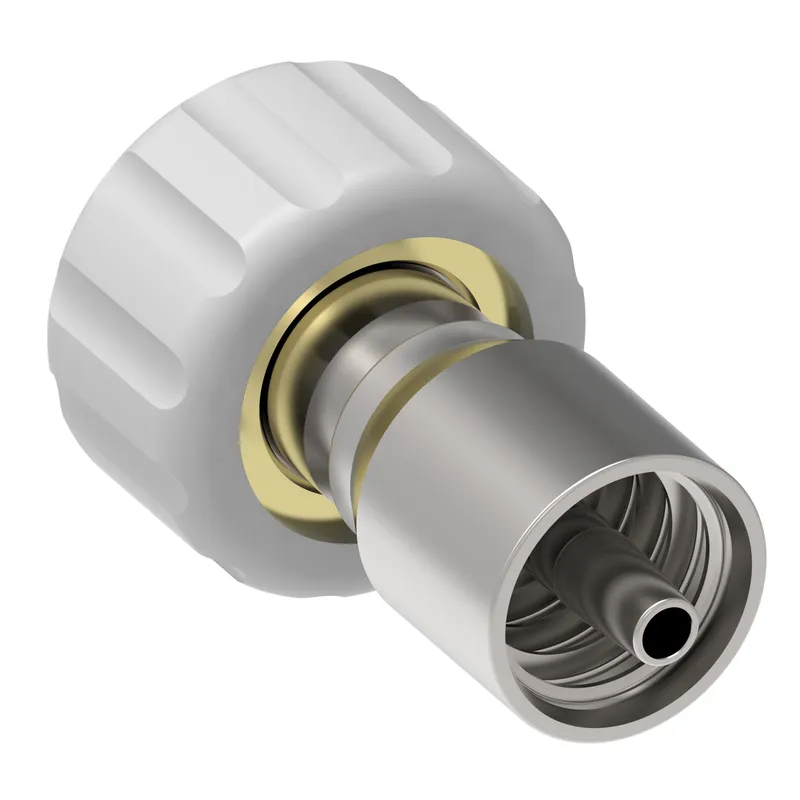

HOSE NIPPLE ASSY,2P/05,WATIN-F/22,CS,STR

MPN: 20011Y-22-05TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20011Y-22-05TZ?

Danfoss HOSE NIPPLE ASSY,2P/05,WATIN-F/22,CS,STR, manufacturer part number 20011Y-22-05TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.086
A dimension MM	53.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Finish plating	Zinc plating
Hose cut off factor IN	0.984
Hose cut off factor MM	25.000
Hose size	-5
Inside diameter IN	0.236
Inside diameter MM	6.000
Product height in	1.370
Product height mm	34.798
Product length in	2.080
Product length mm	52.832
Product material	Carbon steel
Product width in	1.370
Product width mm	34.798
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M22x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
