Danfoss 1SA8FJ8

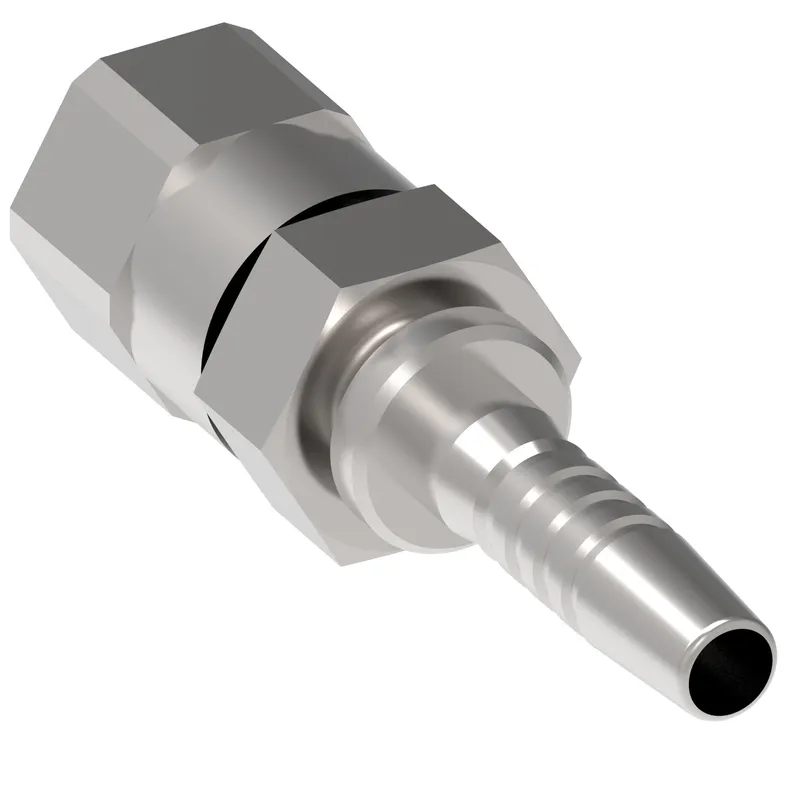

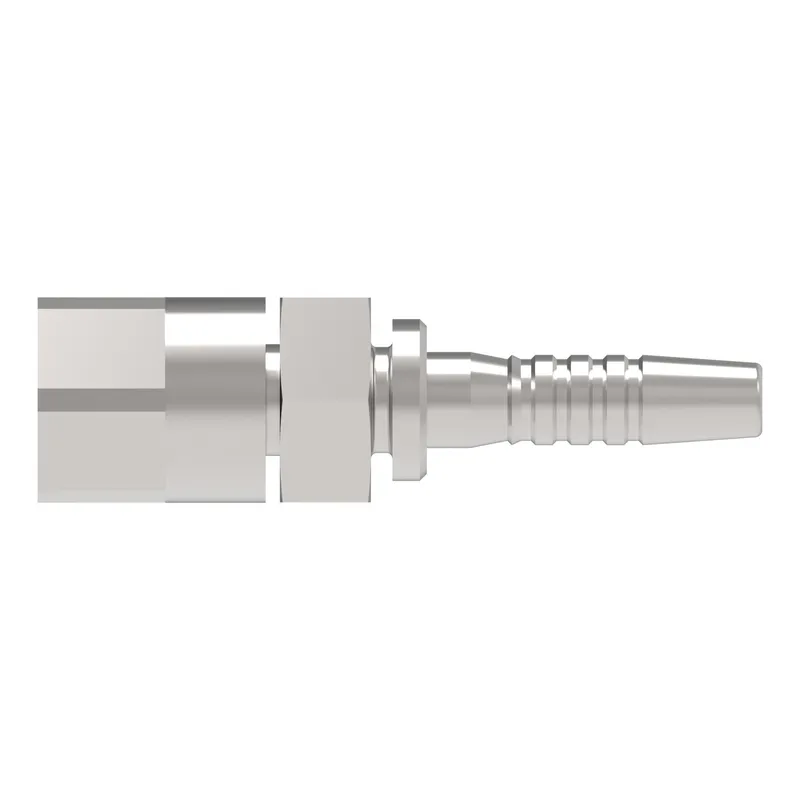

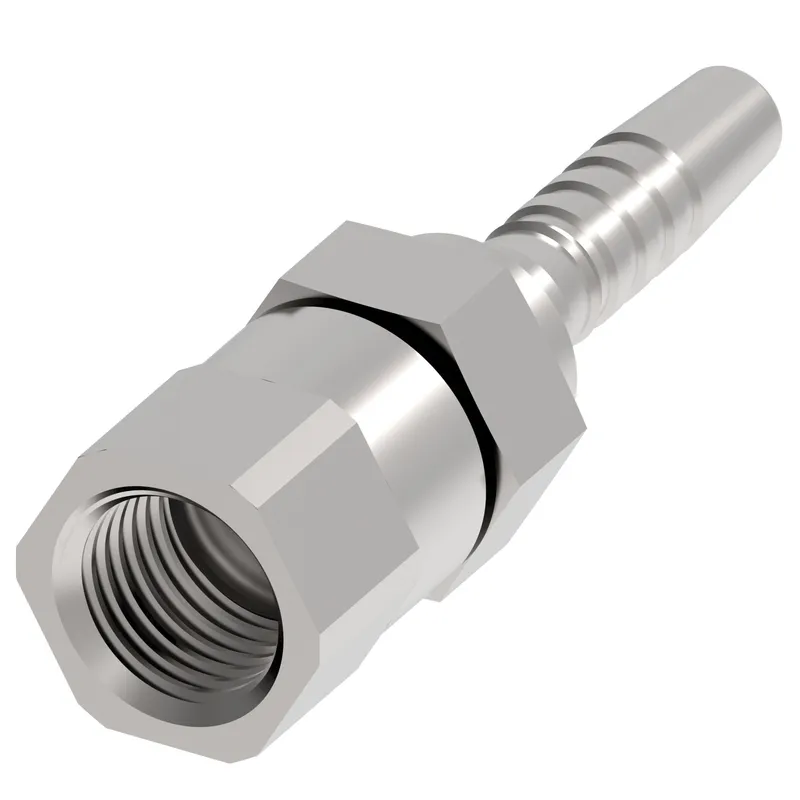

HOSE NIPPLE ASSY,1W/08,JIC-F/08,CS,STR

MPN: 1SA8FJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA8FJ8?

Danfoss HOSE NIPPLE ASSY,1W/08,JIC-F/08,CS,STR, manufacturer part number 1SA8FJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133564
A dimension IN	2.630
A dimension MM	66.700
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 MM	20.637
Hose cut off factor IN	1.460
Hose cut off factor MM	37.000
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	0.880
Product height mm	22.352
Product length in	2.630
Product length mm	66.802
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1SA
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
