Keypad modules Parts

B&R

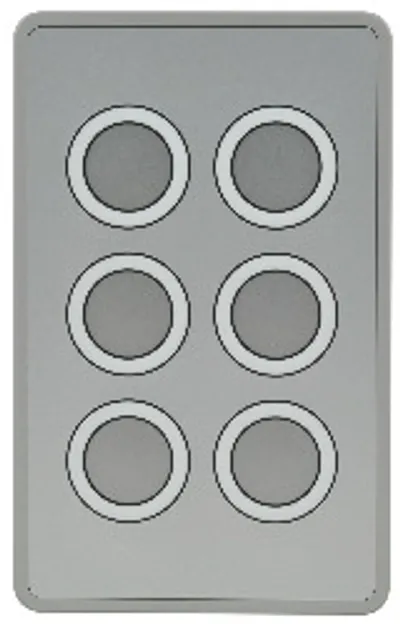

4XP0000.EX-K64

CHMI 7 add-on keypad / X2X Ex

B&R

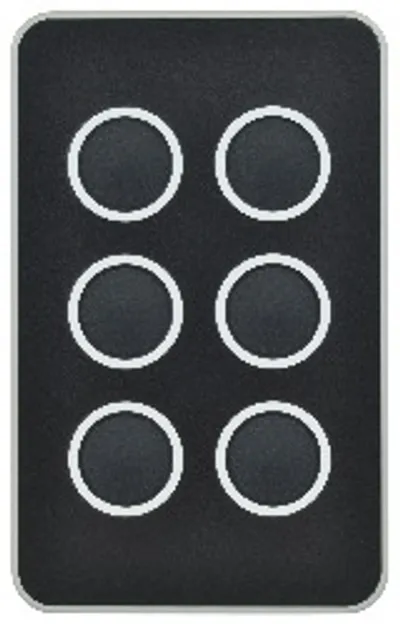

4XP0000.EX-K74

CHMI 8 add-on keypad / X2X Ex

B&R

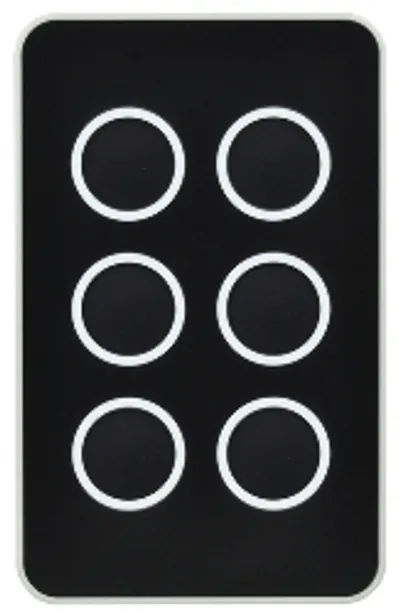

4XP0000.EX-K75

CHMI 9 add-on keypad / X2X Ex

B&R

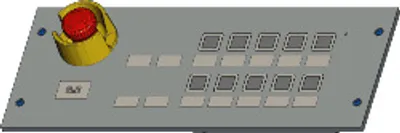

4B1400.00-K60

Add-on keypad PN/PS AM

B&R

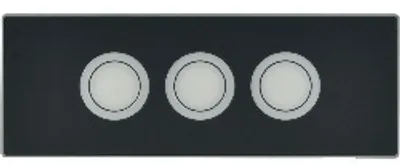

4XP0043.00-00B

X2X keypad module, anthracite, 3 illuminated ring keys

B&R

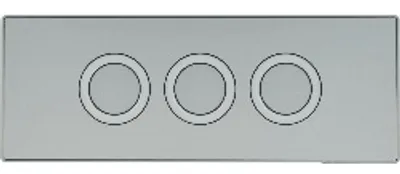

4XP0043.00-00W

X2X keypad module, white aluminum

B&R

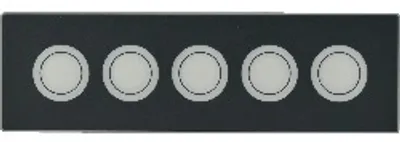

4XP0057.00-00B

X2X keypad module, anthracite, 5 illuminated ring keys

B&R

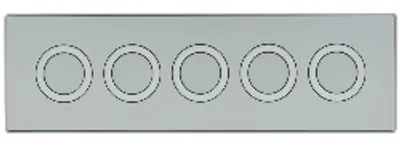

4XP0057.00-00W

X2X keypad module, white aluminum

B&R

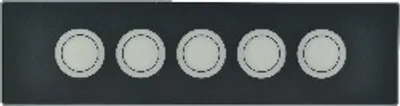

4XP0070.00-00B

X2X keypad module, anthracite, 5 illuminated ring keys

B&R

4XP0070.00-00W

X2X keypad module, white aluminum

B&R

4XP0101.00-00B

X2X keypad module, anthracite, 8 illuminated ring keys

B&R

4XP0101.00-00W

X2X keypad module, white aluminum

B&R

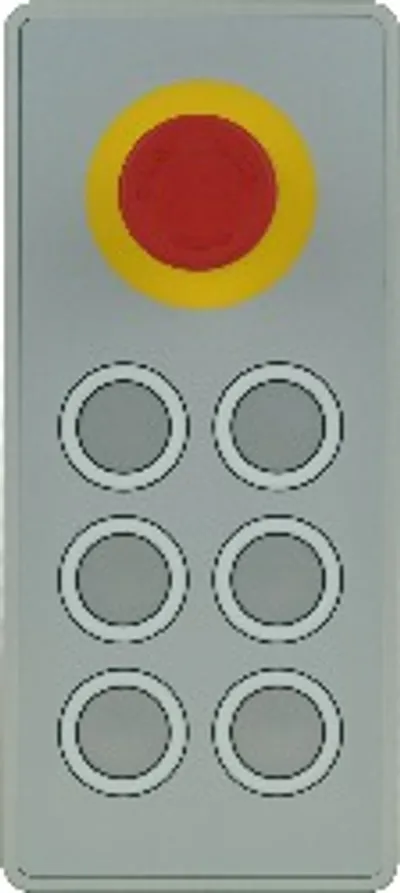

4XP0000.00-K94

X2X keypad module, 6 illuminated ring keys

B&R

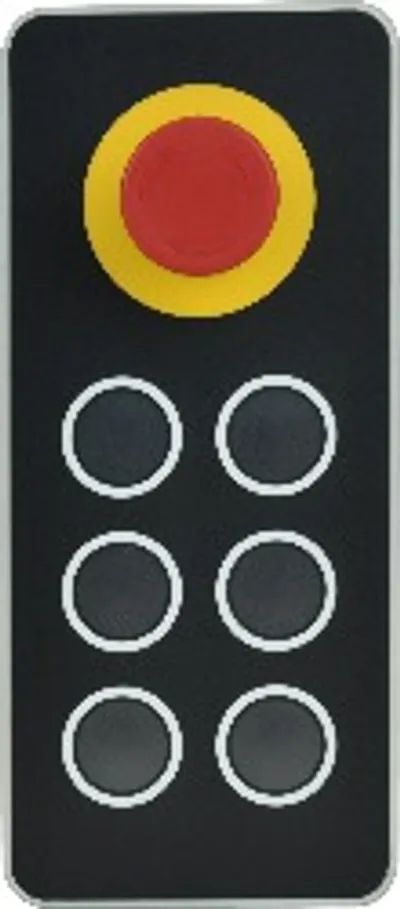

4XP0000.00-KA4

X2X keypad module, black, 6 illuminated ring keys

B&R

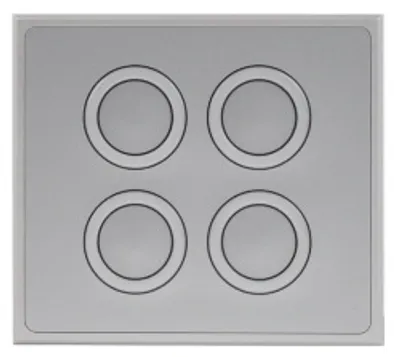

4XP0000.00-K20

X2X keyboard; 4 illuminated ring keys

B&R

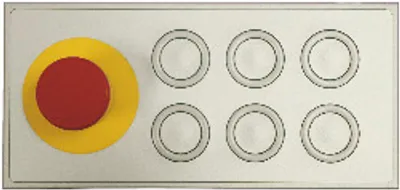

4XP0000.00-K21

X2X keyboard; 6 illuminated ring keys; E-stop

B&R

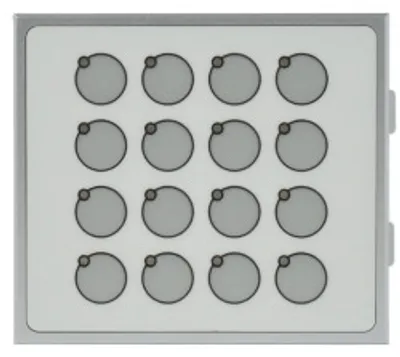

4XP0000.00-K33

X2X keyboard16 covered keys

B&R

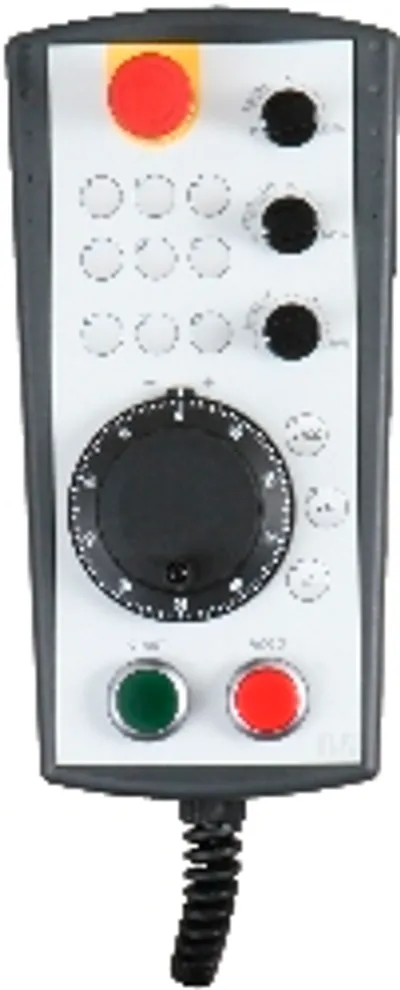

4XP0000.00-K38

X2X Handheldfor CNC applications

B&R

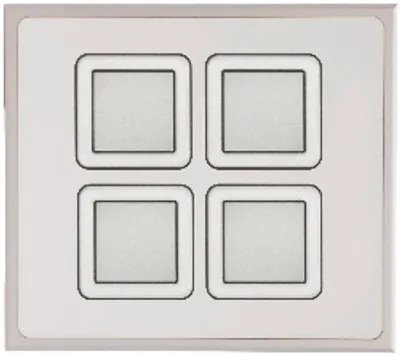

4XP0000.00-K40

X2X keyboard4 illuminated ring keys (square)

B&R

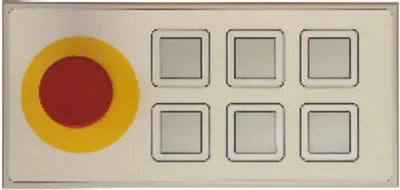

4XP0000.00-K41

X2X keyboard6 illuminated ring keys (square)E-stop

B&R

4XP0000.00-K42

X2X keyboard6 illuminated ring keys (multi-colored)

B&R

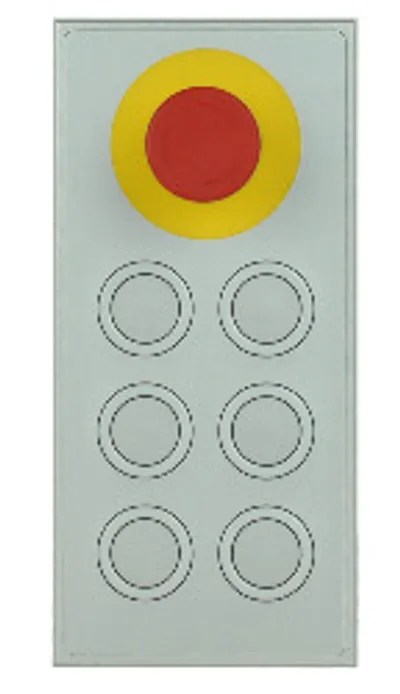

4XP0000.00-K43

X2X keyboard; 6 illuminated ring keys (multi-colored)

B&R

4XP0000.00-K64

X2X keyboard; 6 illuminated ring keys (multi-colored)

B&R

4XP0000.00-K74

X2X keyboard, black

Compare Keypad modules

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Illuminated ring keys	Dimensions – Width	Dimensions – Height	Dimensions – Depth	Weight
4XP0000.EX-K64	6x B&R illuminated ring keys	77 mm	123 mm	52.6 mm	200 g
4XP0000.EX-K74	6x B&R illuminated ring keys	77 mm	123 mm	52.6 mm	200 g
4XP0000.EX-K75	6x B&R illuminated ring keys	77 mm	123 mm	52.6 mm	200 g
4B1400.00-K60	10 B&R illuminated ring keys	435 mm	160 mm	—	1.7 kg
4XP0043.00-00B	3x B&R illuminated ring keys (round)	140 mm	52 mm	40.4 mm	116 g
4XP0043.00-00W	3x B&R illuminated ring keys (round)	140 mm	52 mm	40.4 mm	116 g
4XP0057.00-00B	5x B&R illuminated ring keys (round)	172 mm	52 mm	40.4 mm	134 g
4XP0057.00-00W	5x B&R illuminated ring keys (round)	172 mm	52 mm	40.4 mm	134 g
4XP0070.00-00B	5x B&R illuminated ring keys (round)	197 mm	52 mm	40.4 mm	147 g
4XP0070.00-00W	5x B&R illuminated ring keys (round)	197 mm	52 mm	40.4 mm	147 g
4XP0101.00-00B	8x B&R illuminated ring keys (round)	276 mm	52 mm	40.4 mm	200 g
4XP0101.00-00W	8x B&R illuminated ring keys (round)	276 mm	52 mm	40.4 mm	200 g
4XP0000.00-K94	6x B&R illuminated ring keys	77 mm	175 mm	86 mm	600 g
4XP0000.00-KA4	6x B&R illuminated ring keys	77 mm	175 mm	86 mm	600 g
4XP0000.00-K20	4x B&R illuminated ring keys	90 mm	80 mm	37 mm	Approx. 250 g
4XP0000.00-K21	6x B&R illuminated ring keys (round)	170 mm	80 mm	32 mm	430 g
4XP0000.00-K33	—	90 mm	80 mm	36.2 mm	200 g
4XP0000.00-K38	—	280 mm	140 mm	86.2 mm	430 g
4XP0000.00-K40	4 pcs. (square)	90 mm	80 mm	37 mm	Approx. 250 g
4XP0000.00-K41	6x B&R illuminated ring keys (square)	170 mm	80 mm	32 mm	430 g
4XP0000.00-K42	6x B&R illuminated ring keys	212 mm	50 mm	34.6 mm	362 g
4XP0000.00-K43	6x B&R illuminated ring keys (round)	170 mm	80 mm	32 mm	430 g
4XP0000.00-K64	6x B&R illuminated ring keys	77 mm	123 mm	52.6 mm	450 g
4XP0000.00-K74	6x B&R illuminated ring keys	77 mm	123 mm	52.6 mm	450 g

Common to all listed parts

Elevation – Operation	Max. 3000 m
Front – Gasket	Flat gasket around display front
