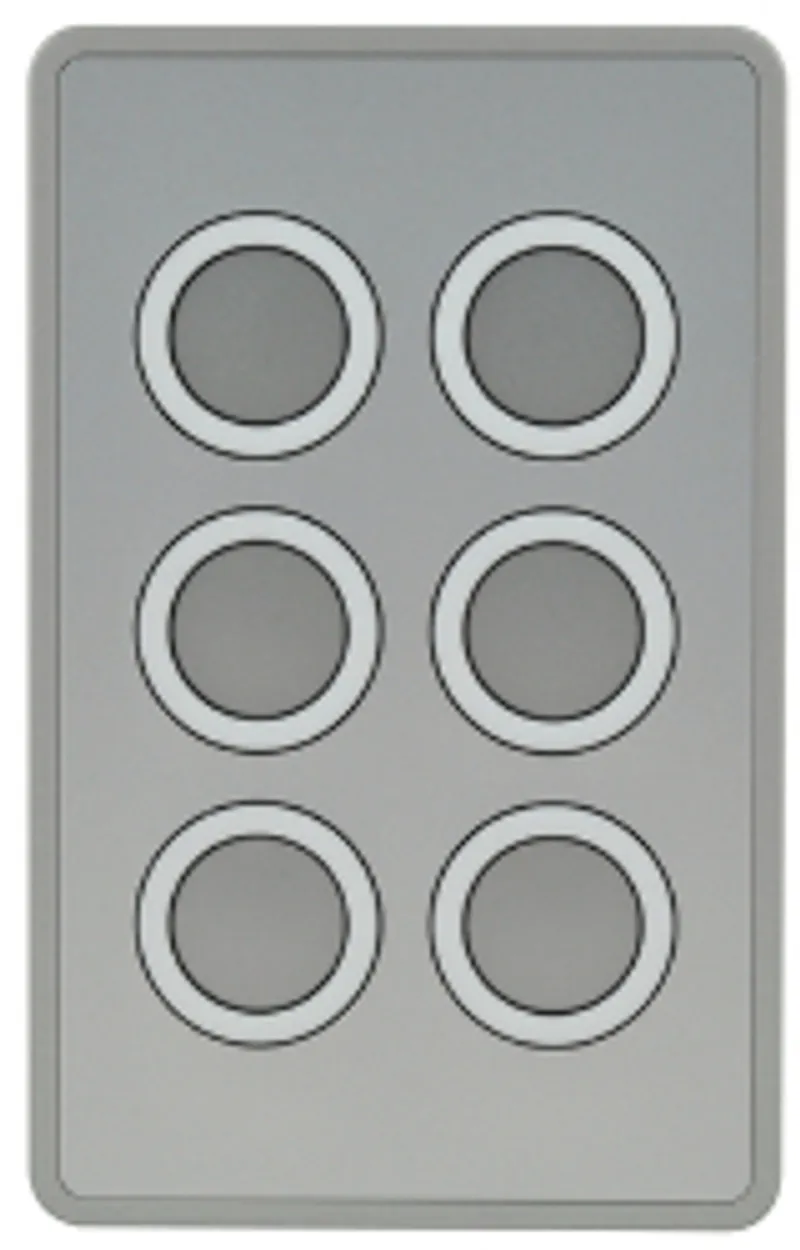

B&R 4XP0000.00-K64
X2X keyboard; 6 B&R illuminated ring keys (multi-colored)
- MPN
- 4XP0000.00-K64
- Category
- Keypad modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4XP0000.00-K64?
X2X keyboard
6 B&R illuminated ring keys (multi-colored)
Fast mounting using a single screw
X2X keypad module, 6 B&R illuminated ring keys, 4-color (green, yellow, red, white), IP65 protection, fast mounting using single screw, connection via M8/M12 circular connectors.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
Interfaces
| X2X – Type | X2X slave |
| X2X – Execution | 4-pin M12 connector |
| X2X – Internal bus power supply | Yes |
| X2X – Distance between 2 stations | 100 m |
| X2X – Electrical isolation | Yes |
Keys
| Illuminated ring keys – Color | Red, green, yellow, white |
| Illuminated ring keys | 6x B&R illuminated ring keys |
Electrical properties
| Nominal voltage | 24 VDC |
| Power consumption | Max. 8 watts |
| Voltage range | 18 - 30 VDC |
| Current consumption | Max. 320 mA (at nominal voltage) |
Operating conditions
| Degree of protection per EN 60529 | Front: IP65 Back: IP65 |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Ambient conditions
| Temperature – Operation | 0 to +50°C |
| Temperature – Storage | -20 to +60°C |
| Temperature – Transport | -20 to +60°C |
| Relative humidity – Operation | T ≤ 40°C: 5 to 85%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Transport | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Steel sheet, galvanized |
| Front – Material | Polyester |
| Front – Frame | Aluminum, naturally anodized |
| Front – Design | RAL 9006 |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 77 mm |
| Dimensions – Height | 123 mm |
| Dimensions – Depth | 52.6 mm |
| Weight | 450 g |
