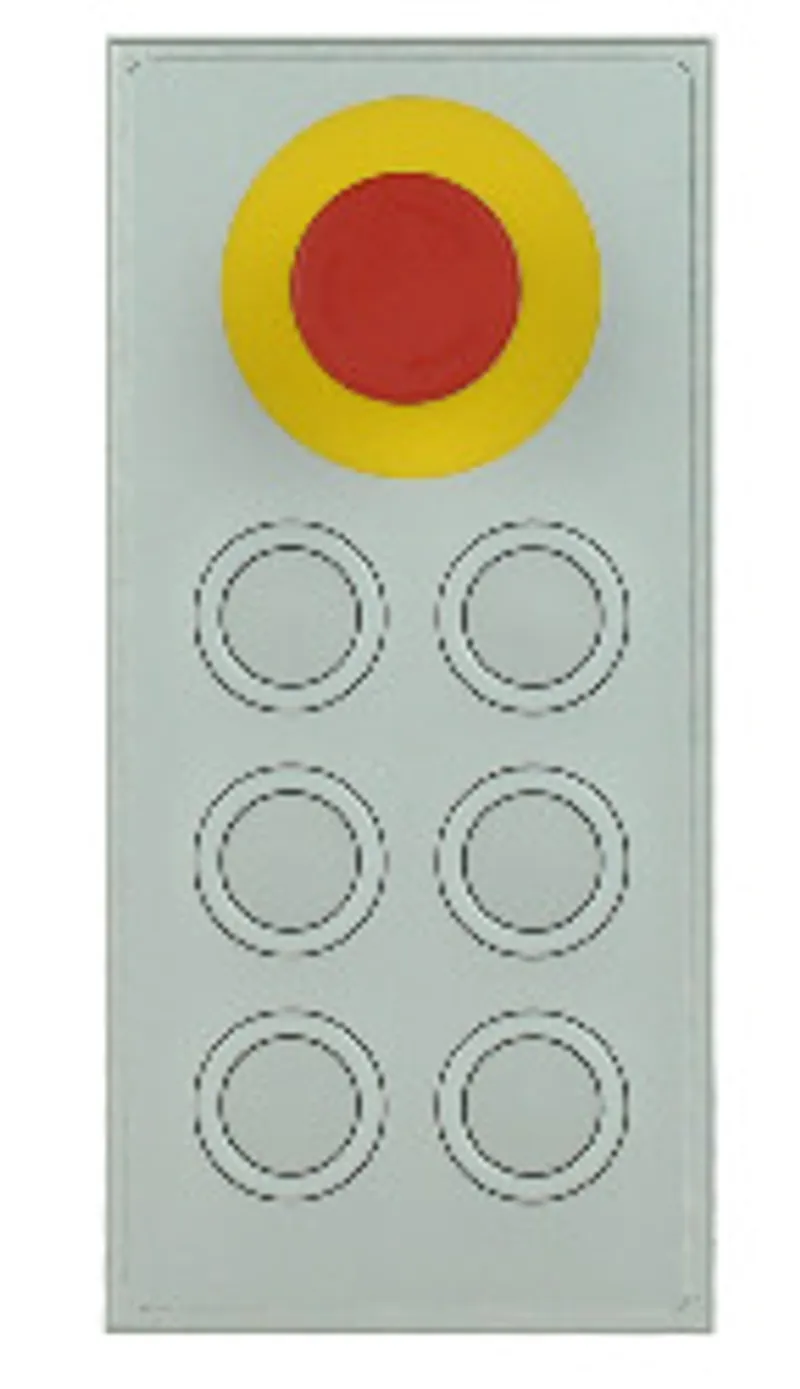

B&R 4XP0000.00-K43
X2X keyboard; 6 B&R illuminated ring keys (multi-colored); Emergency stop
- MPN
- 4XP0000.00-K43
- Category
- Keypad modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4XP0000.00-K43?
X2X keyboard
6 B&R illuminated ring keys (multi-colored)
Emergency stop
White aluminum front foil
X2X keypad module 6 B&R illuminated ring keys / 2x 4-color (red, green, yellow, white) / 1x 4-color (red, green, yellow, blue) / 3x 3-color (red, green, yellow), X2X interface, emergency stop button, 24 VDC power supply, IP65 protection (front), order 1x terminal block 0TB1108.8110 and 1x terminal block 0TB1104.8100 separately!
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | 1x Run (green), 1x Error (red) |
Interfaces
| X2X – Type | X2X slave |
| X2X – Variant | 8-pin male multipoint connector |
| X2X – Internal bus power supply | Yes |
| X2X – Distance between 2 stations | 100 m |
| X2X – Electrical isolation | No |
Keys
| Illuminated ring keys – Color | 2x (red, yellow, green, white); 3x (red, yellow, green); 1x (red, yellow, green, blue) |
| Illuminated ring keys | 6x B&R illuminated ring keys (round) |
Features
| Emergency stop – Type | Rafix 22FS+, 1.30.273.511/0300 |
| Emergency stop – Contact element | 2x normally closed contact |
Electrical properties
| Nominal voltage | 24 VDC ±25%, galvanically isolated |
| Inrush current | Max. 20 A for < 1 ms |
| Power consumption | 240 mA |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20; Front: IP65 |
| Degree of protection per UL 50 | NEMA 250 type 4X, protected against dust and hose-directed water (front) |
Ambient conditions
| Temperature – Operation | 0 to +50°C |
| Temperature – Storage | -20 to +60°C |
| Temperature – Transport | -20 to +60°C |
| Relative humidity – Operation | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Transport | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester |
| Front – Frame | Aluminum, naturally anodized |
| Front – Design | RAL 9006 |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 170 mm |
| Dimensions – Height | 80 mm |
| Dimensions – Depth | 32 mm |
| Weight | 430 g |
Accessories
Required accessories (order separately)
| 0TB1104.8100 | Accessories — Accessory terminal block (3.5), 4-pin, cage clamp terminal block, 1.5 mm², protected against vibration by the screw flange |
| 0TB1108.8110 | Terminal blocks — The single-row 8-pin terminal block TB708/TB1108 is used for making connections on various B&R modules. |
Optional accessories (1)
| 0TB703.81 | Terminal blocks — This 1-row, 3-pin terminal block is used to connect to various B&R modules. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
4XP0000.00-K43: frequently asked questions
When can 4XP0000.00-K43 be shipped?
4XP0000.00-K43 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4XP0000.00-K43 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4XP0000.00-K43 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4XP0000.00-K43, subject to availability and destination.
