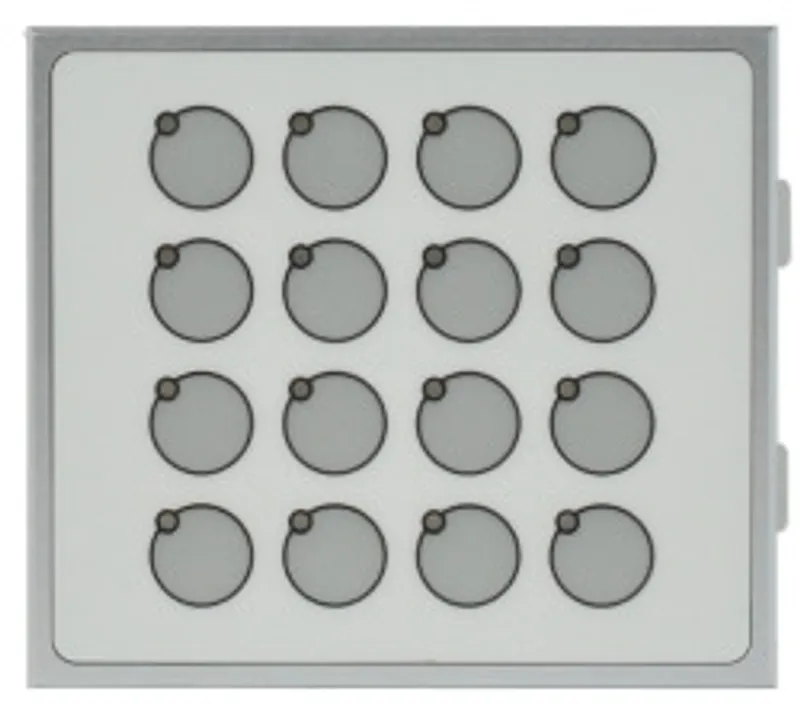

B&R 4XP0000.00-K33
X2X keyboard16 covered keys
- MPN
- 4XP0000.00-K33
- Category
- Keypad modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4XP0000.00-K33?
X2X keyboard
16 covered keys
X2X keypad module 16 function keys, X2X interface, 24 VDC power supply, IP65 protection (from front), Order terminal block 1x 0TB1108.8110 separately!
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | 1x Run (green), 1x Error (red) |
Interfaces
| X2X – Type | X2X slave |
| X2X – Variant | 8-pin male multipoint connector |
| X2X – Internal bus power supply | Yes |
| X2X – Distance between 2 stations | 100 m |
| X2X – Electrical isolation | No |
Keys
| Membrane keys | 16x membrane keys, each with yellow LED |
Electrical properties
| Nominal voltage | 24 VDC ±25%, galvanically isolated |
| Inrush current | Max. 20 A for < 1 ms |
| Power consumption | 170 mA |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20; Front: IP65 |
| Degree of protection per UL 50 | NEMA 250 type 4X, protected against dust and hose-directed water (front) |
Ambient conditions
| Temperature – Operation | 0 to +50°C |
| Temperature – Storage | -20 to +60°C |
| Temperature – Transport | -20 to +60°C |
| Relative humidity – Operation | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Relative humidity – Transport | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester |
| Front – Frame | Aluminum, naturally anodized |
| Front – Design | Pantone 427 C |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 90 mm |
| Dimensions – Height | 80 mm |
| Dimensions – Depth | 36.2 mm |
| Weight | 200 g |
Accessories
Required accessories (order separately)
| 0TB1108.8110 | Terminal blocks — The single-row 8-pin terminal block TB708/TB1108 is used for making connections on various B&R modules. |
Optional accessories (1)
| 0TB703.81 | Terminal blocks — This 1-row, 3-pin terminal block is used to connect to various B&R modules. |
