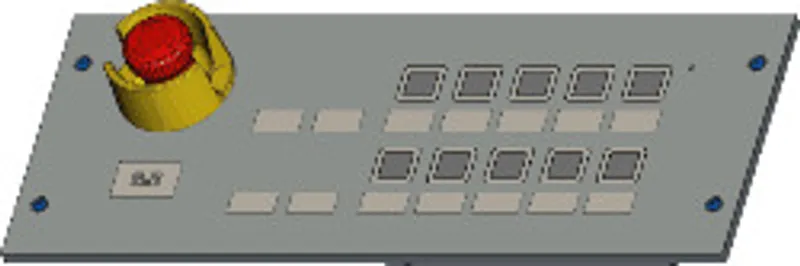

B&R 4B1400.00-K60
Add-on keypad PN/PS AM
- MPN
- 4B1400.00-K60
- Category
- Keypad modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 4B1400.00-K60?
Add-on keypad PN/PS AM
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| LEDs | 1x green (Power LED) |
Keys
| Illuminated ring keys – Color | Red, green, yellow and white |
| Illuminated ring keys | 10 B&R illuminated ring keys |
Features
| Emergency stop – Type | Rafix 22QR, 1.30.243.501/0300 |
| Emergency stop – Contact element | 2x normally closed contact |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Inrush current | Max. 15 A for < 20 ms |
| Power consumption | Typ. 100 mA. |
| Housing isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Front: IP54 |
Ambient conditions
| Temperature – Operation | 0 to +45°C |
| Temperature – Storage | 0 to +45°C |
| Temperature – Transport | 0 to +45°C |
| Relative humidity – Operation | 10 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Steel sheet, coated |
| Front – Material | Polyester |
| Front – Design | B&R panel overlay design |
| Front – Frame | Anodized aluminum |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 435 mm |
| Dimensions – Height | 160 mm |
| Weight | 1.7 kg |
No matching specifications
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
4B1400.00-K60: frequently asked questions
When can 4B1400.00-K60 be shipped?
4B1400.00-K60 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4B1400.00-K60 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4B1400.00-K60 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4B1400.00-K60, subject to availability and destination.
