EPP2xxx | Digital output Parts

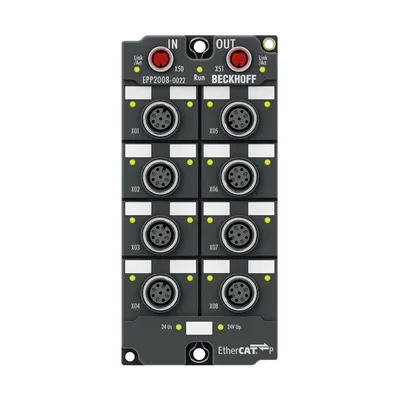

Beckhoff EPP2008-0022 – EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff EPP2624-0002 – EtherCAT P Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12

Beckhoff

EtherCAT P Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12

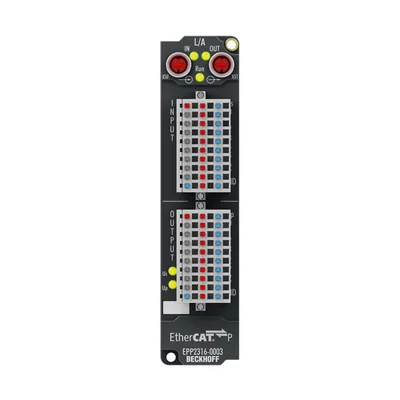

Beckhoff EPP2316-0003 – EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, IP20 connector

Beckhoff

EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, IP20 connector

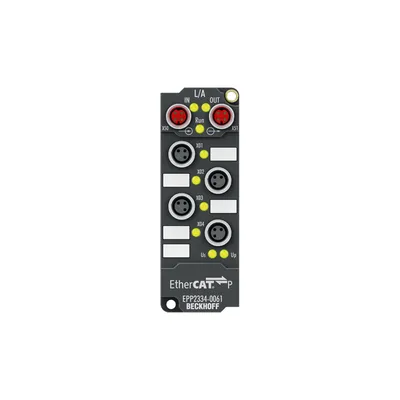

Beckhoff EPP2334-0061 – EtherCAT P Box, 4-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8

Beckhoff

EtherCAT P Box, 4-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8

Beckhoff EPP2809-0022 – EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, M12

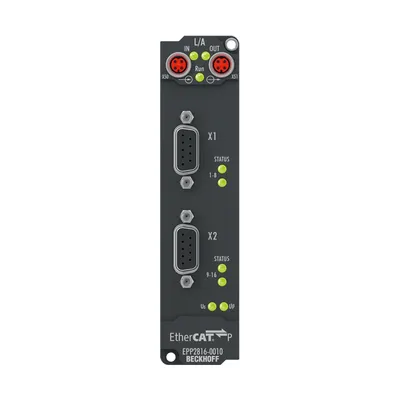

Beckhoff EPP2816-0010 – EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff EPP2008-0001 – EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff EPP2816-0008 – EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff EPP2817-0008 – EtherCAT P Box, 24-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT P Box, 24-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff EPP2338-1001 – EtherCAT P Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8

Beckhoff

EtherCAT P Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8

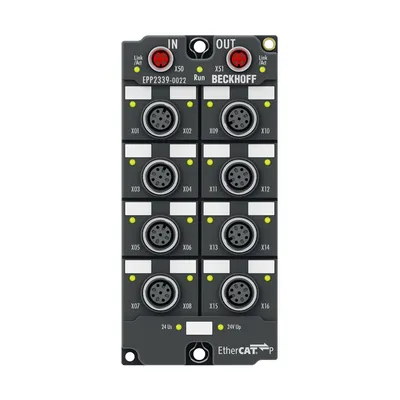

Beckhoff EPP2339-0022 – EtherCAT P Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12

Beckhoff

EtherCAT P Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12

Beckhoff EPP2028-0002 – EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M12

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M12

Beckhoff EPP2338-0002 – EtherCAT P Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff

EtherCAT P Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

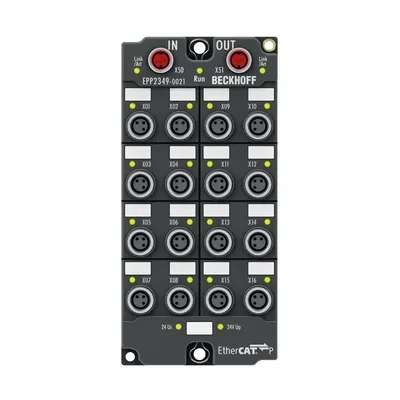

Beckhoff EPP2349-0021 – EtherCAT P Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8

Beckhoff

EtherCAT P Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8

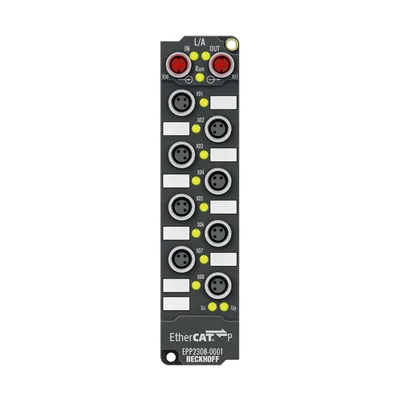

Beckhoff EPP2308-0001 – EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8

Beckhoff

EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8

Beckhoff EPP2038-0001 – EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics

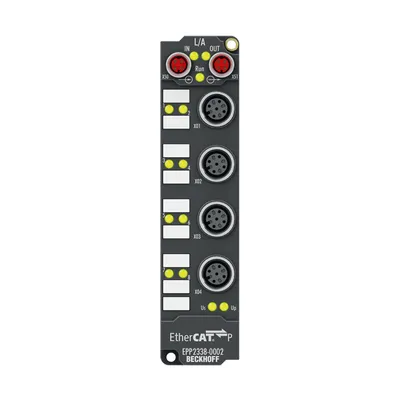

Beckhoff EPP2338-1002 – EtherCAT P Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12

Beckhoff

EtherCAT P Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12

Beckhoff EPP2318-0002 – EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff

EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff EPP2328-0001 – EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8

Beckhoff

EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8

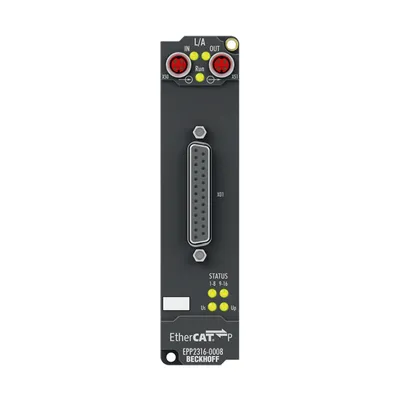

Beckhoff EPP2316-0008 – EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, D-sub

Beckhoff

EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, D-sub

Beckhoff EPP2038-0002 – EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics

Beckhoff EPP2008-0002 – EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M12

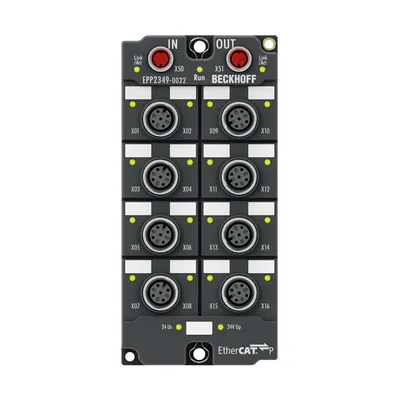

Beckhoff EPP2349-0022 – EtherCAT P Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff

EtherCAT P Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff EPP2318-0001 – EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M8

Beckhoff

EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M8

Compare EPP2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Switching times	Short-circuit current	Auxiliary power current	Weight	Dimensions (W x H x D)
EPP2008-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 20 mA + load	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPP2624-0002	—	—	—	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2316-0003	typ. TON: 25 µs, typ. TOFF: 50 µs	typ. 1.5 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2334-0061	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA	—	30 mm x 86 mm x 22 mm
EPP2809-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 20 mA + load	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPP2816-0010	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2008-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2816-0008	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2817-0008	typ. TON: 10 µs, typ. TOFF: 50 µs	max. 1.0 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2338-1001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2339-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 20 mA	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPP2028-0002	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2338-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2349-0021	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 20 mA	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPP2308-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA per channel	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2038-0001	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2338-1002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2318-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA per channel	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2328-0001	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2316-0008	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 20 mA	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2038-0002	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2008-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA + load	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPP2349-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 20 mA	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPP2318-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	typ. 20 mA per channel	approx. 165 g	30 mm x 126 mm x 26.5 mm

Common to all listed parts

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Load type	ohmic, inductive, lamp load
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL
