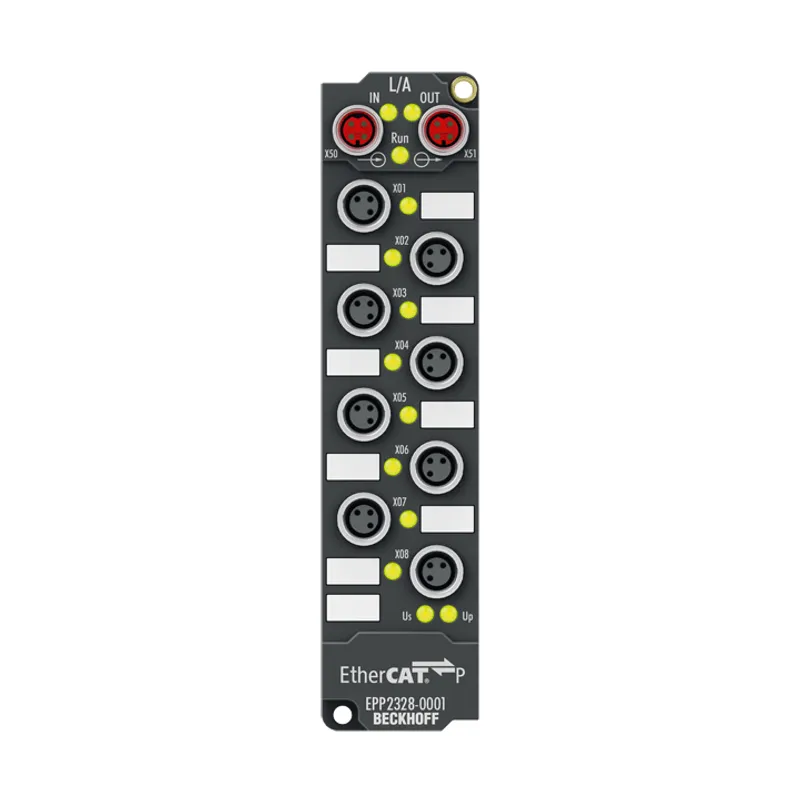

Beckhoff EPP2328-0001
EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8
- MPN
- EPP2328-0001
- Category
- EPP2xxx | Digital output
€422.94excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP2328-0001?
The EPP2328-0001 EtherCAT P Box combines four digital inputs (four M8 sockets at the top) and four digital outputs (four M8 sockets at the bottom) on one device. The inputs have a 3.0 ms filter. The outputs handle load currents of up to 2.0 A, are
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Specification | EN 61131-2, type 1/3 |
| Number of channels | 4 inputs + 4 outputs |
| Input/output connections | M8 x 1, 3-pin, a-coded |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 2 A per channel, individually short-circuit proof, ∑ 3 A |
| Switching times | typ. TON: 200 µs, typ. TOFF: 200 µs |
| Short-circuit current | typ. 15 A |
| Distributed clocks | – |
| Auxiliary power current | typ. 20 mA |
| Electrical isolation | 500 V |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
