Beckhoff EPP2008-0022

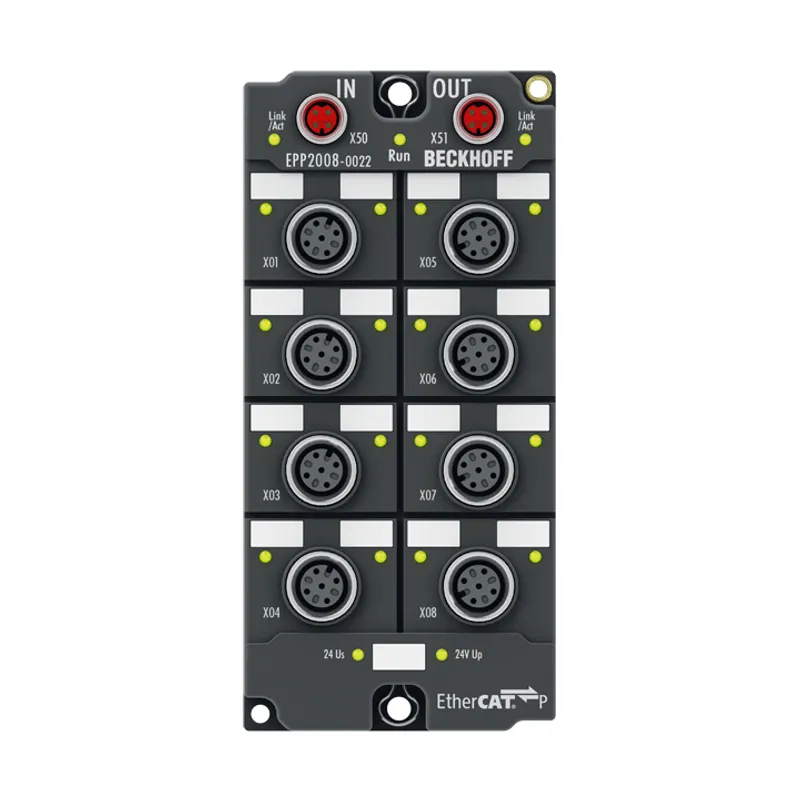

EtherCAT P Box, 8-channel digital output, 24 V DC, 0.5 A, M12

MPN: EPP2008-0022
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2008-0022?

The EPP2008-0022 EtherCAT P Box is designed for processing digital/binary signals. It connects the binary control signals from the automation device on to the actuators at the process level. The outputs can handle output currents up to 0.5 A max.

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of outputs	8
Output connections	M12 x 1, 5-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 3 A
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current	max. 1.5 A
Distributed clocks	–
Current consumption from US	typ. 100 mA
Auxiliary power current	typ. 20 mA + load
Electrical isolation	500 V
Special features	1 output per M12 plug
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
