EPP2xxx | Digital output Parts






EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12

EtherCAT P Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12





EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

EtherCAT P Box, 16-channel digital combi, ID switch, 24 V DC, 3 ms, 0.5 A, IP20 connector
Compare EPP2xxx | Digital output
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Short-circuit current | Auxiliary power current | Weight | Approvals/markings | Dimensions (W x H x D) |
|---|---|---|---|---|---|
| EPP2338-0001 | typ. 1.5 A | typ. 20 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2809-0021 | max. 1.5 A | typ. 20 mA + load | approx. 250 g | CE, UL | 60 mm x 126 mm x 26.5 mm |
| EPP2816-0004 | max. 1.5 A | typ. 20 mA + load | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2339-0021 | typ. 1.5 A | typ. 20 mA | approx. 250 g | CE, UL | 60 mm x 126 mm x 26.5 mm |
| EPP2028-0001 | typ. 15 A | typ. 20 mA + load | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2308-0002 | typ. 1.5 A | typ. 20 mA per channel | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2328-0002 | typ. 15 A | typ. 20 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2339-0003 | typ. 1.5 A | typ. 20 mA | approx. 165 g | CE | — |
| EPP2338-2002 | typ. 1.5 A | typ. 20 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP2596-0002 | — | — | approx. 165 g | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |

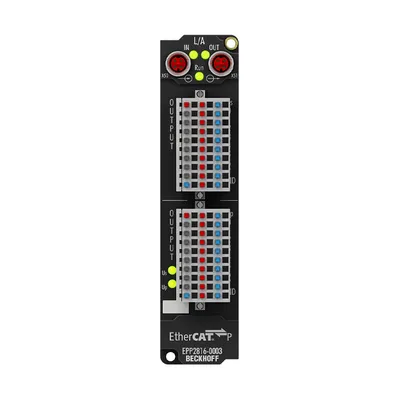

| EPP2816-0003 | max. 1.5 A | typ. 20 mA + load | approx. 165 g | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |
| EPP2839-0022 | max. 1.5 A | typ. 20 mA + load | approx. 250 g | CE, UL (in preparation) | 60 mm x 126 mm x 26.5 mm |
| EPP2339-0703 | typ. 1.5 A | typ. 20 mA | approx. 200 g | CE, UL (in preparation) | 30 mm x 155 mm x 26.5 mm |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
