Beckhoff EPP2624-0002

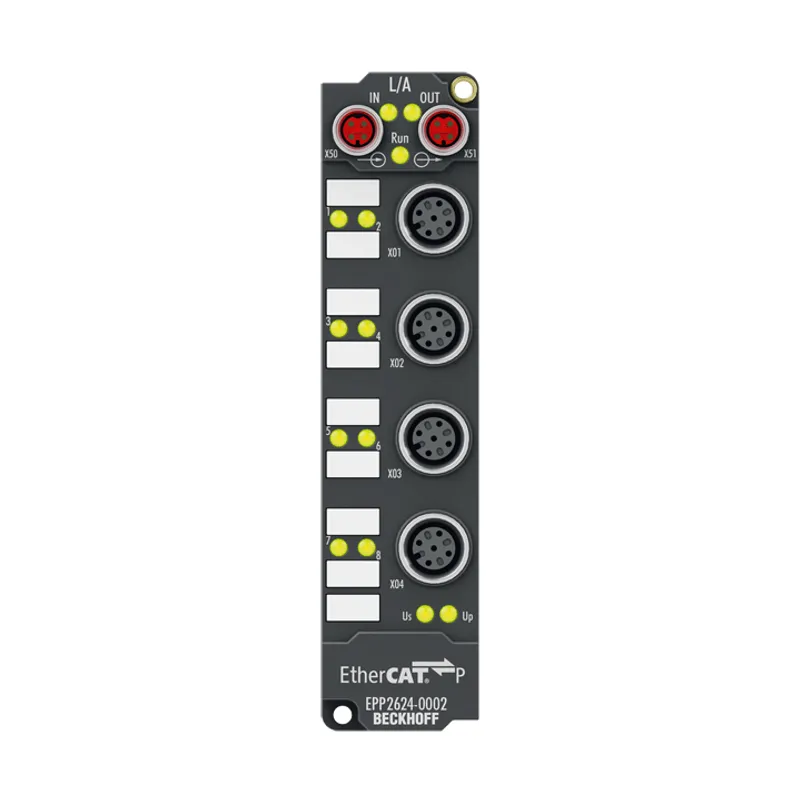

EtherCAT P Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12

MPN: EPP2624-0002
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2624-0002?

The EPP2624-0002 EtherCAT P Box has four relays. Each relay has a make contact, which can be controlled potential-free by the PLC via EtherCAT. The relay contacts can be operated at up to 25 V AC or 30 V DC. The signal state of the individual channels is

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of outputs	4 x make contacts
Output connections	M12 x 1, 5-pin, a-coded
Rated load voltage	25 V AC/30 V DC
Ohmic switching current	0.5 A AC/2 A DC
Minimum permitted load	10 µA at 10 mV DC
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Distributed clocks	–
Current consumption from US	typ. 100 mA
Operating cycles mech. (min.)	1 x 108
Operating cycles electr. (min.)	2 x 105 (1 A/30 V DC)
Electrical isolation	500 V
Special features	potential-free switching
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
