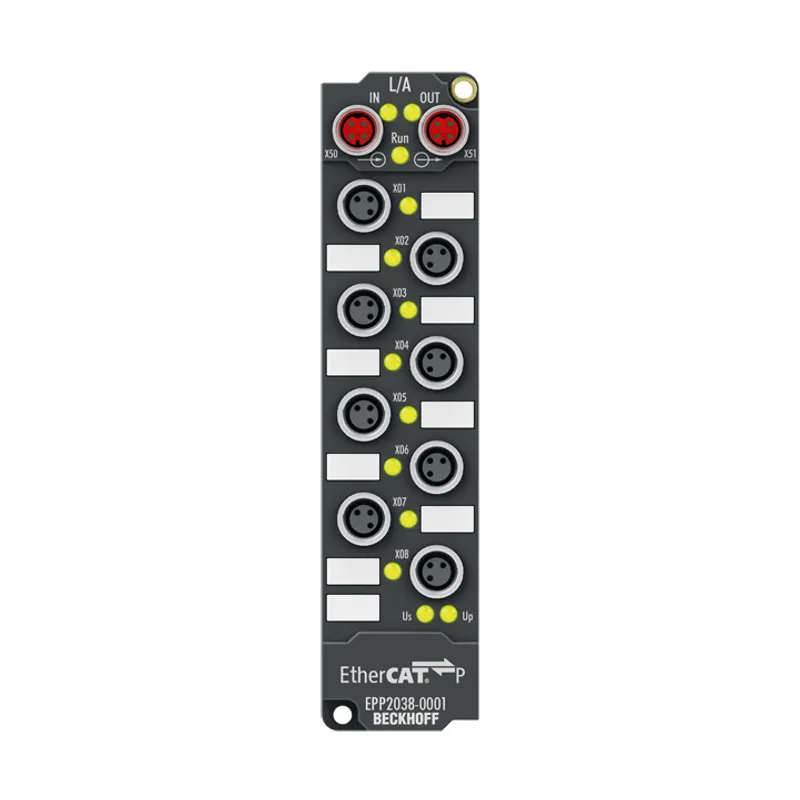

Beckhoff EPP2038-0001

EtherCAT P Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics

MPN: EPP2038-0001
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2038-0001?

The EPP2038-0001 EtherCAT P Box is designed for processing digital/binary signals. It connects the binary control signals from the automation device on to the actuators at the process level. The outputs can handle output currents up to 2.0 A max.

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of outputs	8
Output connections	M8 x 1, 3-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2 A per channel, individually short-circuit proof, ∑ 3 A
Switching times	typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current	typ. 15 A
Distributed clocks	–
Current consumption from US	typ. 100 mA
Auxiliary power current	typ. 20 mA + load
Diagnostics	short-circuit, open load detection (min. load > 200 mA)
Electrical isolation	500 V
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
