EL3xxx | Analog input Parts

Beckhoff EL3443-0010 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 5 A, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 5 A, 24 bit

Beckhoff EL3443-0011 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 0.1 A, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 0.1 A, 24 bit

Beckhoff EL3443-0013 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 333 mV, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 333 mV, 24 bit

Beckhoff EL3403-0010 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 5 A, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 5 A, 16 bit

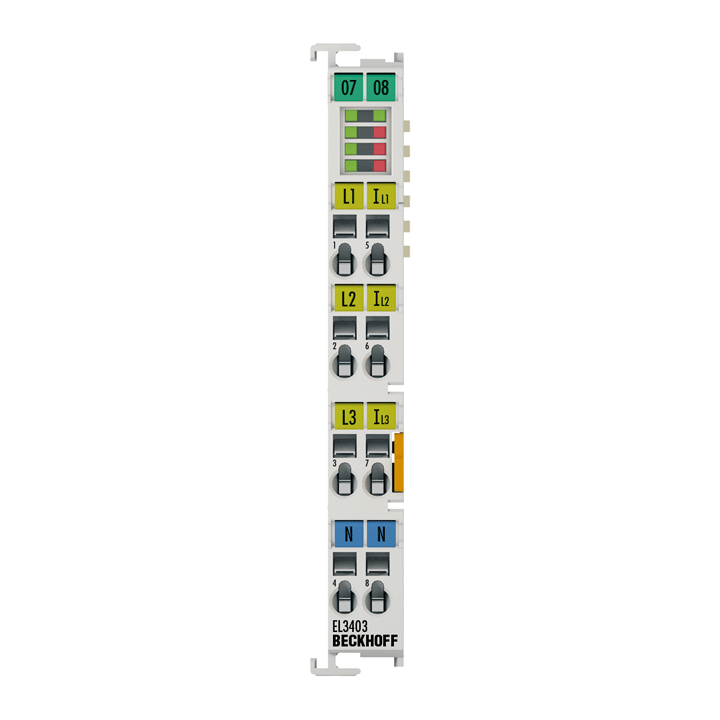

Beckhoff EL3403-0026 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 1 A, 16 bit, without EMC discharge

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 1 A, 16 bit, without EMC discharge

Beckhoff EL3403-0100 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 0.1 A, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 0.1 A, 16 bit

Beckhoff EL3403-0111 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 0.01/0.1/1 A, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 0.01/0.1/1 A, 16 bit

Beckhoff EL3403-0333 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 333 mV, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 333 mV, 16 bit

Beckhoff ELM3002-0205 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

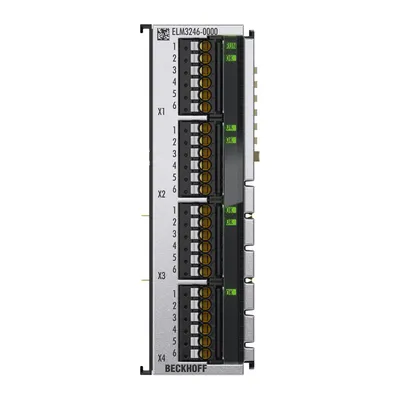

Beckhoff ELM3246-0000 – EtherCAT Terminal, 6-channel analog input, temperature, RTD, 24 bit, high-precision, 1 ksps

Beckhoff

EtherCAT Terminal, 6-channel analog input, temperature, RTD, 24 bit, high-precision, 1 ksps

Beckhoff ELM3244-0000 – EtherCAT Terminal, 4-channel analog input, temperature, RTD, 24 bit, high-precision, 1 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD, 24 bit, high-precision, 1 ksps

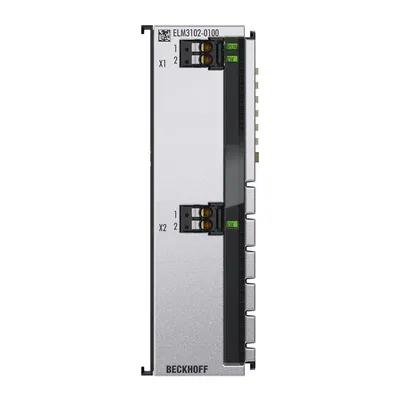

Beckhoff ELM3102-0100 – EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated

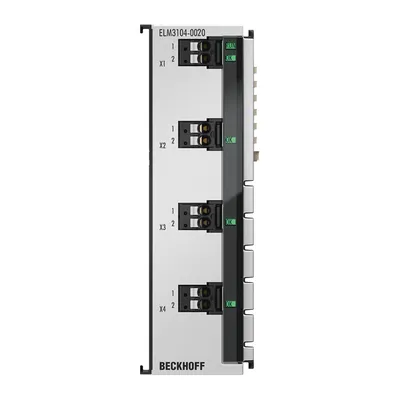

Beckhoff ELM3104-0020 – EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps, factory calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps, factory calibrated

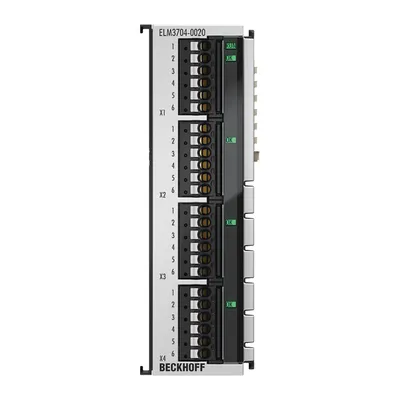

Beckhoff ELM3704-0020 – EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, factory calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, factory calibrated

Beckhoff EL3444 – EtherCAT Terminal, 4-channel analog input, current, 10 A AC/DC, 24 bit, distributed power measurement, electrically isolated

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 10 A AC/DC, 24 bit, distributed power measurement, electrically isolated

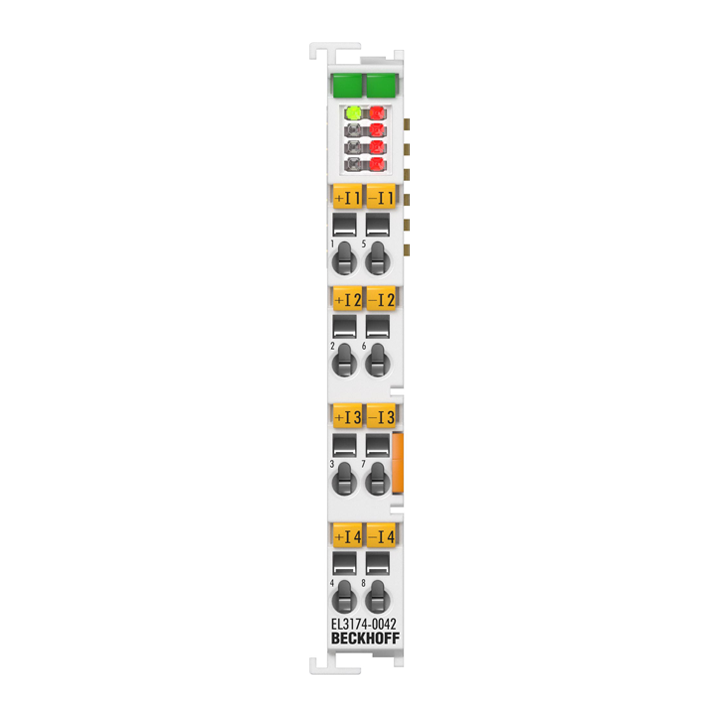

Beckhoff EL3174-0042 – EtherCAT Terminal, 4-channel analog input, multi-function, ±60 V, ±30 V, 16 bit, differential, electrically isolated

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±60 V, ±30 V, 16 bit, differential, electrically isolated

Beckhoff ELM3102-0030 – EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps, externally calibrated

Beckhoff ELM3102-0130 – EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated, externally calibrated

Beckhoff ELM3104-0030 – EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps, externally calibrated

Beckhoff EL4374 – EtherCAT Terminal, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps

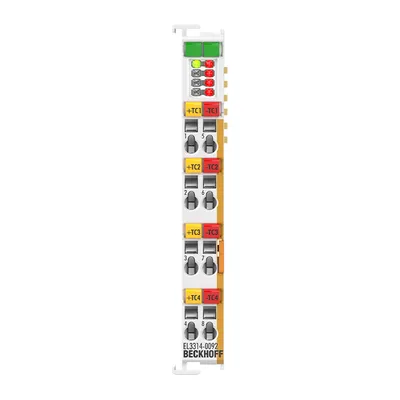

Beckhoff EL3314-0092 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, galvanically isolated, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, galvanically isolated, TwinSAFE SC

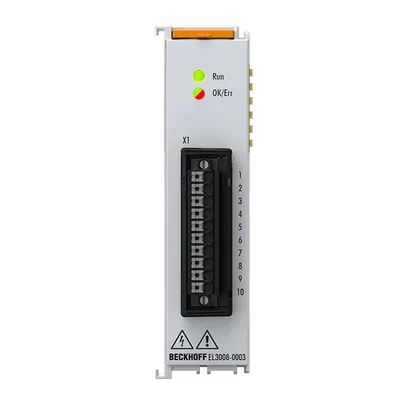

Beckhoff EL3008-0003 – EtherCAT Terminal, 8-channel analog input, voltage, ±3 V, 16 bit, cascaded

Beckhoff

EtherCAT Terminal, 8-channel analog input, voltage, ±3 V, 16 bit, cascaded

Beckhoff EL3361 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 1 x digital input, 1 x digital output

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 1 x digital input, 1 x digital output

Beckhoff EL3361-0100 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 10 V DC

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 10 V DC

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Current consumption E-bus	Current consumption power contacts	Weight	Operating temperature	Dimensions (W x H x D)
EL3443-0010	typ. 120 mA	–	approx. 75 g	-25…+60°C	12 mm x 100 mm x 68 mm
EL3443-0011	typ. 120 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
EL3443-0013	typ. 120 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
EL3403-0010	typ. 120 mA	–	approx. 75 g	-25…+60°C	12 mm x 100 mm x 68 mm
EL3403-0026	typ. 120 mA	–	approx. 75 g	-25…+60°C	12 mm x 100 mm x 68 mm
EL3403-0100	typ. 120 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
EL3403-0111	typ. 120 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
EL3403-0333	typ. 120 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
ELM3002-0205	typ. 460 mA	—	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
ELM3246-0000	typ. 350 mA	—	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
ELM3244-0000	typ. 350 mA	—	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
ELM3102-0100	typ. 390 mA	—	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
ELM3104-0020	typ. 490 mA	–	approx. 350 g	-25…+60°C	30 mm x 100 mm x 95 mm
ELM3704-0020	typ. 890 mA	–	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
EL3444	typ. 160 mA	–	approx. 75 g	0…55°C	12 mm x 100 mm x 68 mm
EL3174-0042	typ. 150 mA	–	approx. 65 g	-25…+60°C	12 mm x 100 mm x 68 mm
ELM3102-0030	typ. 340 mA	–	approx. 350 g	-25…+60°C	30 mm x 100 mm x 95 mm
ELM3102-0130	typ. 390 mA	–	approx. 350 g	0…55°C	30 mm x 100 mm x 95 mm
ELM3104-0030	typ. 490 mA	–	approx. 350 g	-25…+60°C	30 mm x 100 mm x 95 mm
EL4374	typ. 90 mA	typ. 60 mA (load-dependent)	approx. 55 g	0…55°C	12 mm x 100 mm x 68 mm
EL3314-0092	typ. 200 mA	–	approx. 60 g	0…55°C	12 mm x 100 mm x 68 mm
EL3008-0003	typ. 190 mA	—	approx. 90 g	0…55°C	24 mm x 100 mm x 52 mm
EL3361	typ. 90 mA	typ. 30 mA, depends on UExc	approx. 50 g	0…55°C	12 mm x 100 mm x 68 mm
EL3361-0100	typ. 90 mA	typ. 30 mA, depends on UExc	approx. 50 g	0…55°C	12 mm x 100 mm x 68 mm

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
