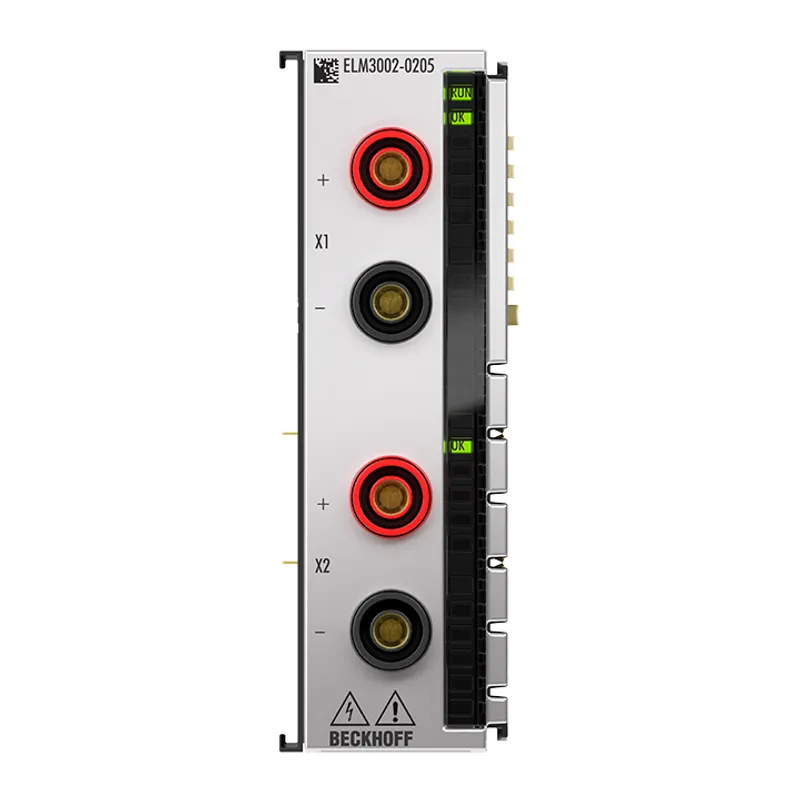

Beckhoff ELM3002-0205
EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket
- MPN
- ELM3002-0205
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ELM3002-0205?
The ELM3002-0205 EtherCAT Terminal of the basic series is designed for high-voltage measurement on batteries and generators and supports the measuring ranges ±60/360/600 and 1200 V. The measuring range is selected in the CoE, as are the other setting
Specifications
Specifications
| Voltage measurement | ±1200/600/360/60 V |
| Number of channels | 2 |
| Technology | voltage measurement |
| Signal type | differential |
| Connection technology | 2-wire |
| Connection type | 4 mm laboratory plug, service plug 1-pin |
| Max. sampling rate | max. 20 µs/50 ksps (per channel, simultaneously) |
| Oversampling factor | n = 1…100 selectable |
| Internal resistance | typ. > 10 MΩ |
| Measurement error/uncertainty | typ. ±200 ppm/±0.02% in some measuring ranges, relative to the respective full scale value (DC), see documentation |
| Temperature coefficient | up to typ. 50 ppm/K in some measuring ranges, see documentation |
| Functional diagnostics | yes |
| Distributed clocks | yes, accuracy 1 µs |
| Resolution | 24 bit (incl. sign) |
| Measurement class/overvoltage class | 1000 V CAT II, 1000 V CAT III (in preparation), 600 V CAT IV (in preparation); according to EN61010-2-030 |
| Electrical isolation | Channel/channel | reinforced insulation, test voltage 6 kV DC, production test |
| Electrical isolation | Channel/bus | reinforced insulation, test voltage 6 kV DC, production test |
| Electrical isolation | Channel/SGND | reinforced insulation, test voltage 6 kV DC, production test |
| Current consumption E-bus | typ. 460 mA |
| Weight | approx. 350 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Thermal dissipation | typ. 3 W |
| Special features | ExtendedRange 107%, free numeric filter, TrueRMS, integrator/differentiator, non-linear scaling, PeakHold |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
| Design form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | – |
| Wiring | touch-protected 4 mm plug (laboratory plug, banana plug) |
| Connection cross-section | s*: 0.2…1.5 mm², st*: 0.2…1.5 mm², f*: 0.25…0.75 mm² |
| Connection cross-section AWG | s*: AWG24…14, st*: AWG24…14, f*: AWG24…14 |
| Stripping length | 8…9 mm |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
