Home / I/O / EtherCAT Terminals / EL3xxx | Analog input

EL3xxx | Analog input Parts

Beckhoff ELM3142-0000 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Beckhoff ELX3351-0090 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i, TwinSAFE SC

Beckhoff ELX3314-0090 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC

Beckhoff ELX3312-0090 – EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC

Beckhoff ELX3204-0090 – EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC

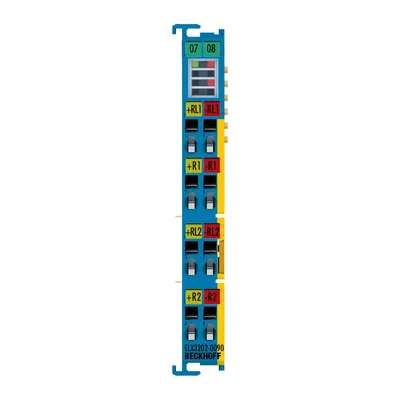

Beckhoff ELX3202-0090 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC

Beckhoff ELX3152-0090 – EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i, TwinSAFE SC

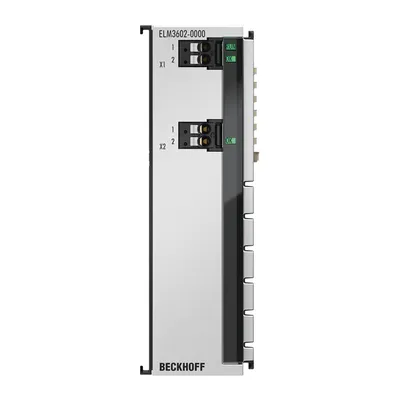

Beckhoff ELM3602-0000 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps

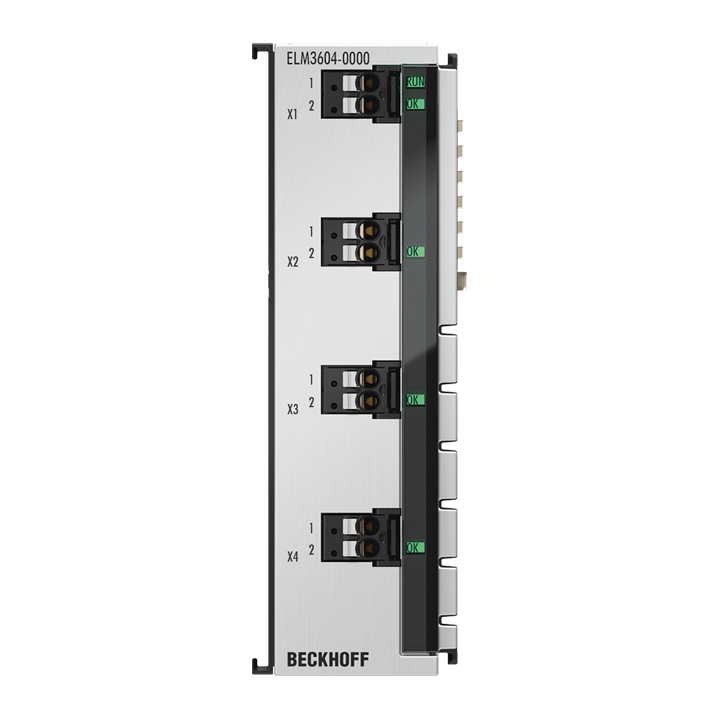

Beckhoff ELM3604-0000 – EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps

Beckhoff EL3453 – EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated

Beckhoff EL3483-0060 – EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit, with analog values

Beckhoff

EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit, with analog values

Beckhoff EL3702-0015 – EtherCAT Terminal, 2-channel analog input, voltage, ±150 mV, 16 bit, oversampling

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±150 mV, 16 bit, oversampling

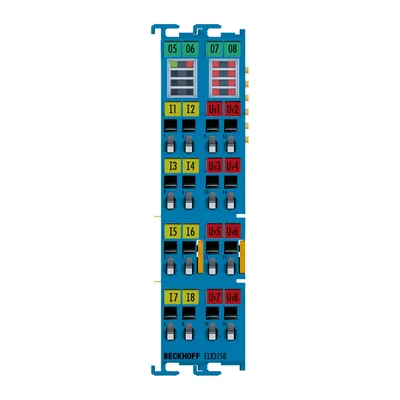

Beckhoff ELX3158 – EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 16 bit, single-ended, Ex i

Beckhoff

EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 16 bit, single-ended, Ex i

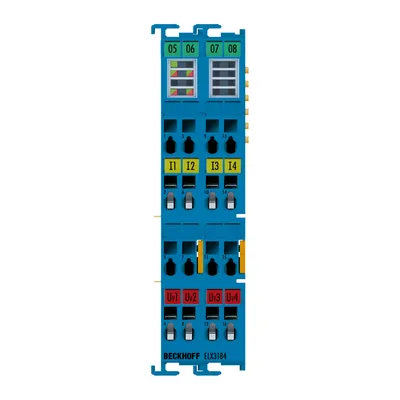

Beckhoff ELX3184 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i

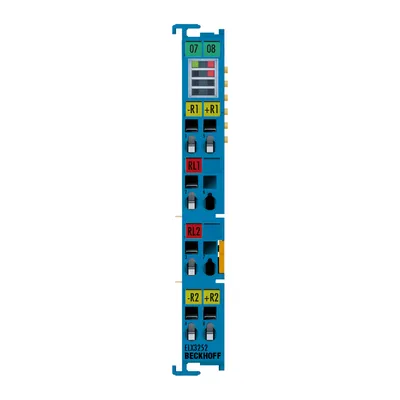

Beckhoff ELX3252 – EtherCAT Terminal, 2-channel analog input, potentiometer, 300 Ω…40 kΩ, 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 2-channel analog input, potentiometer, 300 Ω…40 kΩ, 16 bit, Ex i

Beckhoff EL3314-0030 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, externally calibrated

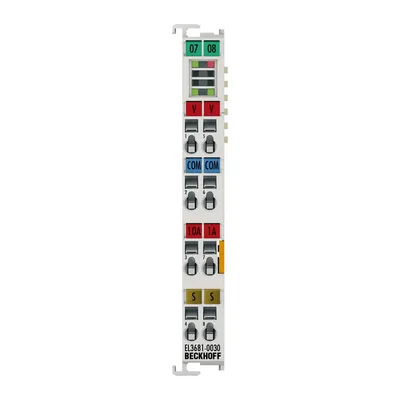

Beckhoff EL3681-0030 – EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit, externally calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit, externally calibrated

Beckhoff EL3202-0030 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated

Beckhoff EL3201-0030 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated

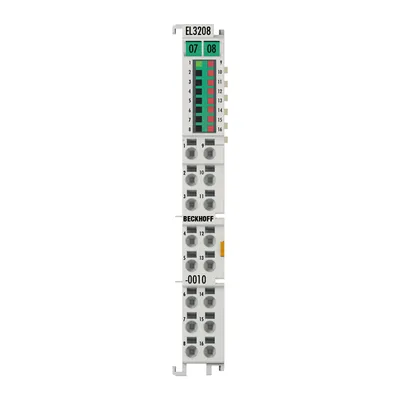

Beckhoff EL3208-0010 – EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt1000, NTC), 16 bit

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt1000, NTC), 16 bit

Beckhoff EL3446 – EtherCAT Terminal, 6-channel analog input, current, 1 A, 24 bit, distributed power measurement

Beckhoff

EtherCAT Terminal, 6-channel analog input, current, 1 A, 24 bit, distributed power measurement

Beckhoff ELM3544-0000 – EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps

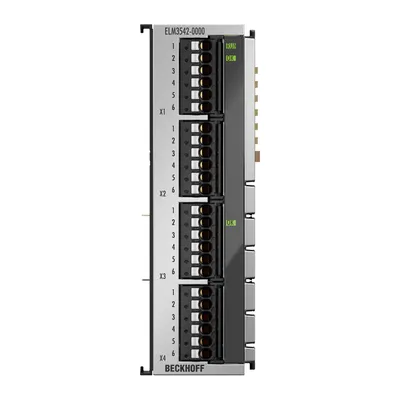

Beckhoff ELM3542-0000 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps, TEDS

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps, TEDS

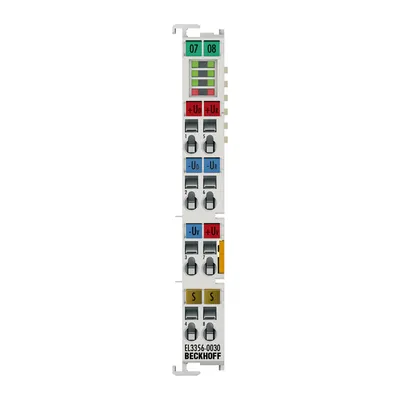

Beckhoff EL3356-0030 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, externally calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, externally calibrated

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Current consumption E-bus	Weight	Operating temperature	Approvals/markings	Material
ELM3142-0000	typ. 250 mA	approx. 350 g	-25…+60°C	CE, UL	zinc die-cast
ELX3351-0090	typ. 85 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3314-0090	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3312-0090	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3204-0090	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3202-0090	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3152-0090	typ. 85 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELM3602-0000	typ. 460 mA	approx. 350 g	-25…+60°C	CE, UL	zinc die-cast
ELM3604-0000	typ. 650 mA	approx. 350 g	-25…+60°C	CE, UL	zinc die-cast
EL3453	typ. 260 mA	—	-25…+60°C	CE, UL	polycarbonate
EL3483-0060	typ. 120 mA	approx. 75 g	-25…+60°C	CE, UL	polycarbonate
EL3702-0015	typ. 200 mA	approx. 60 g	0…55°C	CE	polycarbonate
ELX3158	typ. 75 mA	approx. 100 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
ELX3184	typ. 60 mA	approx. 90 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus	polycarbonate, blue
ELX3252	typ. 70 mA	approx. 70 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC	polycarbonate, blue
EL3314-0030	typ. 200 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	polycarbonate
EL3681-0030	150 mA	approx. 70 g	-25…+60°C	CE	polycarbonate
EL3202-0030	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	polycarbonate
EL3201-0030	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	polycarbonate
EL3208-0010	typ. 95 mA	approx. 60 g	-25…+60°C	CE, UL	polycarbonate
EL3446	typ. 120 mA	approx. 75 g	0…55°C	CE, UL	polycarbonate
ELM3544-0000	typ. 85 mA	approx. 350 g	0…55°C	CE	zinc die-cast
ELM3542-0000	typ. 85 mA	approx. 350 g	0…55°C	CE	zinc die-cast
EL3356-0030	typ. 280 mA	approx. 60 g	-25…+55°C	CE, UL, ATEX, IECEx	polycarbonate

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Stripping length	8…9 mm
