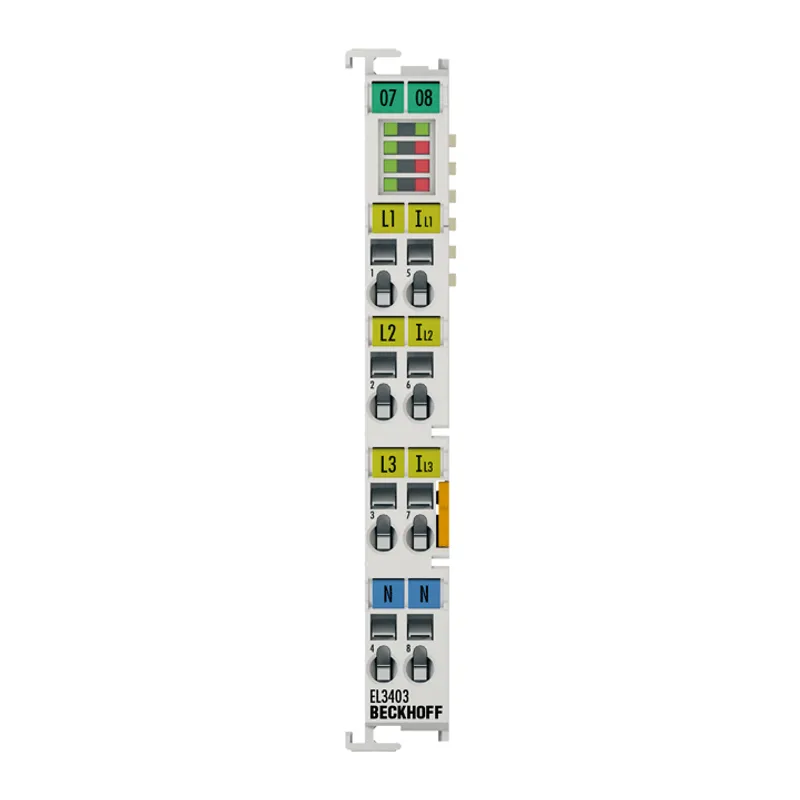

EL3403-0010EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 5 A, 16 bit
Beckhoff EL3403-0333
EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 333 mV, 16 bit
- MPN
- EL3403-0333
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff EL3403-0333?
The EL3403 EtherCAT Terminal enables the measurement of all relevant electrical data of the supply network. The voltage is measured via the direct connection of L1, L2, L3 and N. The current of the three phases L1, L2 and L3 is fed via simple current
Specifications
Specifications
| Number of inputs | 3 x current, 3 x voltage |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Ground reference (input) | single-ended |
| Oversampling factor | – |
| Distributed clocks | – |
| Conversion time | mains-synchronous |
| Measured values | current, voltage, effective power, energy, cos φ, peak values U, I and P, frequency |
| Measuring voltage | max. 500 V AC 3~ (ULX-N: max. 288 V AC) |
| Measuring current | max. 1 A (AC), via measuring transformers x A/1 A |
| Resolution | 1 μA, 0.1 mV, 10 mW |
| Measurement error/uncertainty | 0.5% relative to full scale value (U/I), 1% calculated value |
| Measuring procedure | true RMS |
| Update time | net-synchronous |
| Electrical isolation | 1500 V (E-bus/field potential) |
| Current consumption E-bus | typ. 120 mA |
| Current consumption power contacts | – |
| Bit width in the process image | 62 byte PM input, 3 byte PM output |
| Special features | true RMS value calculation, optional single-phase operation |
| Weight | approx. 75 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Pluggable wiring | for all ESxxxx terminals |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
