EL3xxx | Analog input Parts

Beckhoff ELM3504-0030 – EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps, externally calibrated

Beckhoff ELM3502-0030 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps, externally calibrated

Beckhoff EL3692-0030 – EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit, externally calibrated

Beckhoff ELM3002-0030 – EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps, externally calibrated

Beckhoff ELM3004-0030 – EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps, externally calibrated

Beckhoff EL3204-0162 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, RTD (Pt100), 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, RTD (Pt100), 12 bit, single-ended

Beckhoff EL3218 – EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

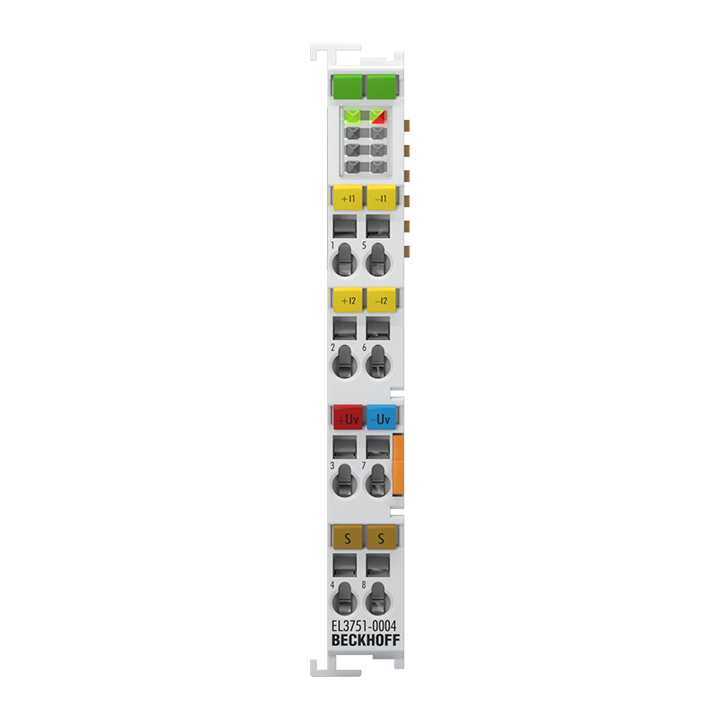

Beckhoff EL3751-0004 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps

Beckhoff EL3751-0024 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps, factory calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps, factory calibrated

Beckhoff EL3443-0020 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit, factory calibrated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit, factory calibrated

Beckhoff EL3453-0020 – EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, factory calibrated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, factory calibrated

Beckhoff EL3453-0100 – EtherCAT Terminal, 3-channel analog input, power measurement, 130 V AC, 0.1/1/5 A, 24 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 130 V AC, 0.1/1/5 A, 24 bit, electrically isolated

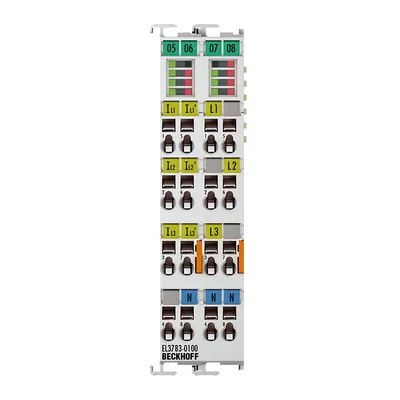

Beckhoff EL3783-0100 – EtherCAT Terminal, 3-channel analog input, multi-function, 130 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling

Beckhoff

EtherCAT Terminal, 3-channel analog input, multi-function, 130 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling

Beckhoff ELM3344-0000 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps

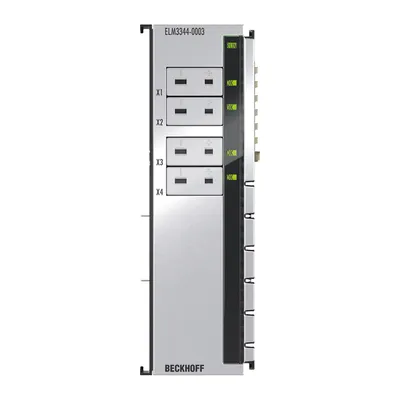

Beckhoff ELM3344-0003 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal

Beckhoff ELM3348-0000 – EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps

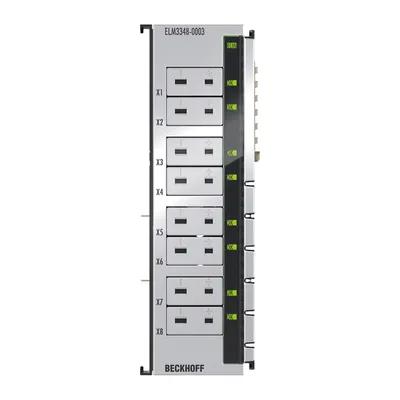

Beckhoff ELM3348-0003 – EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal

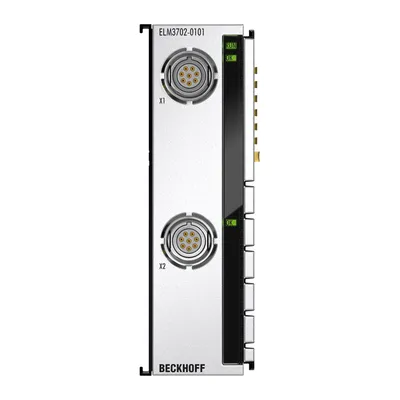

Beckhoff ELM3702-0101 – EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps, electrically isolated, LEMO

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps, electrically isolated, LEMO

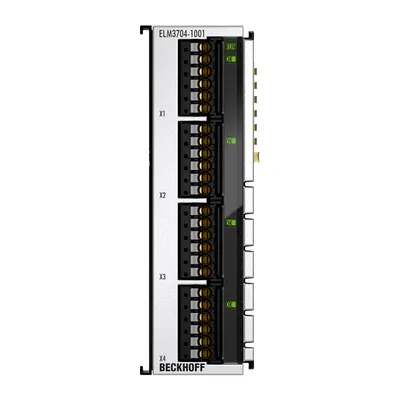

Beckhoff ELM3704-1001 – EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, TC compensation

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, TC compensation

Beckhoff EL3072 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff EL3074 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff EL3172 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated

Beckhoff EL3174-0030 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, externally calibrated

Beckhoff EL3142-0010 – EtherCAT Terminal, 2-channel analog input, current, ±10 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, ±10 mA, 16 bit, single-ended

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distributed clocks	Current consumption E-bus	Weight	Approvals/markings	Dimensions (W x H x D)
ELM3504-0030	yes, accuracy 1 µs	typ. 720 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3502-0030	yes, accuracy 1 µs	typ. 450 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
EL3692-0030	–	typ. 220 mA	approx. 55 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
ELM3002-0030	yes, accuracy 1 µs	typ. 330 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3004-0030	yes, accuracy 1 µs	typ. 470 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
EL3204-0162	–	typ. 130 mA	approx. 60 g	CE, UL	12 mm x 100 mm x 68 mm
EL3218	–	typ. 120 mA	approx. 60 g	CE, UL	24 mm x 100 mm x 68 mm
EL3751-0004	yes	typ. 260 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3751-0024	yes	typ. 260 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3443-0020	optional	typ. 120 mA	approx. 75 g	CE, UL	12 mm x 100 mm x 68 mm
EL3453-0020	optional	typ. 260 mA	—	CE, UL	24 mm x 100 mm x 68 mm
EL3453-0100	optional	typ. 260 mA	—	CE, UL	24 mm x 100 mm x 68 mm
EL3783-0100	yes	typ. 260 mA	approx. 100 g	CE, UL	24 mm x 100 mm x 68 mm
ELM3344-0000	yes, accuracy 1 µs	typ. 220 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3344-0003	yes, accuracy 1 µs	typ. 220 mA	approx. 350 g	CE	30 mm x 100 mm x 95 mm
ELM3348-0000	yes, accuracy 1 µs	typ. 260 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3348-0003	yes, accuracy 1 µs	typ. 260 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3702-0101	yes, accuracy 1 µs	typ. 580 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3704-1001	yes, accuracy 1 µs	typ. 890 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
EL3072	–	typ. 125 mA	approx. 65 g	CE	12 mm x 100 mm x 68 mm
EL3074	–	typ. 125 mA	approx. 65 g	CE	12 mm x 100 mm x 68 mm
EL3172	yes	typ. 150 mA	approx. 65 g	CE, UL	12 mm x 100 mm x 68 mm
EL3174-0030	yes	typ. 180 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3142-0010	yes	typ. 170 mA	approx. 60 g	CE, UL	12 mm x 100 mm x 68 mm

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
