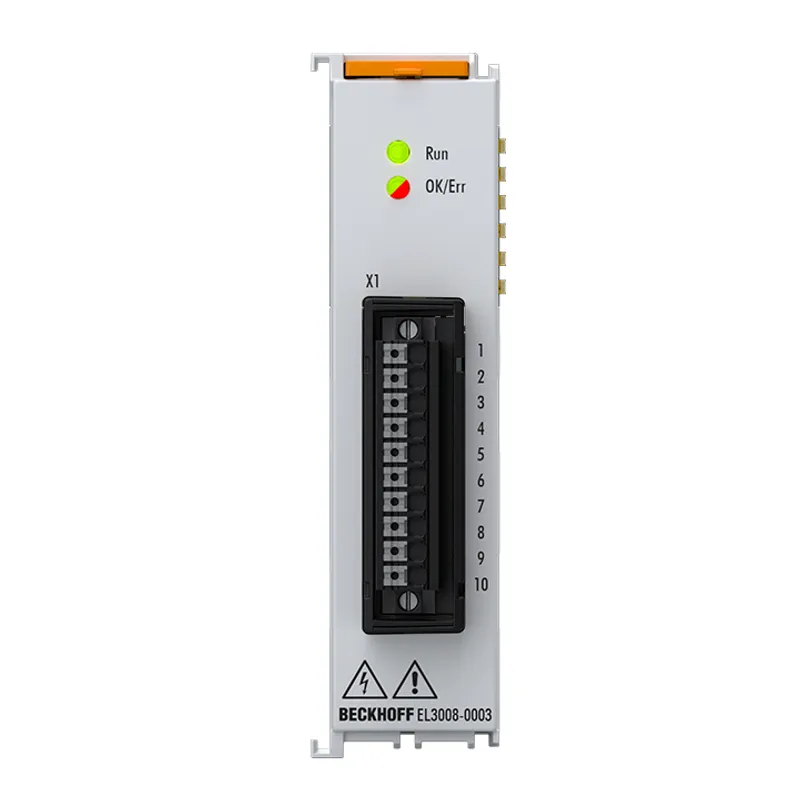

EtherCAT Terminal, 8-channel analog input, voltage, ±3 V, 16 bit, cascaded
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL3xxx | Analog input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL3008-0003 be shipped?
EL3008-0003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL3008-0003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL3008-0003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL3008-0003, subject to availability and destination.
The EL3008-0003 is designed for measuring stacked voltages up to 1500 V CAT II, such as those found in accumulators and fuel cells. The negative pole of one cell is also the positive pole of the next. In combination with the high galvanic isolation to
Specifications
Specifications
| Number of inputs | 8 |
| Function | voltage measurement |
| Wiring | specific push-in connection |
| Ground reference (input) | cascaded channels |
| Max. sampling rate | min. 2 ms (max. 500 sps) per channel |
| Sampling type | multiplex |
| Internal resistance | > 8 MΩ |
| Input filter limit frequency | 1.5 kHz |
| Rise time | typ. 2 ms |
| Dielectric strength | ±13 V per channel to AGND |
| Measuring range, nominal | -3…+3 V |
| Measuring range, technical | -3.22…+3.22 V |
| Resolution | 16 bit (incl. sign) |
| Measurement error/uncertainty | ±0.1% (at 25°C ±5°C, otherwise ±0.2%) |
| Measurement class/overvoltage class | 300 V CAT II, 1500 V CAT II with touch protection cover; to EN61010-2-030 |
| Electrical isolation | Channel/channel | – |
| Electrical isolation | Channel/SGND | reinforced insulation, test voltage 6 kV DC, production test |
| Electrical isolation | Channel/bus | reinforced insulation, test voltage 6 kV DC, production test |
| Power supply | via the E-bus |
| Distributed clocks | – |
| Current consumption E-bus | typ. 190 mA |
| Special features | cascaded channels, ExtendedRange 107%, FIR/IIR filter activatable |
| Weight | approx. 90 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | – |
| Dimensions (W x H x D) | 24 mm x 100 mm x 52 mm |
