EL3xxx | Analog input Parts

Beckhoff ELM3502-0000 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps

Beckhoff ELM3504-0000 – EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps

Beckhoff ELM3102-0000 – EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps

Beckhoff ELM3104-0000 – EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps

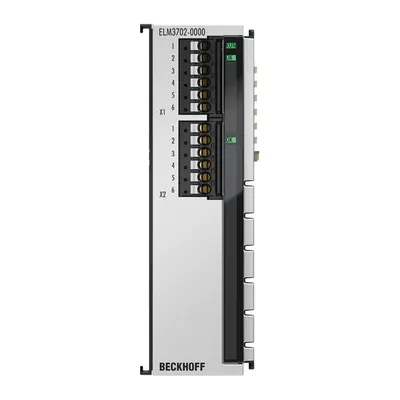

Beckhoff ELM3702-0000 – EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff ELM3704-0000 – EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff ELM3704-0001 – EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, LEMO

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, LEMO

Beckhoff ELX3152 – EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i

Beckhoff ELX3181 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i

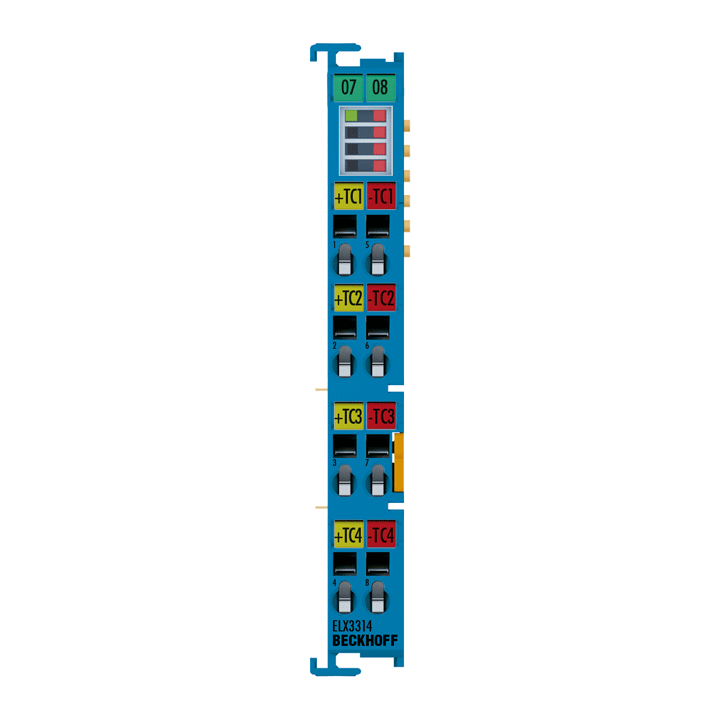

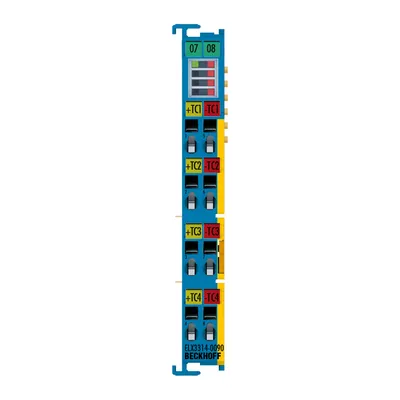

Beckhoff ELX3314 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i

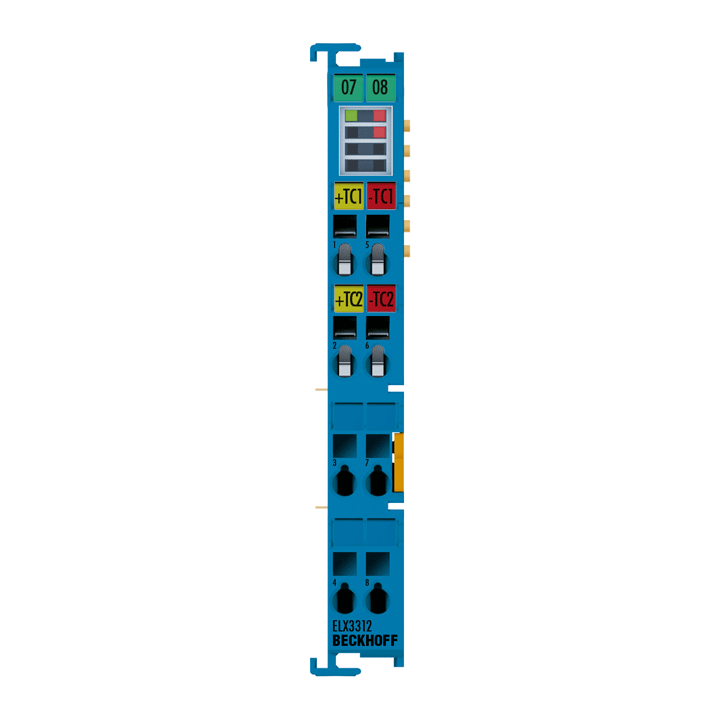

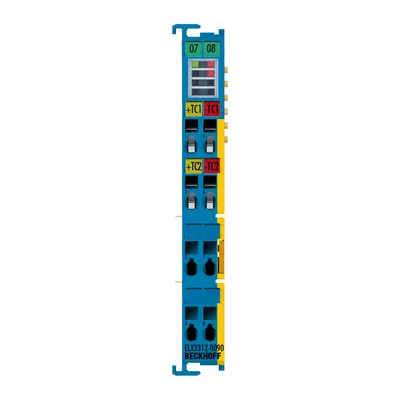

Beckhoff ELX3312 – EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i

Beckhoff ELX3204 – EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i

Beckhoff ELX3202 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i

Beckhoff EL3174-0032 – EtherCAT Terminal, 4-channel analog input, multi-function, ±3 V, ±20 mA, 16 bit, differential, electrically isolated

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±3 V, ±20 mA, 16 bit, differential, electrically isolated

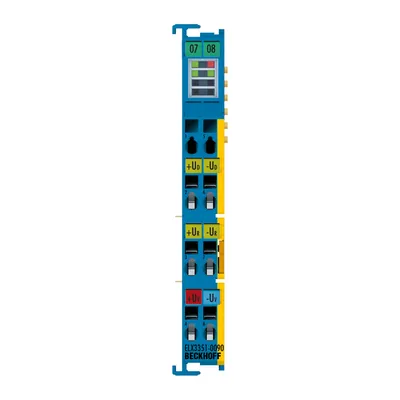

Beckhoff ELX3351 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i

Beckhoff EL3483 – EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit

Beckhoff EL3423 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit

Beckhoff EL3443 – EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit

Beckhoff EL3314-0002 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, electrically isolated

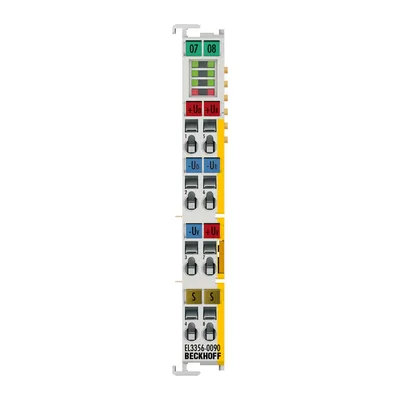

Beckhoff EL3356-0090 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, TwinSAFE SC

Beckhoff EL3174-0090 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, TwinSAFE SC

Beckhoff ELM3148-0000 – EtherCAT Terminal, 8-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Beckhoff

EtherCAT Terminal, 8-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

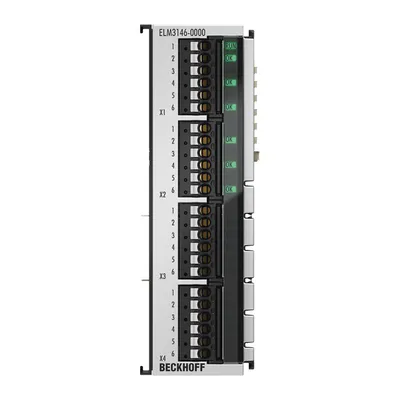

Beckhoff ELM3146-0000 – EtherCAT Terminal, 6-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Beckhoff

EtherCAT Terminal, 6-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

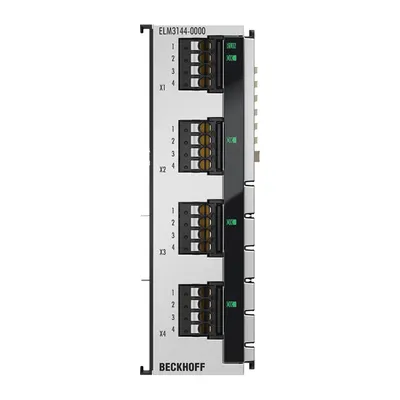

Beckhoff ELM3144-0000 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distributed clocks	Current consumption E-bus	Weight	Operating temperature	Approvals/markings
ELM3502-0000	yes, accuracy 1 µs	typ. 450 mA	approx. 350 g	-25…+60°C	CE, UL
ELM3504-0000	yes, accuracy 1 µs	typ. 720 mA	approx. 350 g	0…55°C	CE, UL
ELM3102-0000	yes, accuracy 1 µs	typ. 340 mA	approx. 350 g	-25…+60°C	CE, UL
ELM3104-0000	yes, accuracy 1 µs	typ. 490 mA	approx. 350 g	-25…+60°C	CE, UL
ELM3702-0000	yes, accuracy 1 µs	typ. 530 mA	approx. 350 g	0…55°C	CE, UL
ELM3704-0000	yes, accuracy 1 µs	typ. 890 mA	approx. 350 g	0…55°C	CE, UL
ELM3704-0001	yes, accuracy 1 µs	typ. 890 mA	approx. 350 g	0…55°C	CE, UL
ELX3152	yes	typ. 85 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
ELX3181	yes	typ. 85 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
ELX3314	—	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
ELX3312	—	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
ELX3204	—	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
ELX3202	—	typ. 70 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
EL3174-0032	yes	typ. 150 mA	approx. 65 g	-25…+60°C	CE, CCC, ATEX, IECEx, cFMus
ELX3351	—	typ. 85 mA	approx. 60 g	-25…+60°C	CE, UL, ATEX, IECEx, cFMus, CCC
EL3483	–	typ. 120 mA	approx. 75 g	-25…+60°C	CE, UL
EL3423	–	typ. 120 mA	approx. 75 g	-25…+60°C	CE, UL
EL3443	optional	typ. 120 mA	approx. 75 g	-25…+60°C	CE, UL
EL3314-0002	–	typ. 200 mA	approx. 60 g	-25…+60°C	CE, UL
EL3356-0090	yes	typ. 280 mA	approx. 60 g	-25…+55°C	CE, UL, ATEX, IECEx
EL3174-0090	yes	typ. 200 mA	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
ELM3148-0000	yes, accuracy 1 µs	typ. 270 mA	approx. 350 g	-25…+60°C	CE, UL
ELM3146-0000	yes, accuracy 1 µs	typ. 250 mA	approx. 350 g	-25…+60°C	CE, UL
ELM3144-0000	yes, accuracy 1 µs	typ. 250 mA	approx. 350 g	-25…+60°C	CE, UL

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
