EL3202-0010EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

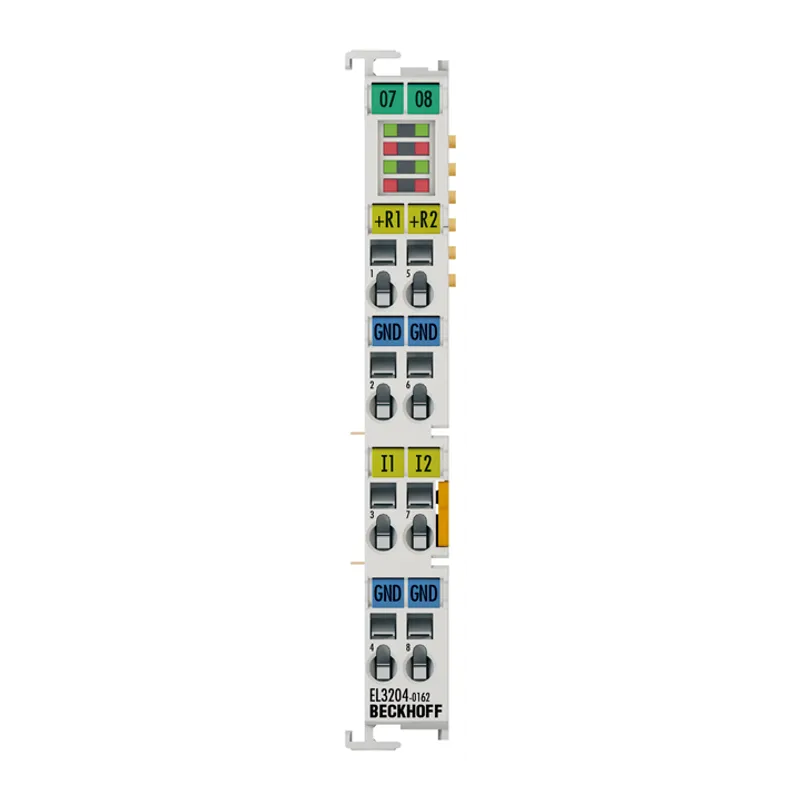

Beckhoff EL3204-0162
EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, RTD (Pt100), 12 bit, single-ended
- MPN
- EL3204-0162
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff EL3204-0162?
The EL3204-0162 analog input terminal allows the direct connection of resistance sensors for temperature measurement on two channels and at the same time the connection of two 10 V signals on two further channels. The EtherCAT Terminal circuit can
Specifications
Specifications
| Number of inputs | 2 x Pt100, 2 x -10…+10 V |
| Power supply | via the E-bus |
| Signal voltage | -10/0…+10 V |
| Distributed clocks | – |
| Internal resistance | > 130 kΩ |
| Input filter limit frequency | typ. 1 kHz |
| Dielectric strength | max. 30 V |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…4 kΩ), KTY sensors (types see documentation) |
| Connection method | 2-wire |
| Conversion time | RTD measurement: 85 ms default setting, 2…800 ms configurable, voltage measurement: 0.625 ms default setting, configurable, multiplex |
| Measuring current | 0.5 mA (load-dependent) |
| Temperature range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Resolution | RTD measurement: 0.1°C or 0.01°C per digit, voltage measurement: 12 bit (16 bit presentation, incl. sign) |
| Measurement error/uncertainty | RTD measurement: ±0.5°C for Pt sensors, voltage measurement: ±0.3% (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Current consumption power contacts | – |
| Special features | integrated digital filter, limit value monitoring |
| Weight | approx. 60 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Pluggable wiring | for all ESxxxx terminals |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
