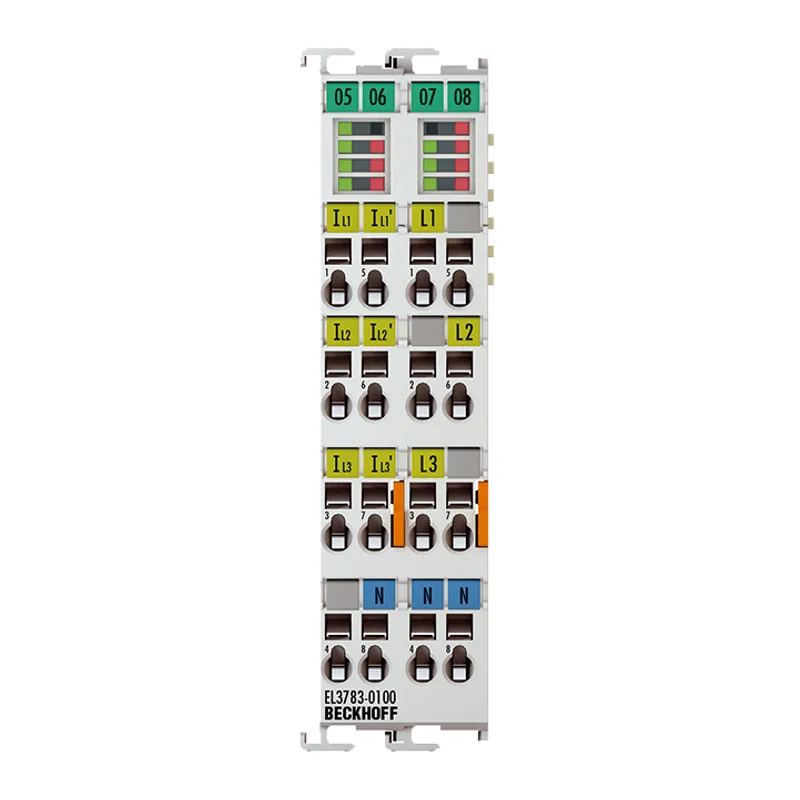

EtherCAT Terminal, 3-channel analog input, multi-function, 130 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL3xxx | Analog input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL3783-0100 be shipped?
EL3783-0100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL3783-0100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL3783-0100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL3783-0100, subject to availability and destination.
The EL3783-0100 EtherCAT Terminal is a power monitoring I/O terminal used for state monitoring of a 3-phase AC voltage system. For each phase, voltage up to 400/690 Vrms and current up to 1 Arms/5 Arms are sampled as instantaneous values with a
Specifications
Specifications
| Number of inputs | 3 x current, 3 x voltage |
| Oversampling factor | n = 1…100 selectable |
| Distributed clocks | yes |
| Conversion time | 50 µs, all channels simultaneously |
| Measured values | current (I1, I2, I3), voltage as instantaneous values (oversampling) |
| Measuring voltage | max. 130 V AC for voltage transformer |
| Measuring current | max. 1 A (AC)/5 A (AC), via measuring transformers x A AC/1 A AC or 5 A AC |
| Measuring range, technical | generally 130% of the nominal measuring range, see documentation |
| Resolution | 16 bit (incl. sign) |
| Measurement error/uncertainty | 0.2% relative to full scale value |
| Electrical isolation | 4500 V |
| Current consumption E-bus | typ. 260 mA |
| Current consumption power contacts | – |
| Special features | oversampling, AC measurement, optional single-phase operation, adjustable automatic switch of current measuring range, electrically isolated current inputs |
| Weight | approx. 100 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
