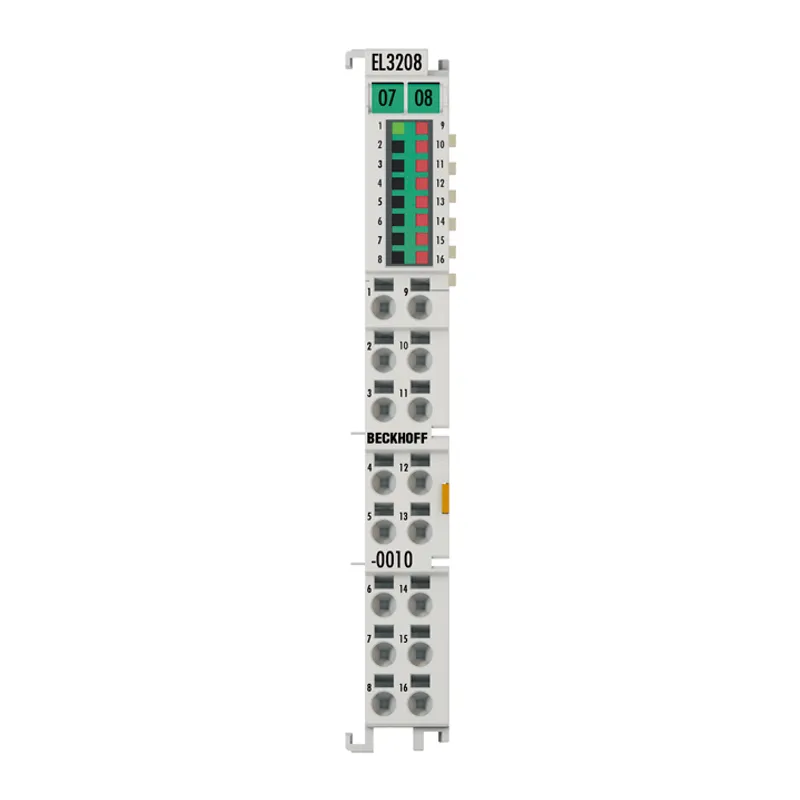

Beckhoff EL3208-0010

EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt1000, NTC), 16 bit

MPN: EL3208-0010
Category: EL3xxx | Analog input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL3208-0010?

The EL3208-0010 analog input terminal facilitates the direct connection of eight resistance sensors over a width of 12 mm (high-density housing). The measured resistance value can either be output directly in ohms or transformed into a temperature. If

Specifications

Number of inputs	8
Power supply	via the E-bus
Distributed clocks	–
Input filter limit frequency	typ. 1 kHz
Sensor types	Pt1000 (default), Ni1000, potentiometer 1/5/10 kΩ, NTC 1.8 k/2.2 k/3 k/5 k/10 k/20 k/100 k
Connection method	2-wire
Conversion time	~ 1 s
Measuring range	-50…+150°C (depending on sensor type)
Measuring current	0.5 mA (load-dependent)
Resolution	0.01°C per digit
Measurement error/uncertainty	-20…+60°C: ±0.25°C at 25°C ambient temperature; -50…+150°C: ±1.5°C (for Pt/Ni sensors)
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption E-bus	typ. 95 mA
Current consumption power contacts	–
Special features	integrated digital filter, limit value monitoring
Weight	approx. 60 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG28…16, st: AWG22…16, f*: AWG26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
