Home / I/O / EtherCAT Terminals / EL3xxx | Analog input

EL3xxx | Analog input Parts

Beckhoff EL3612 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision

Beckhoff EL3602 – EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision

Beckhoff EL3312 – EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit

Beckhoff EL3311 – EtherCAT Terminal, 1-channel analog input, temperature, thermocouple, 16 bit

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, thermocouple, 16 bit

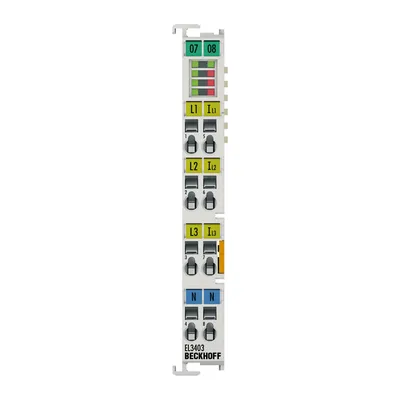

Beckhoff EL3403 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 1 A, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 1 A, 16 bit

Beckhoff EL3356 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

Beckhoff EL3314 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit

Beckhoff EL3751-0020 – EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps, factory calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps, factory calibrated

Beckhoff EL3783 – EtherCAT Terminal, 3-channel analog input, multi-function, 690 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling

Beckhoff

EtherCAT Terminal, 3-channel analog input, multi-function, 690 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling

Beckhoff EL3621-0020 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 24 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 24 bit, high-precision, factory calibrated

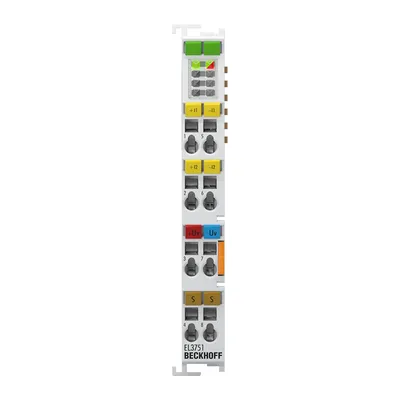

Beckhoff EL3751 – EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps

Beckhoff EL3773 – EtherCAT Terminal, 3-channel analog input, multi-function, 500 V AC/DC, 1 A, 16 bit, 10 ksps, oversampling

Beckhoff

EtherCAT Terminal, 3-channel analog input, multi-function, 500 V AC/DC, 1 A, 16 bit, 10 ksps, oversampling

Beckhoff EL3692 – EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit

Beckhoff

EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit

Beckhoff EL3632 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps

Beckhoff EL3681 – EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit

Beckhoff

EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit

Beckhoff EL3742 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, oversampling

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, oversampling

Beckhoff EL3702 – EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, oversampling

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, oversampling

Beckhoff EM3712 – EtherCAT Terminal, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar)

Beckhoff

EtherCAT Terminal, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar)

Beckhoff EM3702 – EtherCAT Terminal, 2-channel analog input, relative pressure, 0...7500 hPa (0…+7.5 bar)

Beckhoff

EtherCAT Terminal, 2-channel analog input, relative pressure, 0...7500 hPa (0…+7.5 bar)

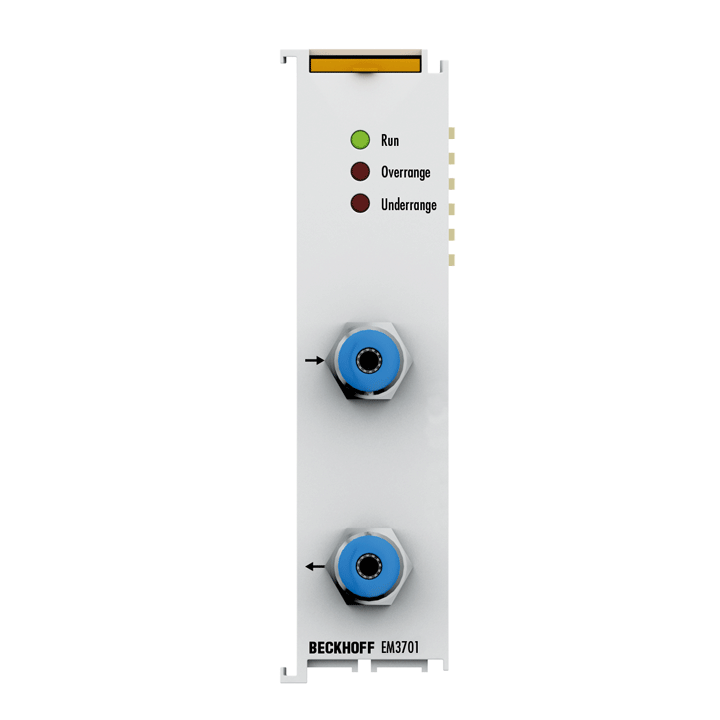

Beckhoff EM3701 – EtherCAT Terminal, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar)

Beckhoff

EtherCAT Terminal, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar)

Beckhoff ELM3002-0000 – EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps

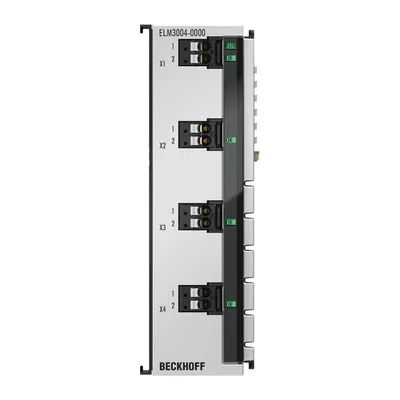

Beckhoff ELM3004-0000 – EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps

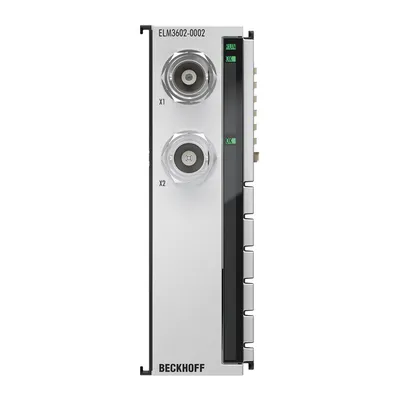

Beckhoff ELM3602-0002 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, BNC

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, BNC

Beckhoff ELM3604-0002 – EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps, BNC

Beckhoff

EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps, BNC

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Electrical isolation	Current consumption E-bus	Weight	Approvals/markings	Dimensions (W x H x D)
EL3612	500 V (E-bus/signal voltage)	typ. 190 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3602	500 V (E-bus/signal voltage)	typ. 190 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3312	500 V (E-bus/signal voltage)	200 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3311	500 V (E-bus/signal voltage)	200 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3403	1500 V	typ. 120 mA	approx. 75 g	CE, UL	12 mm x 100 mm x 68 mm
EL3356	—	typ. 210 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3314	500 V (E-bus/signal voltage)	typ. 200 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx, cFMus	12 mm x 100 mm x 68 mm
EL3751-0020	500 V (E-bus/signal voltage)	typ. 260 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3783	4500 V	typ. 260 mA	approx. 100 g	CE, UL	24 mm x 100 mm x 68 mm
EL3621-0020	500 V (E-bus/signal voltage)	typ. 190 mA	approx. 60 g	CE	12 mm x 100 mm x 68 mm
EL3751	500 V (E-bus/signal voltage)	typ. 260 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3773	2500 V	200 mA	approx. 75 g	CE, UL	12 mm x 100 mm x 68 mm
EL3692	1500 V (E-bus/field potential)	typ. 220 mA	approx. 55 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3632	—	typ. 220 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3681	1500 V (E-bus/field potential)	150 mA	approx. 70 g	CE	12 mm x 100 mm x 68 mm
EL3742	500 V (E-bus/signal voltage)	typ. 200 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx	12 mm x 100 mm x 68 mm
EL3702	500 V (E-bus/signal voltage)	typ. 200 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx, cFMus	12 mm x 100 mm x 68 mm
EM3712	—	typ. 70 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 52 mm
EM3702	—	typ. 60 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 52 mm
EM3701	—	typ. 70 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 52 mm
ELM3002-0000	—	typ. 330 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3004-0000	—	typ. 470 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3602-0002	—	typ. 460 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm
ELM3604-0002	—	typ. 650 mA	approx. 350 g	CE, UL	30 mm x 100 mm x 95 mm

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
