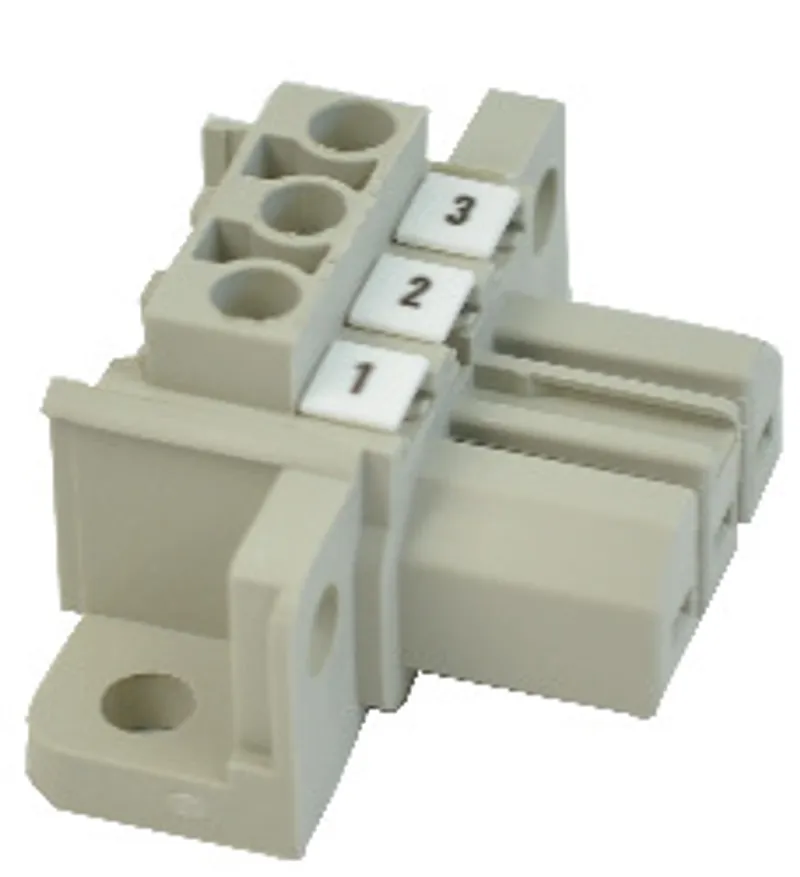

B&R 0TB7103.7010

Connector 230 VAC, 3-pin female

MPN: 0TB7103.7010
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB7103.7010?

Connector 230 VAC - 3-pin female - Screw clamp terminal block 4 mm²

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable

Terminal block

Connection cross section – AWG wire	12 to 22 AWG
Connection cross section – Wire end sleeves with plastic covering	0.5 to 4 mm²
Connection cross section – Single-wire	0.5 to 4 mm²
Connection cross section – Fine-stranded wires	0.5 to 4 mm²
Connection cross section – With wire end sleeve	0.5 to 4 mm²
Number of pins	3
Type of terminal block	Screw clamp terminal block variant
Pitch	7 mm
Tightening torque	0.5 Nm

Electrical properties

Nominal voltage	500 V
Nominal current	30 A / contact
Contact resistance	1.80 mΩ
