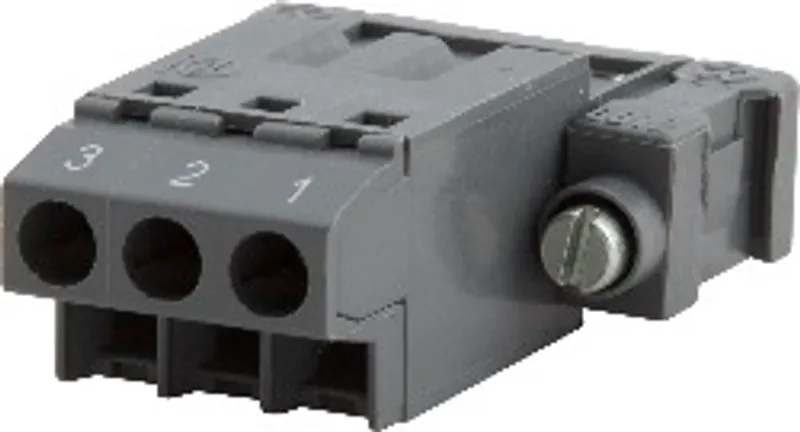

B&R 0TB103.3
Accessory terminal block, 3-pin male
- MPN
- 0TB103.3
- Category
- Terminal blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0TB103.3?
Accessory terminal block, 3-pin male, screw clamp terminal block 1.5 mm², protected against vibration by the screw flange
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
Terminal block
| Connection cross section – AWG wire | 26 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 1.50 mm² |
| Connection cross section – Single-wire | 0.20 to 2.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.20 to 1.50 mm² |
| Note | Protected against vibration by the screw flange ; Nominal data per UL |
| Number of pins | 3 (male) |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 5.08 mm |
| Wire stripping length | 13 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 10 A / contact (note: The respective limit data of the I/O modules must be taken into account!) |
| Contact resistance | ≤5 mΩ |
