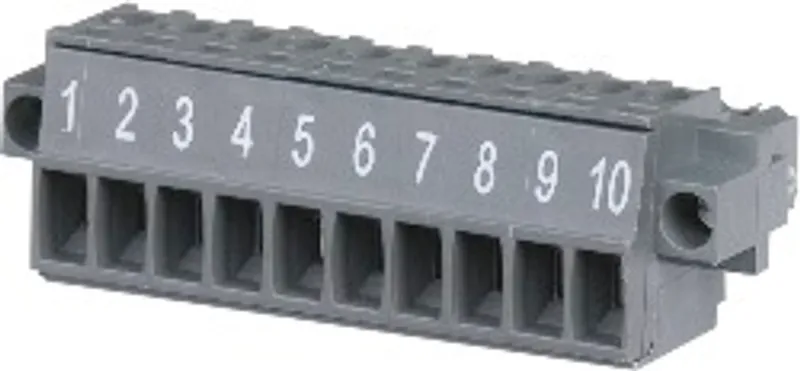

B&R 0TB1110.8010
The single-row, 10-pin 0TB1110 terminal block is to…
- MPN
- 0TB1110.8010
- Category
- Terminal blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 0TB1110.8010?
The single-row, 10-pin 0TB1110 terminal block is used to connect to I/O modules.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Terminal block
| Connection cross section – AWG wire | 28 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 1.50 mm² |
| Connection cross section – Single-wire | 0.20 to 1.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.20 to 1.50 mm² |
| Note | Protected against vibration by the screw flange, nominal data per UL |
| Number of pins | 10 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
| Wire stripping length | 6 mm |
| Tightening torque | 0.2 to 0.25 Nm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 10 A / contact (note: The respective limit data of the I/O modules must be taken into account!) |
| Contact resistance | ≤4.2 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
Certificates (1)
0TB1110.8010: frequently asked questions
When can 0TB1110.8010 be shipped?
0TB1110.8010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB1110.8010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB1110.8010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1110.8010, subject to availability and destination.
