B&R 0TB1102.2100-01 – Accessory terminal block, 2-pin
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB1102.2100-01 be shipped?
0TB1102.2100-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB1102.2100-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB1102.2100-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1102.2100-01, subject to availability and destination.
Accessory terminal block, 2-pin, push-in terminal block 1.5 mm²
Specifications
General information
| Certifications – CE | In preparation |
| Certifications – UKCA | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
Terminal block
| Connection cross section – AWG wire | 28 - 16 AWG |
| Connection cross section – Single-wire | 0.20 to 1.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Number of pins | 2 |
| Type of terminal block | Push-in terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
| Wire stripping length | 8 to 9 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | 8 A / contact |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Certificates (2)
| EU Declaration of conformity X20EDS410 | PDF · 635 KB · 1.00 (02/18/2026) |
| UK Declaration of Conformity_X20Edge | PDF · 249 KB · 2026_05 (05/05/2026) |
More B&R parts

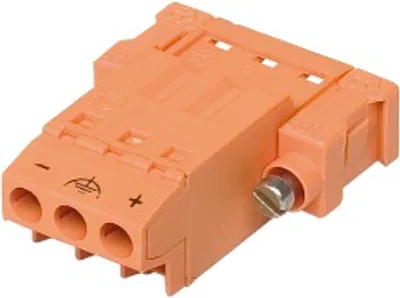

Available on requestB&R 0TB103.8 – 1-row 3-pin terminal block 0TB103 is used for the power…
Available on requestB&R 0TB103.9 – One-row 3-pin terminal block 0TB103.9x is used for the…
Available on requestB&R 0TB103.91 – One-row 3-pin terminal block 0TB103.9x is used for the…

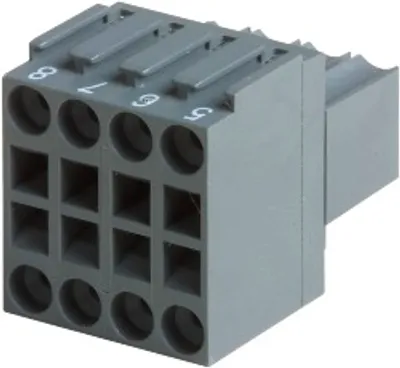

Available on requestB&R 0TB108.91 – Accessory terminal block, 2x4 pins, cage clamp 1,0 qmm
