IWLAN antennas Parts
Compare IWLAN antennas
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | radiating angle of the antenna — in the 5 GHz frequency band / horizontal | radiating angle of the antenna — in the 5 GHz frequency band / vertical | protection class IP | height | net weight |
|---|---|---|---|---|---|

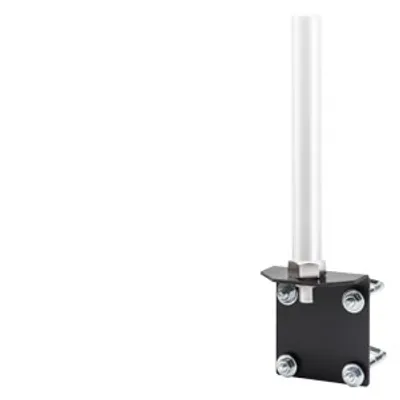

| 6GK5795-6MP00-0AA0 | 360° | 15° | IP65/67 | 367 mm; incl. bracket | 140 g |

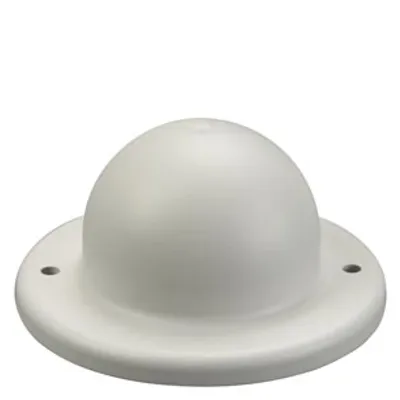

| 6GK5795-6MN10-0AA6 | 150° | — | IP65; with correct installation | 43 mm | 300 g |

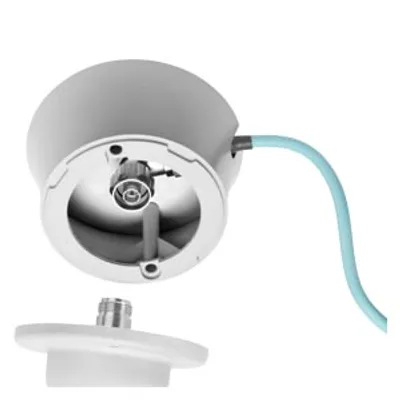

| 6GK5795-6MN01-0AA6 | — | — | IP20 | — | 30 g |

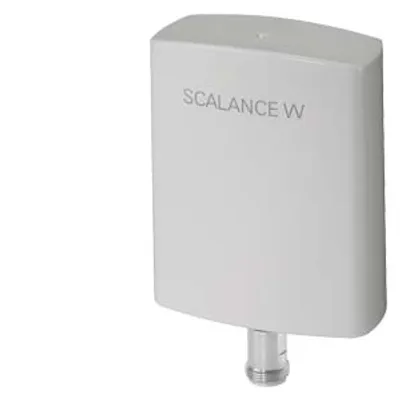

| 6GK5795-6DC00-0AA0 | 55° | 55° | IP66/67 | 101 mm | 110 g |

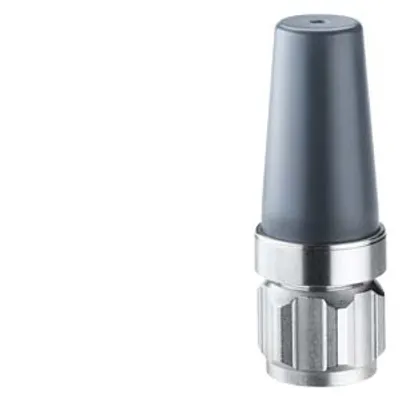

| 6GK5795-4MX00-0AA0 | 360° | — | IP68/IP69K | 55 mm | 50 g |

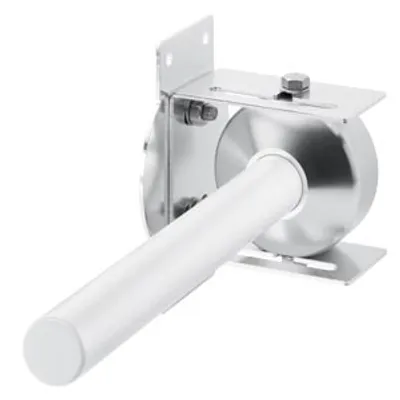

| 6GK5793-8DL00-0AA0 | 30° | 30° | IP66 | 283 mm; incl. bracket | 520 g |
| 6GK5793-8DK00-0AA0 | 9° | 9° | IP67 | 371 mm | 2500 g |

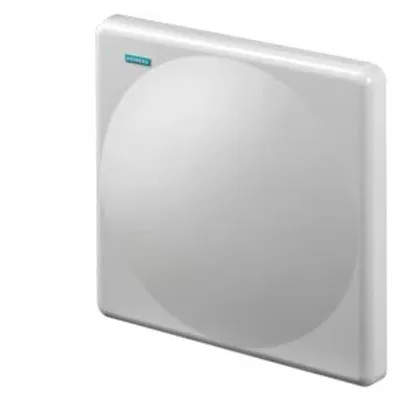

| 6GK5793-8DJ00-0AA0 | 17° | 17° | IP67 | 190 mm | 700 g |

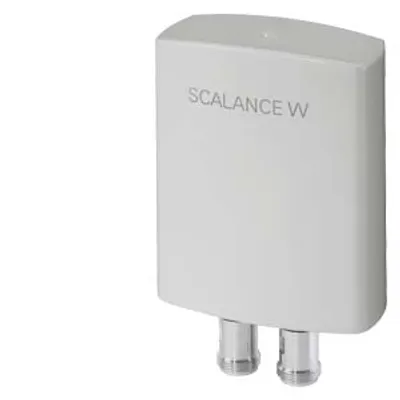

| 6GK5793-6DG00-0AA0 | 70° | 60° | IP66/67 | 101 mm | 110 g |

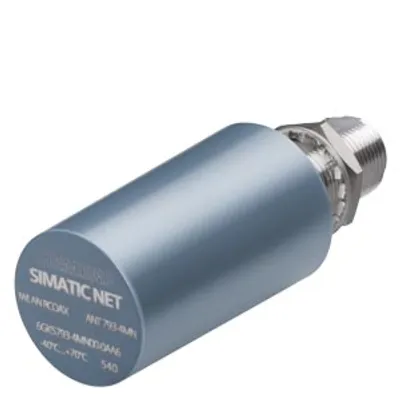

| 6GK5793-4MN00-0AA6 | 360° | 40° | IP65 | 78.7 mm | 65 g |
Common to all listed parts
| impedance | 50 Ω |
| certificate of suitability — RoHS conformity | Yes |
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
