Siemens 6GK5793-4MN00-0AA6

ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl

MPN: 6GK5793-4MN00-0AA6
Category: IWLAN antennas

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5793-4MN00-0AA6?

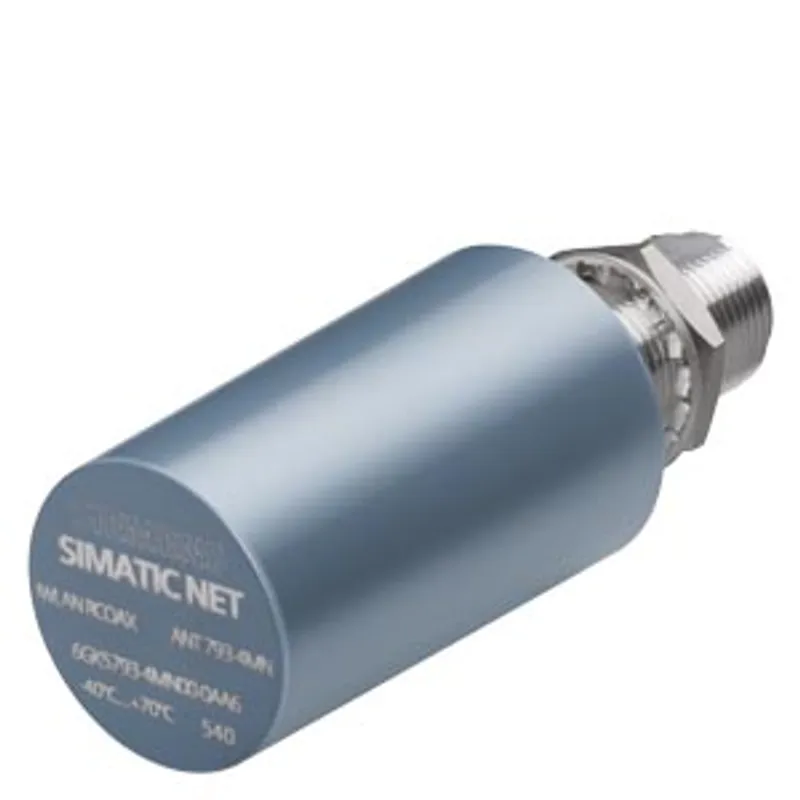

ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl. N-female plug IP65 (-40-+70 °C), 5 GHz.

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5793-4MN00-0AA6

radio frequencies

type of wireless network / is supported	WLAN
operating frequency — for WLAN in 5 GHz frequency band 1	5.15 ... 5.85 GHz

electrical data

antenna gain compared to spherical radiator — with linear radiation	maximum antenna gain
antenna gain compared to spherical radiator — of the WLAN antenna / in the 5 GHz frequency band	6 dB
impedance	50 Ω
polarization	vertical (lambda 5/8 characteristic)
radiation characteristic	omnidirectional
standing wave ratio (VSWR) / maximum	2
radiating angle of the antenna — in the 5 GHz frequency band / horizontal	360°
radiating angle of the antenna — in the 5 GHz frequency band / vertical	40°
number of electrical connections / of the antenna	1
type of electrical connection / of the antenna	N-Connector
design of plug-in connection	female
angle of inclination / downward / maximum	0°

mechanical data

material — of outer shell

Polycarbonate

ambient conditions

ambient temperature — during operation	-40 ... +70 °C
ambient temperature — during storage	-40 ... +70 °C
ambient temperature — during transport	-40 ... +70 °C
protection class IP	IP65

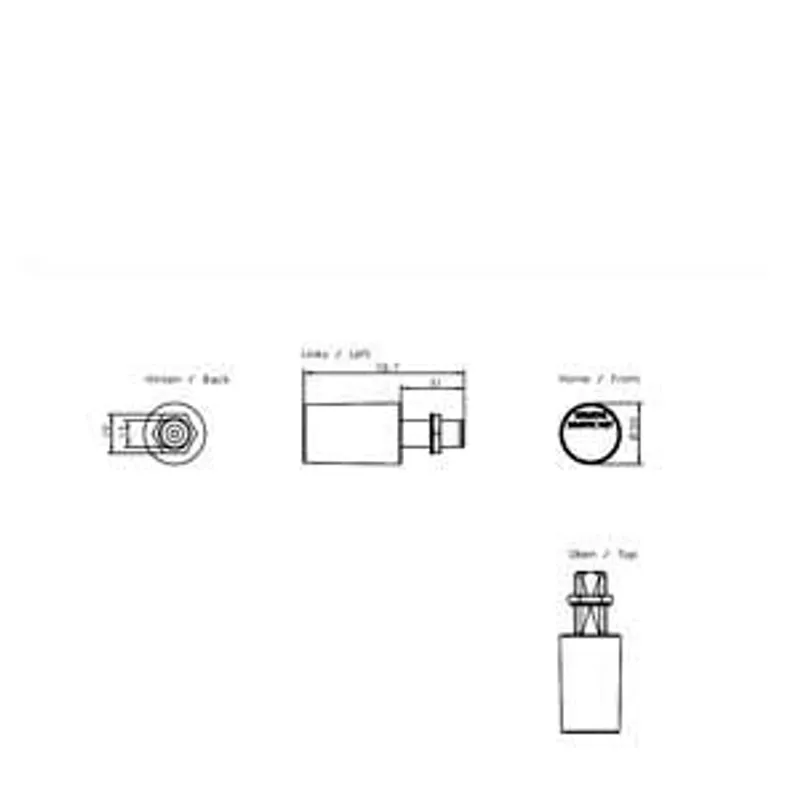

design, dimensions and weights

height	78.7 mm
diameter	30 mm
net weight	65 g

product features, product functions, product components / general

product feature / silicon-free

Yes

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
product conformity	UL 94-V1
wireless approval	Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
