Siemens 6GK5795-6MN10-0AA6
ANT795-6MN antenna with omnidirectional Characteristic; incl
- MPN
- 6GK5795-6MN10-0AA6
- Category
- IWLAN antennas
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5795-6MN10-0AA6?

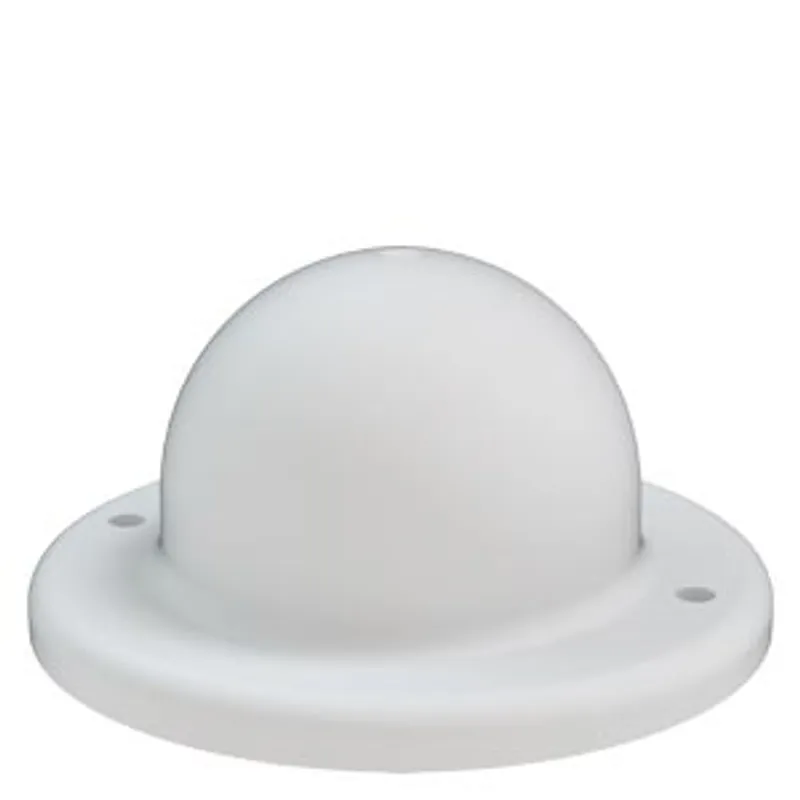

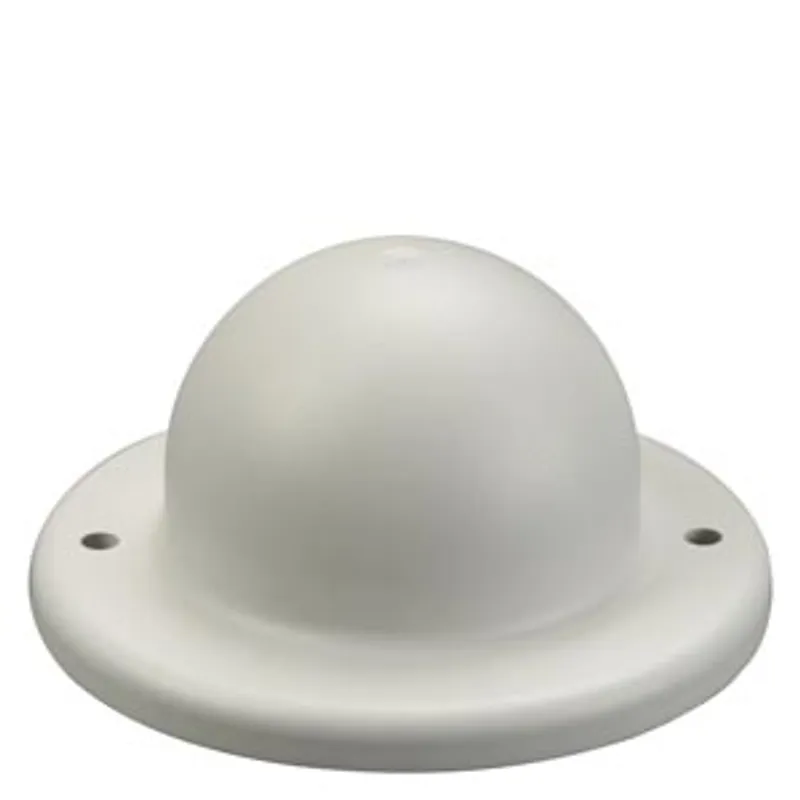

ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5795-6MN10-0AA6 |
radio frequencies
| type of wireless network / is supported | 5G private networks, WLAN |
| operating frequency / 1 | 2400 ... 2700 MHz |
| operating frequency / 2 | 3400 ... 3800 MHz |
| operating frequency / 3 | 4900 ... 5925 MHz |
| operating frequency / 4 | 5925 ... 7125 MHz |
| operating frequency — for WLAN in 2.4 GHz frequency band | 2.4 ... 2.7 GHz |
| operating frequency — for WLAN in 5 GHz frequency band 1 | 4.9 ... 5.92 GHz |
electrical data
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 1 / typical | 6 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 2 / typical | 6 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 3 / typical | 8 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 4 / typical | 8 dB |
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna | take the antenna diagram into account regarding the horizontal beam angle |
| radiating angle of the antenna — horizontal | 360° |
| radiating angle of the antenna — in the 5 GHz frequency band / horizontal | 150° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
mechanical data
| material — of outer shell | Polycarbonate |
ambient conditions
| ambient temperature — during operation | -40 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| protection class IP | IP65; with correct installation |
| wind load / maximum | 10 N; at 160 km/h |

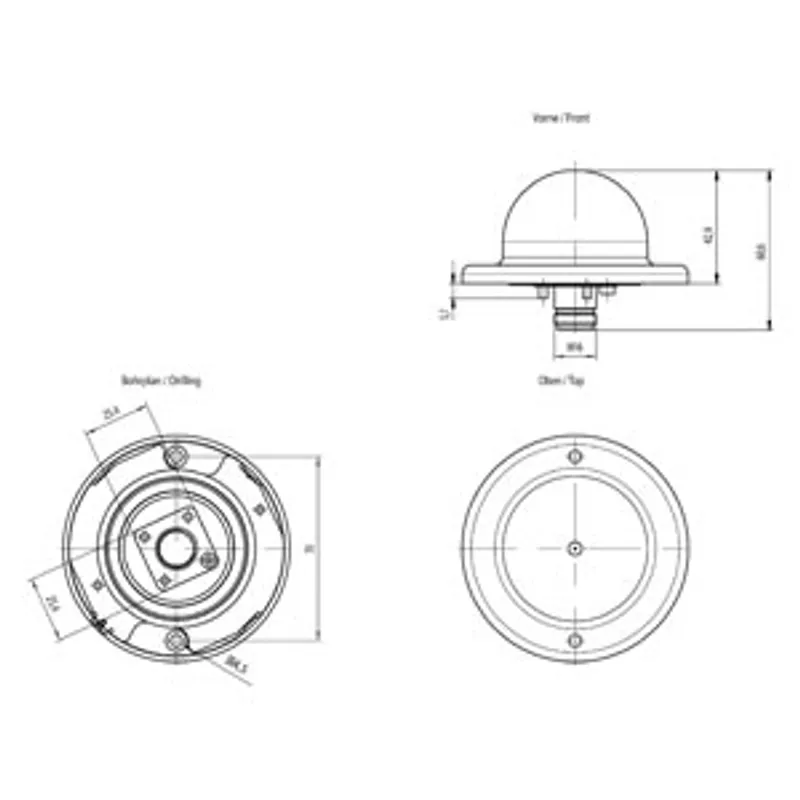

design, dimensions and weights
| width | 86 mm |
| height | 43 mm |
| depth | 86 mm |
| net weight | 300 g |
| fastening method — mast mounting | No |
| fastening method — flat roof mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — roof mounting | Yes |
| fastening method — directly on the device | No |
product features, product functions, product components / general
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability | Railway application in accordance with NF-F-16-101, NF-F-16-102 |
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — railway application in accordance with EN 50155 | Yes |
| certificate of suitability — fire protection in accordance with EN 45545-2 | Yes |
| Marine classification association / Korean Register of Shipping (KRS) | Yes |
| product conformity | UL 94-V0 |
| wireless approval | Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: WLAN country approval | https://www.siemens.com/wireless-approvals |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5795-6MN10-0AA6: frequently asked questions
When can 6GK5795-6MN10-0AA6 be shipped?
6GK5795-6MN10-0AA6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5795-6MN10-0AA6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5795-6MN10-0AA6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5795-6MN10-0AA6, subject to availability and destination.
