Siemens 6GK5793-8DK00-0AA0

ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female…

MPN: 6GK5793-8DK00-0AA0
Category: IWLAN antennas

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5793-8DK00-0AA0?

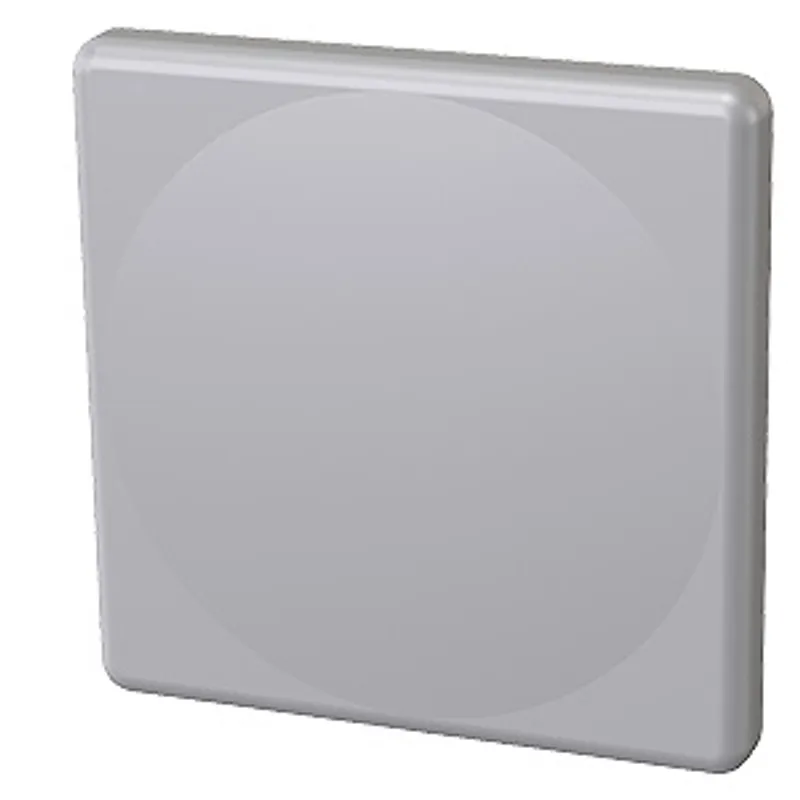

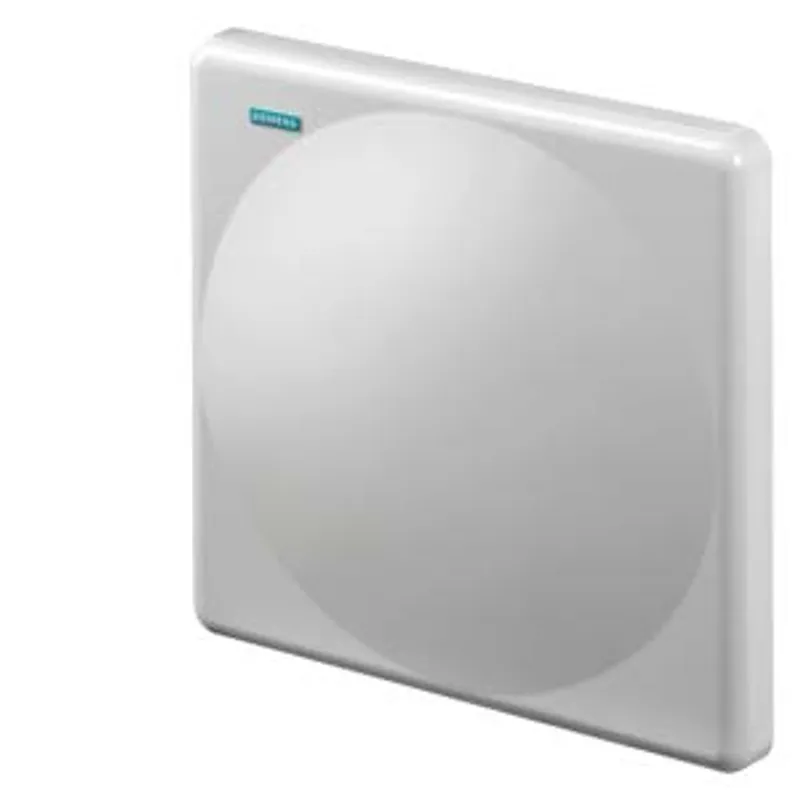

ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5793-8DK00-0AA0

radio frequencies

type of wireless network / is supported	WLAN
operating frequency — for WLAN in 5 GHz frequency band 1	5.15 ... 5.875 GHz

electrical data

antenna gain compared to spherical radiator — of the WLAN antenna / in the 5 GHz frequency band	23 dB
impedance	50 Ω
polarization	Dual linear vertical-horizontal
radiation characteristic	directional
standing wave ratio (VSWR) / maximum	1.7
radiating angle of the antenna — in the 5 GHz frequency band / horizontal	9°
radiating angle of the antenna — in the 5 GHz frequency band / vertical	9°
number of electrical connections / of the antenna	2
type of electrical connection / of the antenna	N-Connector
design of plug-in connection	female
angle of inclination / downward / maximum	0°
crosstalk attenuation / between the antenna connections	40 dB
front-to-back ratio	35 dB

mechanical data

material — of outer shell

Polycarbonate

ambient conditions

ambient temperature — during operation	-45 ... +70 °C
ambient temperature — during storage	-45 ... +70 °C
ambient temperature — during transport	-45 ... +70 °C
protection class IP	IP67
wind load / maximum	389 N; frontal at 220 km/h

design, dimensions and weights

width	371 mm
height	371 mm
depth	40 mm
net weight	2500 g
fastening method — mast mounting	Yes
fastening method — wall mounting	Yes
fastening method — roof mounting	No
fastening method — directly on the device	No

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
wireless approval	Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
