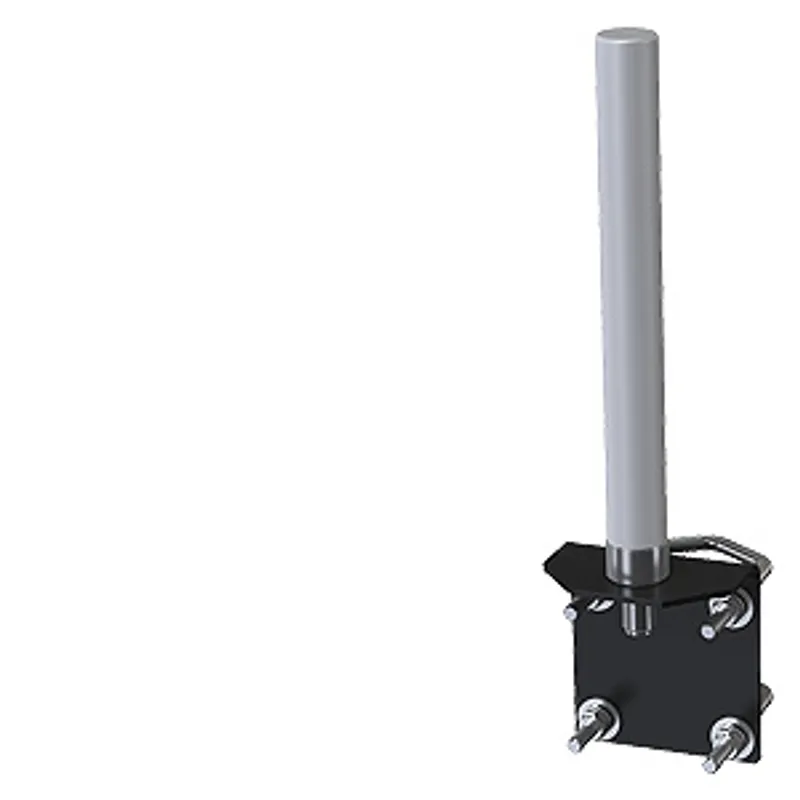

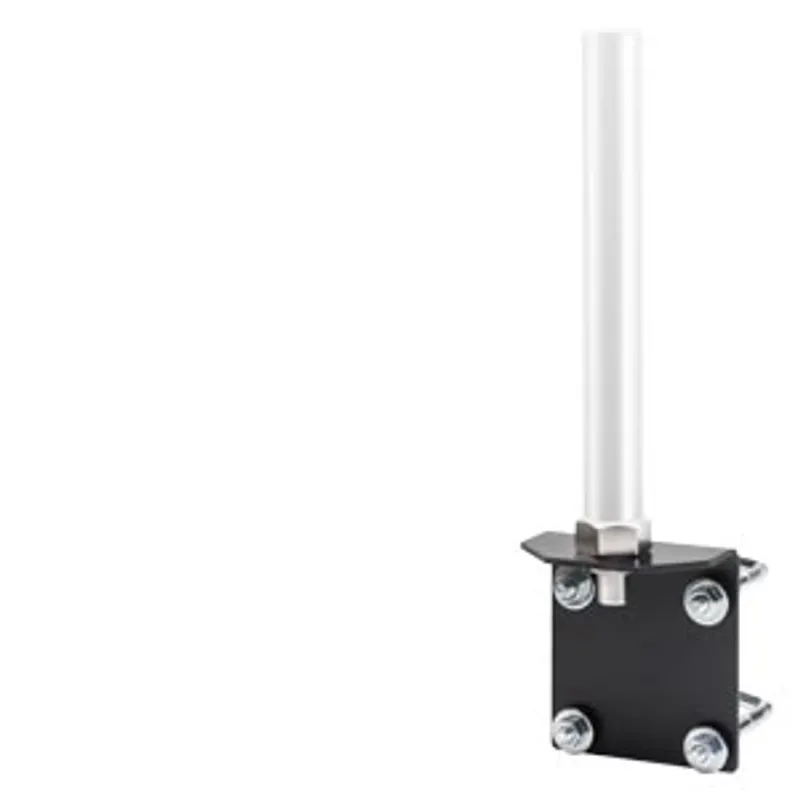

Siemens 6GK5795-6MP00-0AA0
ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl
- MPN
- 6GK5795-6MP00-0AA0
- Category
- IWLAN antennas
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5795-6MP00-0AA0?
ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5795-6MP00-0AA0 |
radio frequencies
| type of wireless network / is supported | WLAN |
| operating frequency — for WLAN in 2.4 GHz frequency band | 2.4 ... 2.5 GHz |
| operating frequency — for WLAN in 5 GHz frequency band 1 | 4.94 ... 5.925 GHz |
electrical data
| antenna gain compared to spherical radiator — of the WLAN antenna / in the 2.4 GHz frequency band | 5 dB |
| antenna gain compared to spherical radiator — of the WLAN antenna / in the 5 GHz frequency band | 7 dB |
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna | take the antenna diagram into account regarding the horizontal beam angle |
| radiating angle of the antenna — in the 2.4 GHz frequency band / horizontal | 360° |
| radiating angle of the antenna — in the 2.4 GHz frequency band / vertical | 25° |
| radiating angle of the antenna — in the 5 GHz frequency band / horizontal | 360° |
| radiating angle of the antenna — in the 5 GHz frequency band / vertical | 15° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
mechanical data
| material — of outer shell | UV-resistant white plastic |
| color | white |
ambient conditions
| ambient temperature — during operation | -40 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| protection class IP | IP65/67 |
| wind load / maximum | 19.6 N |
| resistance to salt-laden atmosphere / conformity according to EN 60068-2-52 | Yes; Severity 1 |

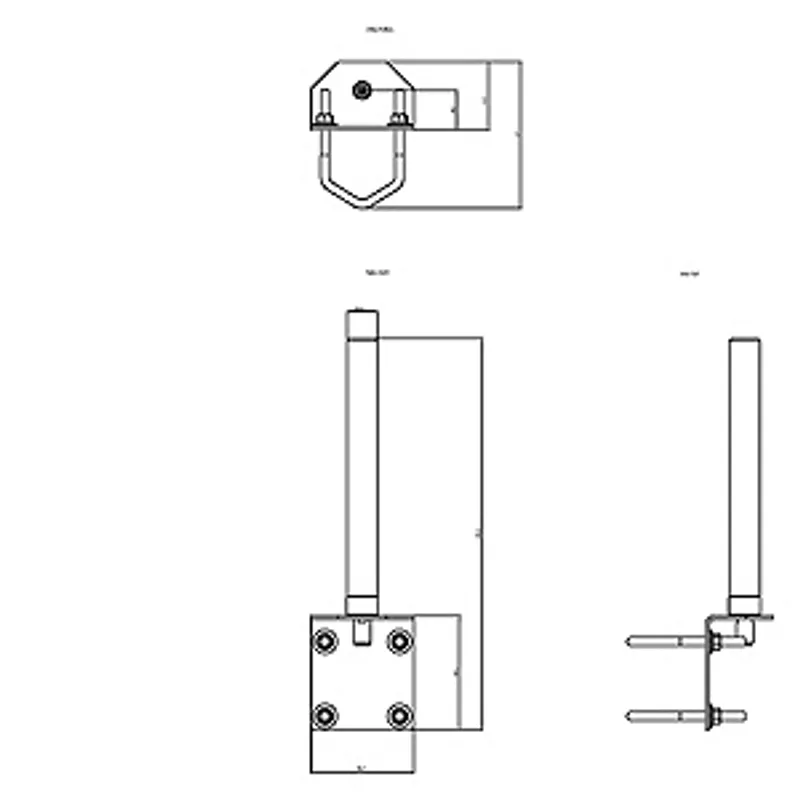

design, dimensions and weights
| width | 97 mm |
| height | 367 mm; incl. bracket |
| depth | 64 mm |
| diameter | 28.6 mm |
| net weight | 140 g |
| fastening method — mast mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — roof mounting | No |
| fastening method — directly on the device | No |
product features, product functions, product components / general
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| product conformity | UL 94-HB |
| wireless approval | Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: WLAN country approval | https://www.siemens.com/wireless-approvals |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5795-6MP00-0AA0: frequently asked questions
When can 6GK5795-6MP00-0AA0 be shipped?
6GK5795-6MP00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5795-6MP00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5795-6MP00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5795-6MP00-0AA0, subject to availability and destination.
