What is the Siemens 6GK5793-6DG00-0AA0?

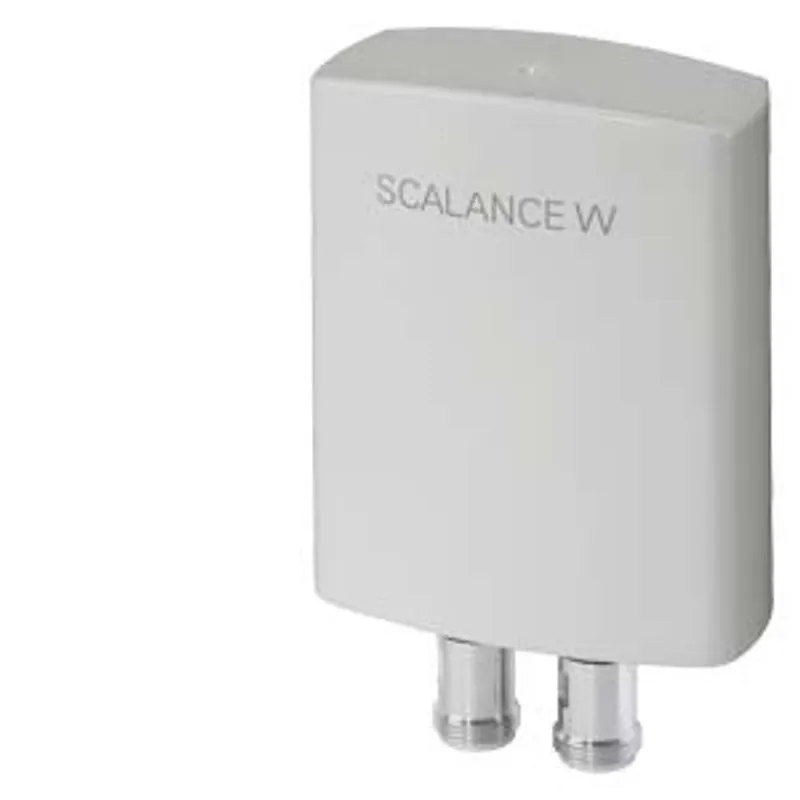

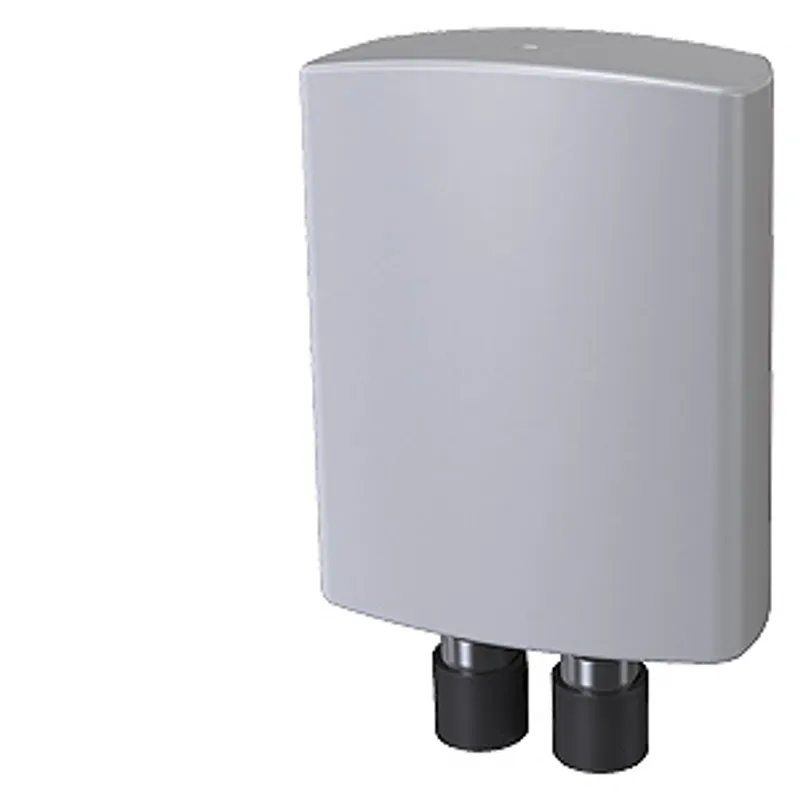

ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5793-6DG00-0AA0

radio frequencies

type of wireless network / is supported	WLAN
operating frequency — for WLAN in 5 GHz frequency band 1	5.15 ... 5.875 GHz

electrical data

antenna gain compared to spherical radiator — of the WLAN antenna / in the 5 GHz frequency band	9 dB
impedance	50 Ω
polarization	dual linear +/- 45° slant
radiation characteristic	Sector antenna
standing wave ratio (VSWR) / maximum	2
radiating angle of the antenna — in the 5 GHz frequency band / horizontal	70°
radiating angle of the antenna — in the 5 GHz frequency band / vertical	60°
number of electrical connections / of the antenna	2
type of electrical connection / of the antenna	N-Connector
design of plug-in connection	female
angle of inclination / downward / maximum	0°
crosstalk attenuation / between the antenna connections	20 dB
front-to-back ratio	20 dB

mechanical data

material — of outer shell

Lexan EXL 9330

ambient conditions

ambient temperature — during operation	-40 ... +80 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
protection class IP	IP66/67
wind load / maximum	15 N; frontal at 160 km/h

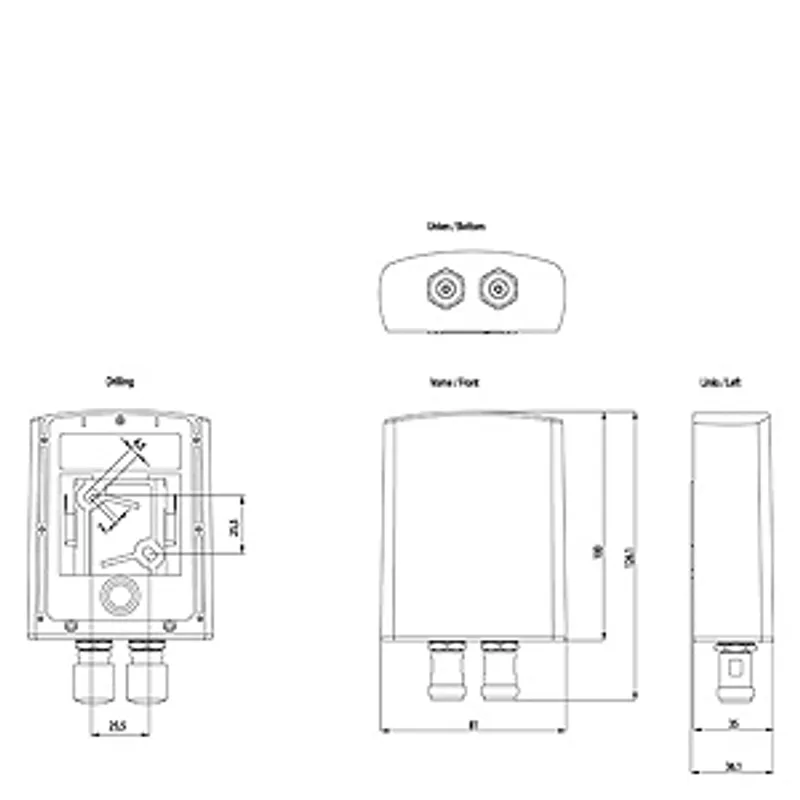

design, dimensions and weights

width	80 mm
height	101 mm
depth	35 mm
net weight	110 g
fastening method — mast mounting	Yes
fastening method — wall mounting	Yes
fastening method — roof mounting	No
fastening method — directly on the device	No

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
certificate of suitability — railway application in accordance with EN 50155	Yes
certificate of suitability — fire protection in accordance with EN 45545-2	Yes
wireless approval	Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com
