Stepper motors without encoder Parts

B&R

2-phase hybrid stepper motor, 56.4 mm flange, length 45 mm

B&R

2-phase hybrid stepper motor, 56.4 mm flange

B&R

2-phase hybrid stepper motor, 56.4 mm flange

B&R

2-phase hybrid stepper motor, 60 mm flange, length 51.8 mm

B&R

2-phase hybrid stepper motor, 60 mm flange, length 62 mm

B&R

2-phase hybrid stepper motor, 60 mm flange, length 93.3 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 66 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 98 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 98 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 98 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 130 mm

B&R

2-phase hybrid stepper motor, 87.1 mm flange, length 130 mm

Compare Stepper motors without encoder

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Resistance/Phase – Series wiring	Inductance/Phase – Series wiring	Inductance/Phase – Parallel wiring	Stall torque	Detent torque

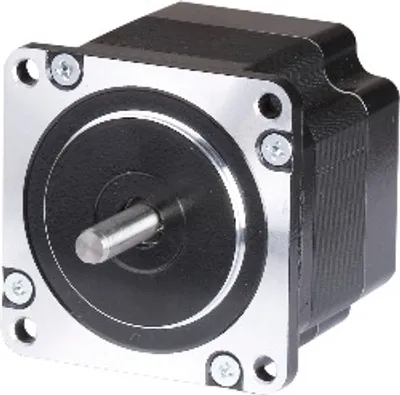

80MPD1.300S000-01	1.2 Ω	3.6 mH	0.9 mH	0.8 Nm	<30 mNm

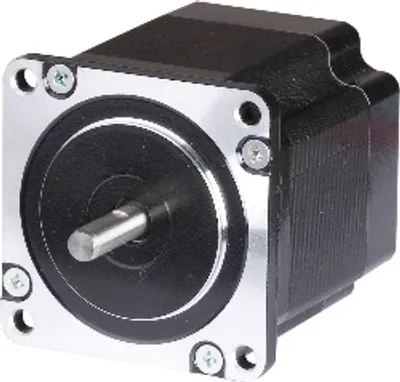

80MPD3.300S000-01	1.6 Ω	5.2 mH	1.3 mH	1.25 Nm	<50 mNm

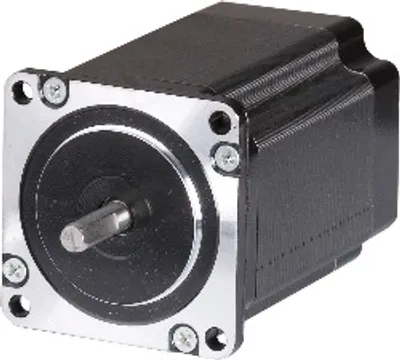

80MPD5.300S000-01	2.4 Ω	8.8 mH	2.2 mH	2.2 Nm	<90 mNm

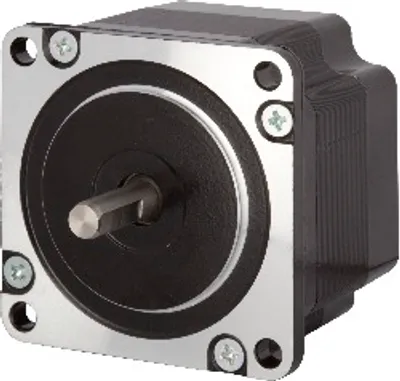

80MPF1.250S000-01	1.28 Ω	3.4 mH	0.85 mH	0.8 Nm	<35 mNm

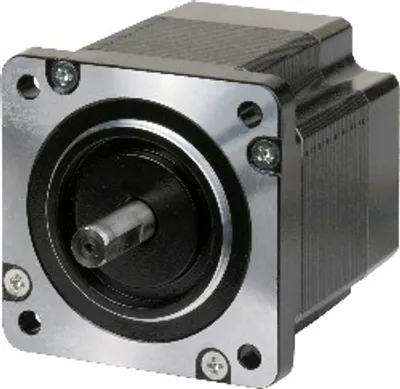

80MPF3.250S000-01	1.52 Ω	5.6 mH	1.4 mH	1.2 Nm	<45 mNm

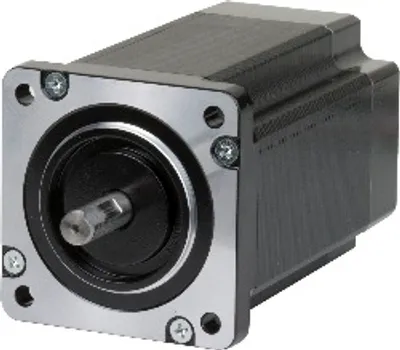

80MPF5.250S000-01	2.4 Ω	11.2 mH	2.8 mH	2.5 Nm	<75 mNm

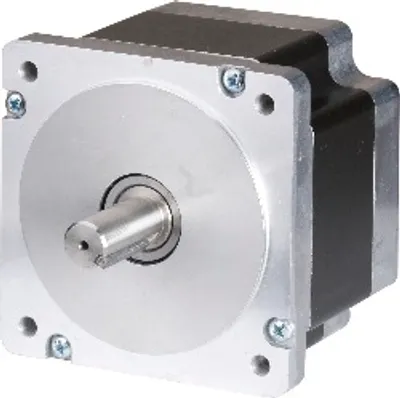

80MPH1.300S000-01	1.7 Ω	12.9 mH	3.2 mH	2.9 Nm	<160 mNm
80MPH3.300S000-01	2.2 Ω	17.3 mH	4.3 mH	5.5 Nm	<210 mNm

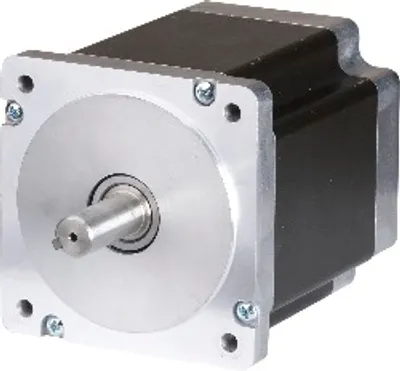

80MPH4.300S000-01	2.2 Ω	17.3 mH	4.3 mH	6.3 Nm	<320 mNm
80MPH4.500S000-01	0.9 Ω	5.6 mH	1.4 mH	6.3 Nm	<320 mNm
80MPH6.101S000-01	-	-	1.6 mH	9.3 Nm	<420 mNm

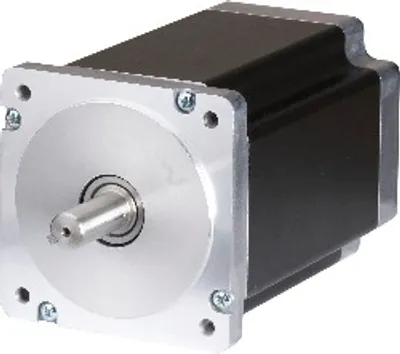

80MPH6.300S000-01	2.7 Ω	20.0 mH	5.0 mH	9.3 Nm	<420 mNm

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Wiring – Parallel	true
Stepping angle	1.8°
Max. surface temperature	100°C
Cable length	300 mm
Insulation class	B (130°C)
