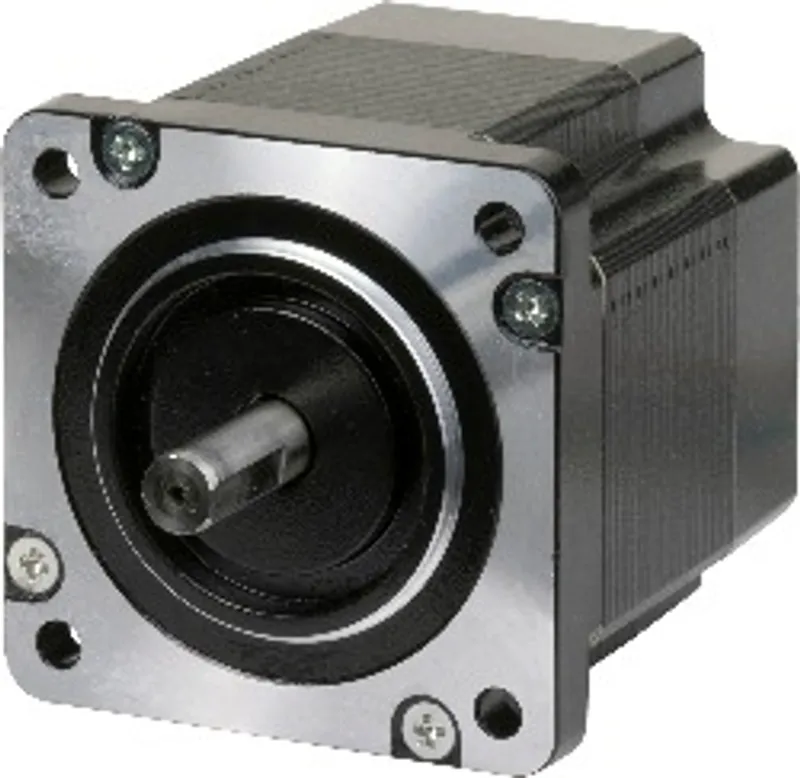

B&R 80MPF3.250S000-01
2-phase hybrid stepper motor, 60 mm flange, length 62 mm
- MPN
- 80MPF3.250S000-01
- Category
- Stepper motors without encoder
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPF3.250S000-01?
2-phase hybrid stepper motor, 60 mm flange, length 62 mm, 2.5 A serial / 5 A parallel, 1.7 Nm holding torque, 1.2 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 60 mm, length 62 mm |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
Specific motor data
| Wiring – Serial | true |
| Wiring – Parallel | true |
| Current – Series wiring | 2.5 A |
| Current – Parallel wiring | 5 A |
| Resistance/Phase – Series wiring | 1.52 Ω |
| Resistance/Phase – Parallel wiring | 0.38 Ω |
| Inductance/Phase – Series wiring | 5.6 mH |
| Inductance/Phase – Parallel wiring | 1.4 mH |
| Stall torque | 1.2 Nm |
| Holding torque | 1.7 Nm (note: Measured with serial wiring) |
| Detent torque | <45 mNm |
| Rotor inertia | 440 gcm 2 |
General motor data
| Protection class | IP30 |
| Stepping angle | 1.8° |
| Max. surface temperature | 100°C |
| Average period of operation between failures | 21,000 hours |
| Cable length | 300 mm |
| Cable cross section | 22 AWG |
| Shaft type | Flat-sided shaft (D-cut) |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 500 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Max. radial load | 75 N (note: Measured in the middle of the shaft) |
| Max. axial load | The permissible axial load is not permitted to be greater than the motor mass. |
| Weight | 880 g |
| Length | 62 mm |
Accessories
Optional accessories (1)
| 80XMPDXRE.W1-10 | Accessories — IP expansion and wiring clamp for stepper motors in the 80MPD and 80MPF series, IP65 for 80MPD motors and 80MPF motors, 10 units per package |
