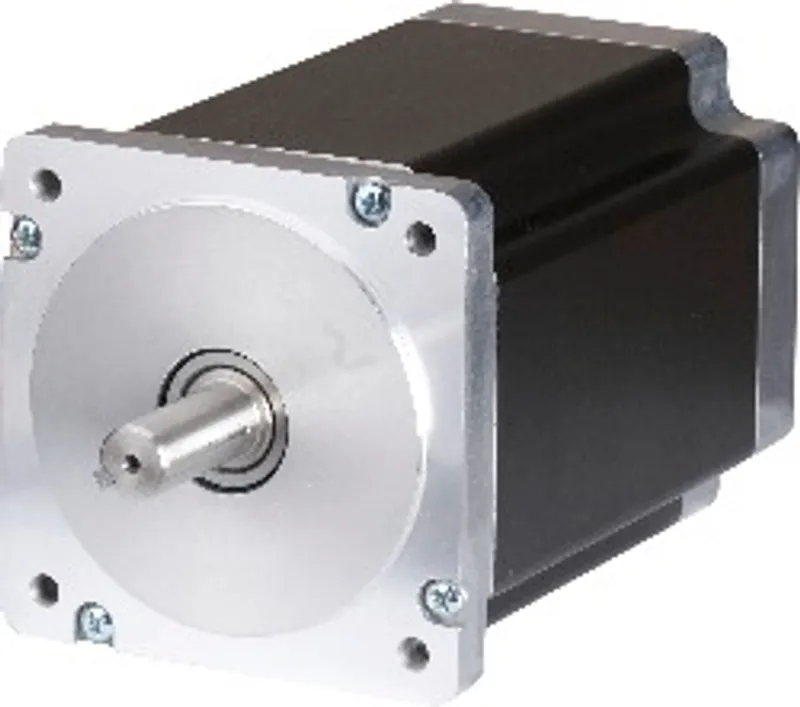

B&R 80MPH6.300S000-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stepper motors without encoder |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.2 kg |
Shipping & availability
When can 80MPH6.300S000-01 be shipped?
80MPH6.300S000-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80MPH6.300S000-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80MPH6.300S000-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80MPH6.300S000-01, subject to availability and destination.
2-phase hybrid stepper motor, 87.1 mm flange, length 130 mm, 3 A serial / 6 A parallel, 13.6 Nm holding torque, 9.3 Nm stall torque
Specifications
Specifications
| Stepper motor | Stepper motor flange size 87.1 mm, length 130 mm |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cURus E136406 Incomplete rotating machines and rotating machine parts - Component |
| Serial | true |
| Parallel | true |
| Series wiring | 20.0 mH |
| Parallel wiring | 5.0 mH |
| Stall torque | 9.3 Nm |
| Holding torque | 13.6 Nm |
| Detent torque | <420 mNm |
| Rotor inertia | Approx. 3.92 kgcm2 |
| Protection class | IP40 |
| Stepping angle | 1.8° |
| Max. surface temperature | 100°C |
| Average period of operation between failures | 20,000 hours |
| Cable length | 300 mm |
| Cable cross section | 22 AWG, UL 3266 |
| Shaft type | With key |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 1776 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Max. radial load | 290 N |
| Max. axial load | 225 N |
| Weight | 4.2 kg |
| Length | 130 mm |
