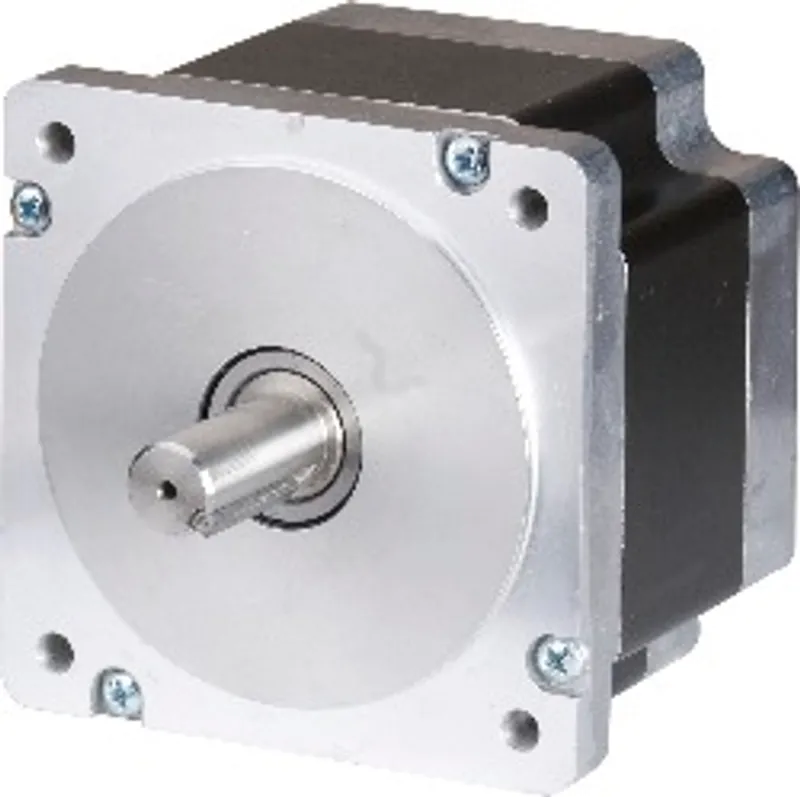

B&R 80MPH1.300S000-01
2-phase hybrid stepper motor, 87.1 mm flange, length 66 mm
- MPN
- 80MPH1.300S000-01
- Category
- Stepper motors without encoder
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPH1.300S000-01?
2-phase hybrid stepper motor, 87.1 mm flange, length 66 mm, 3 A serial / 6 A parallel, 4.0 Nm holding torque, 2.9 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 87.1 mm, length 66 mm |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cURus E136406; Incomplete rotating machines and rotating machine parts - Component |
Specific motor data
| Wiring – Serial | true |
| Wiring – Parallel | true |
| Current – Series wiring | 3 A |
| Current – Parallel wiring | 6 A |
| Resistance/Phase – Series wiring | 1.7 Ω |
| Resistance/Phase – Parallel wiring | 0.4 Ω |
| Inductance/Phase – Series wiring | 12.9 mH |
| Inductance/Phase – Parallel wiring | 3.2 mH |
| Stall torque | 2.9 Nm |
| Holding torque | 4.0 Nm (note: Measured with serial wiring) |
| Detent torque | <160 mNm |
| Rotor inertia | Approx. 1.31 kgcm 2 |
General motor data
| Protection class | IP40 |
| Stepping angle | 1.8° |
| Max. surface temperature | 100°C |
| Average period of operation between failures | 20,000 hours |
| Cable length | 300 mm |
| Cable cross section | 22 AWG, UL 3266 |
| Shaft type | With key |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 1776 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Max. radial load | 290 N (note: Measured in the middle of the shaft) |
| Max. axial load | 225 N |
| Weight | 1.8 kg |
| Length | 66 mm |
Accessories
Optional accessories (1)
| 80XMPHXRE.W1-10 | Accessories — IP expansion and wiring clamp for stepper motors in the 80MPH series, IP65, 10 units per package |
