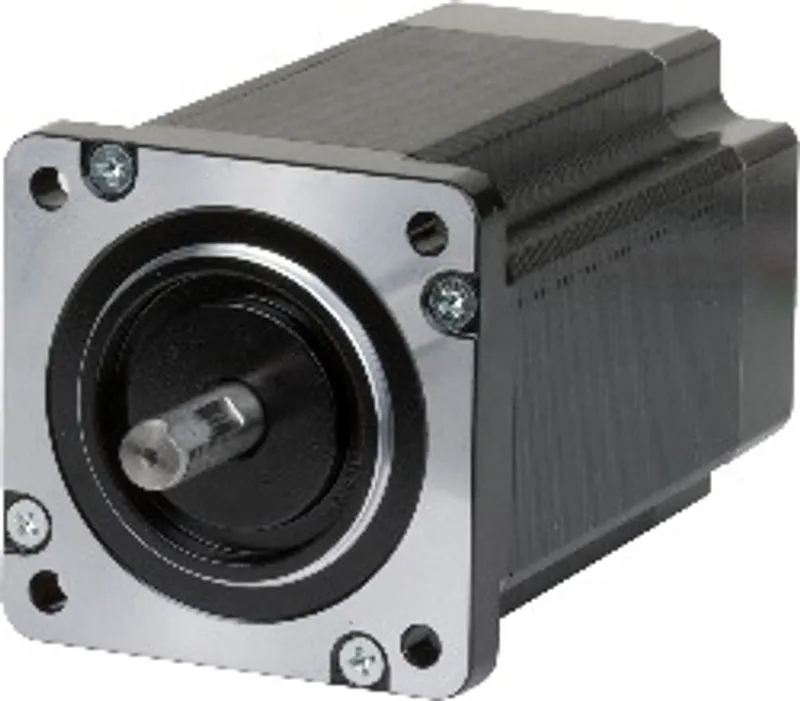

B&R 80MPF5.250S000-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stepper motors without encoder |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1400 kg |
Shipping & availability
When can 80MPF5.250S000-01 be shipped?
80MPF5.250S000-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80MPF5.250S000-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80MPF5.250S000-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80MPF5.250S000-01, subject to availability and destination.
2-phase hybrid stepper motor, 60 mm flange, length 93.3 mm, 2.5 A serial / 5 A parallel, 3.5 Nm holding torque, 2.5 Nm stall torque
Specifications
Specifications
| Stepper motor | Stepper motor flange size 60 mm, length 93.3 mm |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Serial | true |
| Parallel | true |
| Series wiring | 11.2 mH |
| Parallel wiring | 2.8 mH |
| Stall torque | 2.5 Nm |
| Holding torque | 3.5 Nm |
| Detent torque | <75 mNm |
| Rotor inertia | 920 gcm2 |
| Protection class | IP30 |
| Stepping angle | 1.8° |
| Max. surface temperature | 100°C |
| Average period of operation between failures | 21,000 hours |
| Cable length | 300 mm |
| Cable cross section | 22 AWG |
| Shaft type | Flat-sided shaft (D-cut) |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 500 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Max. radial load | 75 N |
| Max. axial load | The permissible axial load is not permitted to be greater than the motor mass. |
| Weight | 1,400 g |
| Length | 93.3 mm |
